3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC

3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC
3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC

Large Image :  3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO320JY-7178AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD3.80 - USD4.60, Price can be Negotiated based on bulk order quantity.
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC

Description
Product: 3.2" Inch TFT LCD Display Resolution: 240x320
Viewing Direction: 12 O'clock Interface: 4-line SPI
Outline Dimension: 54.0(W)x77.4(H)x2.4(T)(mm) Active Area: 48.60(W)x64.80 (H) (mm)
Pin Number: 18 Pins Connection: FPC Plugging
Surface Luminance: 350 Cd/m2 (nits) LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: Rohs & Reach Compliant
Highlight:

3.2 Inch SPI TFT LCD Display

,

18 Pin TFT LCD Display

,

240*320 Pixels TFT LCD Display



Product Introduction



The 3.2-inch SPI TFT display is a color TFT LCD screen with a 240 x 320 dot matrix SPI interface, featuring rich color display and high resolution, providing users with a clear visual experience. Suitable for various application scenarios, such as industrial equipment, handheld detection instruments, beauty devices, smart homes, and consumer electronics.



This 3.2-inch SPI TFT SFTO320JY-7178AN module has a built-in ST7789V driver IC; It supports a 4-wire SPI interface and has a power supply voltage (VDD) range of 2.8V to 3.3V. It can operate at temperatures ranging from -20 ℃ to+70 ℃, with a storage temperature range of -30 ℃ to+80 ℃.



On the basis of this 3.2-inch SPI TFT product, Saef Technology provide differentiated customized solutions, including but not limited to:
Backlight customization: Adjust the type and brightness of the backlight according to product requirements.
Interface customization: Change the structure and interface of the LCD screen cable to adapt to specific hardware platforms.
Touch screen integration: Optional resistive or capacitive touch screens are available to enhance user interaction experience.





Features



Product: 3.2" Inch TFT LCD Display
Model number SFTO320JY-7178AN
Resolution: 240x320
Viewing Direction: 12 O'clock
Interface: 4-line SPI
Outline Dimension: 54.0(W)x77.4(H)x2.4(T)(mm)
Active Area: 48.60(W)x64.80 (H) (mm)
Pin Number: 18 Pins
Connection: FPC Plugging
Surface Luminance: 350 Cd/m2 (nits)
LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: Rohs & Reach Compliant





Outline Drawing

3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 0

3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 1

Electrical Maximum Ratings



Item

Symbol

Min

Max

Unit

Note

Supply voltage(VDDI)

V 1.8 3.3 V

-

Supply voltage(VDD)

V 2.8 3.3 V

-

Operating temperature

TOPR -20 70

-

Storage temperature

TSTR -30 80

-





Backlight Characteristics



Item

Symbol

Min

Typical

Max

Unit

LED module Forward voltage

VLED 2 .9 3.1 3.3 V

LED module current

ILED

-

90

-

mA

LCD Surface Luminance

LS 330 350

-

Cd/m2

LCM Surface brightness uniform

LD 80

-

-

%

LCD power dissipation

PLCD

-

0.32

-

W





Interface Pin Definition



PIN No.  Symbol  Description
1 GND

Ground

2

RESET

-This signal will reset the device and it must be applied to properly initialize the chip.

-Signal is active low.

3 SCL -This pin is used to be serial interface clock.

4

D/C

- Display data/command selection pin in 4-line serial interface.

5

CSX

-Chip selection pin, Low enable. High disable.

6

SDA

SPI interface input pin. -The data is latched on the rising edge of the SCL signal. -If not used, please fix this pin at VDDI or DGND level.

7

SDO

-SPI interface output pin. -The data is output on the falling edge of the SCL signal.

-If not used, let this pin open.

8 GND

Ground

9

VDD

Power Supply for Analog, Digital System and Booster Circuit.

10 LEDA

Anode of Backlight (2.9V-3.3V Typical:3.1V)

11 LEDK Cathode of Backlight
12 LEDK Cathode of Backlight
13 LEDK Cathode of Backlight
14 LEDK Cathode of Backlight
15 XL Touch panel Logical foot
16 YU Touch panel Logical foot
17 XR Touch panel Logical foot
18 YD Touch panel Logical foot





Product Image

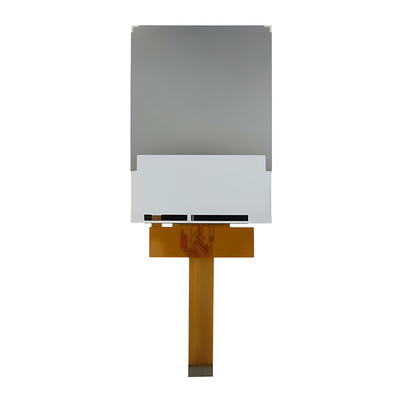

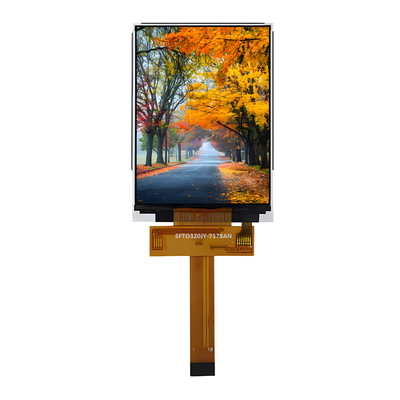

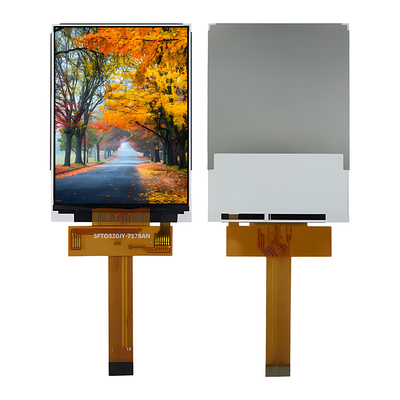

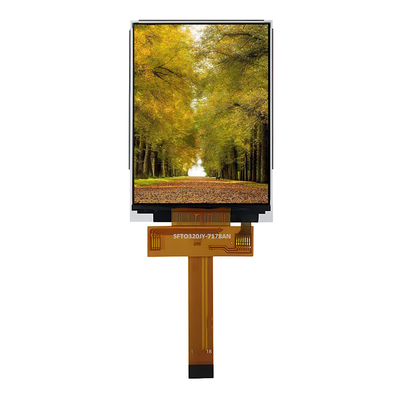

3.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 23.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 33.2 Inch SPI TFT LCD Display 240*320 Pixels ZIF FPC 18 Pin ST7789V/ILI9341 Driver IC 4
