2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface

2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface
2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface

Large Image :  2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO240JY-7182AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD1.60-USD1.80; Price is negotiable based on order quantity.
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface

Description
Product: 2.4 Inch IPS TFT LCD Resolution: 240*320 Pixel
Touch Screen: Without Viewing Direction: 12H
Interface: SPI Pin Number: 10 Pins (24pin Optional)
Connection: Plug-in Surface Luminance: 400 Cd/m2 (Customizable)
Driver IC: ST7789V LED Lifetime: 40,000 Hours
Operating Temp.: -20°C To +70°C Compliance: REACH & RoHS Compliant
Highlight:

2.4 Inch TFT LCD Display

,

240x320 Pixels TFT LCD Display

,

SPI Interface TFT LCD Display



Low Cost 2.4 inch QVGA TFT LCD Product Introduction

2.4-inch TFT display with a resolution of 240 × 320 pixels provides clear image display. Its driver IC is ST7789V and supports multiple interfaces and high color depth (262K color). This model SFTO240JY-7182AN has an SPI interface and can achieve a brightness of 400cd/m ², adapting to different lighting conditions. The product can operate between -20 ℃ and 70 ℃ and adapt to various environmental conditions. It can be stored between -30 ℃ and 80 ℃, ensuring that long-term storage will not affect its performance.



This 2.4-inch QVGA TFT display is widely used in various fields such as medical equipment, industrial control, smart homes, and car navigation. Their high brightness (up to 1000 nits) and contrast make them still clearly visible outdoors or in direct sunlight. Low cost is a major advantage of the 2.4-inch TFT 240 * 320 dot matrix product SFTO240JY-7182AN, making it an ideal choice for projects with limited budgets but requiring good display performance.



For developers, driver support for display screens and development libraries are equally important. SFTM240JY-7182AN (with PCB) support development libraries such as GFX Library for Arduino, providing efficient display performance and simplified development processes.





Features



Item  Specification  Unit
Model Number

SFTO240JY-7182AN

/
Display Mode  Normally Black, Transmissive /
Viewing Direction  12 O'clock /
Colors 262K /
Drive IC  ST7789 /
Interface Type 4 Line SPI /
Dimensional Outline  42.72(W) x 59.46(H) x 2.34(T)

mm

Active Area 36.72(W) x 48.96(H)

mm

Resolution  240 RGB(H) x 320(V) pixels
Pixel Pitch  0.153(W) x 0.153(H)

mm




Outline Drawing


2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 0



Interface Pin Description



Pin.No

Symbol Description
1 GND Ground
2 RESET LCM Reset pin
3 SCL Serial clock pin.

4

RS

Register select pin

RS=’ 1’ : Display data.

RS=’0’ : Command data.

5 CS

Chip select pin(“Low” enable)

6 SDA Serial data input
7 SDO Serial data output.
8 VCC Power supply for Analog(2.8V-3.3V)
9 LED+ Anode of Backlight
10 LED- Cathode of Backlight





Schematic Diagram

2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 1



Absolute Maximum Ratings



Parameter  Symbol  Min  Max  Unit
Logic Supply Voltage  IOVCC -0.3 4.6 V
Analog Supply Voltage  VCC -0.3 4.6 V
Operating temperature Top -20 70
Storage temperature  Tst -30 80
Humidity  RH

--

90%(Max60C) RH





Electrical Characteristics



Parameter Symbol  Min  Typ Max  Unit
Logic Supply Voltage  IOVCC 1.65 1.8/2.8 3.3 V
Analog Supply Voltage  VCC 2.6 2.8 3.3

--

Input Current  Idd

--

20

--

mA





Backlight Characteristics



Item  Symbol  Min  Typ  Max Unit
Forward Voltage  Vf 3.0 3.2 3.4 V
Forward Current  If

--

80

--

mA
Operating Life Time

--

--

40000

--

Hrs



Optical Characteristics



Item  Symbol  Condition  Min.  Typ.  Max.  Unit

Response time (By

Quick)

Tr+Tf

θ= 0 °

-

30

-

Ms

Contrast ratio  CR θ= 0 °

-

250

-



Viewing angle

Top CR≧10 - 45 -

deg.

Bottom CR≧10 - 20 -
Left CR≧10 - 45 -
Right CR≧10 - 45 -

Color chromaticity

( CF only with ITO,

light source is C

light, CIE 1931)



Wx

θ= 0 °

-0.02

0.308

+0.02


Wy 0.325
Rx 0.612
Ry 0.329
Gx 0.299
Gy 0.567
Bx 0.144
By 0.110
NTSC     - 55 - %
Cross talk Ct   - 2 - %
Transmittance  Trans

-

5

-

%

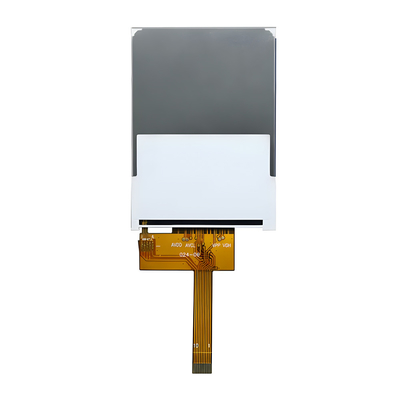

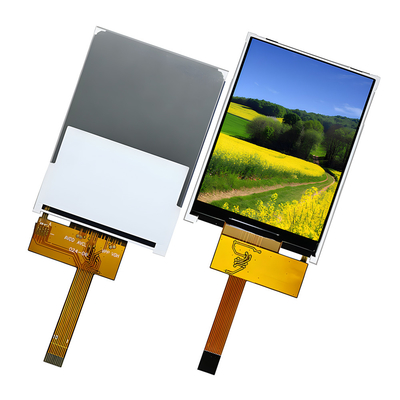

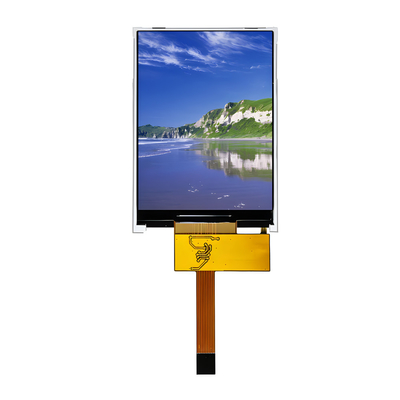

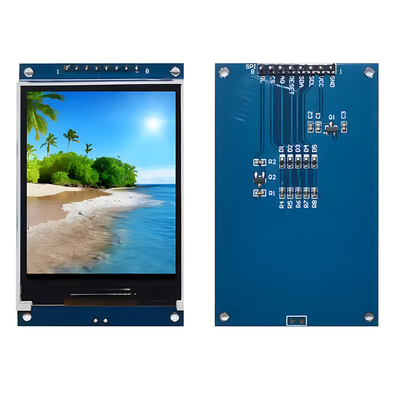

Product Photo


2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 22.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 32.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 42.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 5

2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 6



Environmental / Reliability Tests



No Test Item Condition Remarks
1 High Temperature Operation Ts= +80℃ , 240hrs

Note 1

IEC60068-2-2, GB2423. 2-89

2 Low Temperature Operation Ta= -30℃ , 240hrs Note 2 IEC60068-2-1 GB2423.1-89
3 High Temperature Storage Ta= +80℃ , 240hrs IEC60068-2-2 GB2423. 2-89
4 Low Temperature Storage Ta= -30℃ , 240hrs IEC60068-2-1 GB/T2423.1-89
5 High Temperature & Humidity Storage Ta= +60℃ , 90% RH max, 160 hours

IEC60068-2-3

GB/T2423.3-2006

6 Thermal Shock (Non-operation) -30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

Start with cold

temperature, end with

high temperature

IEC60068-2-14,

GB2423.22-87



7

Electro Static Discharge (Operation)

C=150pF, R=330 Ω , 5 points/panel

Air:±8KV, 5 times; Contact: ±4KV, 5

times; (Environment: 15℃ ~

35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

IEC61000-4-2

GB/T17626.2-1998



8



Vibration

(Non-operation)

Frequency range: 10~55Hz, Stroke:

1.mm Sweep: 10Hz~55Hz~10Hz

2 hours for each direction of X .Y. Z.

(package condition)

IEC60068-2-6

GB/T2423.5-1995

9 Shock (Non-operation)

60G 6ms, ± X, ±Y , ± Z

3 times for each direction

IEC60068-2-27 GB/T2423.5-1995
10 Package Drop Test

Height: 80 cm, 1 corner, 3 edges,

6 surfaces

IEC60068-2-32 GB/T2423.8-1995





Facilities and Certificates


2.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 72.4 Inch TFT LCD Display TN Mode 240x320 Pixels 262K Full Color SPI Interface 8
