Product Details:
|
Product: | 5 Inch IPS TFT With CTP | Resolution: | 720x1280 Dots |
---|---|---|---|
Interface: | MIPI | Touch Screen: | PCAP |
Viewing Direction: | IPS All Viewing Angles | PCAP Structure: | GFF |
LCD Controller: | ST7703 | CTP Controller: | GT911 |
Cover Glass Dimension: | Customizable | Pin Number: | 30 Pins |
Connection: | ZIF FPC | Surface Luminance: | 350 Cd/m2(nits) |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | 5 Inch TFT Display,GT911 Capacitive Touch Screen,IPS Full View TFT Display |
5 Inch Capacitive Touchsreen TFT LCD Product Introduction
Features
Item | Specification | Unit |
Screen Size | 5.0 | inch |
Number of Pixel | 720RGB(H)x1280(V) | Pixels |
Display area | 62.10(H)x110.40(V) | mm |
Pixel pitch | 0.0945(H)x0.0945(V) | mm |
Outline Dimension | 78.56x135.65x2.95 | mm |
Pixel arrangement | RGB Vertical Stripe | ― |
Display mode | Normally Black | ― |
Viewing Direction(eye) | ALL | ― |
Display Color | 262K | ― |
Luminance(cd/m2) | 350 | nit |
Contrast Ratio | 800:1 | ― |
Interface | MIPI | |
Back-light | LED Side-light type | ― |
LCM IC | ST7703 | |
CTP IC | GT911 | |
Operation Temperature | -20~70 | ℃ |
Storage Temperature | -30~80 | ℃ |
Outline Drawing
Interface Pin definition
PinNo. | Symbol | Function |
1 | NC | NC |
2 | LEDK | LED back light(Cathode) |
3 | NC | NC |
4 | LEDA | LED back light(Anode) |
5 | NC | NC |
6 | GND | Ground |
7 | MIPI_D0N | MIPI DSI differential data |
8 | MIPI_D0P | MIPI DSI differential data |
9 | GND | Ground |
10 | MIPI D1N | MIPI DSI differential data |
11 | MIPI D1P | MIPI DSI differential data |
12 | GND | Ground |
13 | MIPI_CLN | MIPI DSI differential clock |
14 | MIPI_CLP | MIPI DSI differential clock |
15 | GND | Ground |
16 | MIPI D2N | MIPI DSI differential data |
17 | MIPI D2P | MIPI DSI differential data |
18 | GND | Ground |
19 | MIPI_D3N | MIPI DSI differential data |
20 | MIPI_D3P | MIPI DSI differential data |
21-22 | GND | Ground |
23 | NC | NC |
24 | GND | Ground |
25 | TE | Frame synchronization signal |
26 | RESET | external reset input |
27 | IOVCC( 1.8V) | Power Supply 1.8V |
28 | VDD(2.8V) | Power Supply 2.8V |
29-30 | GND | Ground |
CTP Pin Definition
1 | RST | Touch screen reset |
2 | SDA | Touch screen data signal |
3 | SCL | Touch screen clock signal |
4 | INT | Touch screen interrupt signal |
5 | VDD(2.8V) | Power Supply 2.8V |
6 | GND | Ground |
Optical specification
Item | Symbol | Condition | Min | Type | Max | Unit | |
White luminance (Center) | Lv |
Θ=0 Normal Viewing Angle IBL=40mA |
-- | 350 | -- | cd/m2 | |
Response time | Tr+Tf | -- | 10 | 15 | ms | ||
Contrast ratio | CR | 640 | 800 | -- | -- | ||
Color Chromaticity (CIE1931) |
white | Wx | 0.283 | 0.303 | 0.323 | ||
Wy | 0.303 | 0.323 | 0.343 | ||||
Viewing Angle |
Hor |
ΘL |
CR≥10 |
-- | 80 | -- | |
ΘR | -- | 80 | -- | ||||
Ver |
ΘU | -- | 80 | -- | |||
ΘD | -- | 80 | -- | ||||
Brightness uniformity | Avg | Θ=0 | 80 | 90 | -- | % | |
Color Gamut | NTSC | Θ=0 | -- | 70 | -- | % | |
Optical View Direction | ALL |
TFT LCD Characteristics
Item | Symbol | Min. | Typ. | Max. | Unit |
Analog supply voltage | VDD | 2.4 | 2.8 | 3.3 | V |
Digital supply voltage | VDDI | 1.65 | 1.8 | 3.3 | |
Input signal Voltage | VIH | 0.7VDDI | - | VDDI | V |
VIL | GND | - | 0.3VDDI | V |
Backlight Characteristics
Item | Symbol | Min | Typ | Max | Unit |
LED current | IL | - | 30 | 40 | mA |
LED voltage | VL | - | 16.8 | 19.2 | V |
Operating LED life time | Hr | - | 20000 | 40000 | Hour |

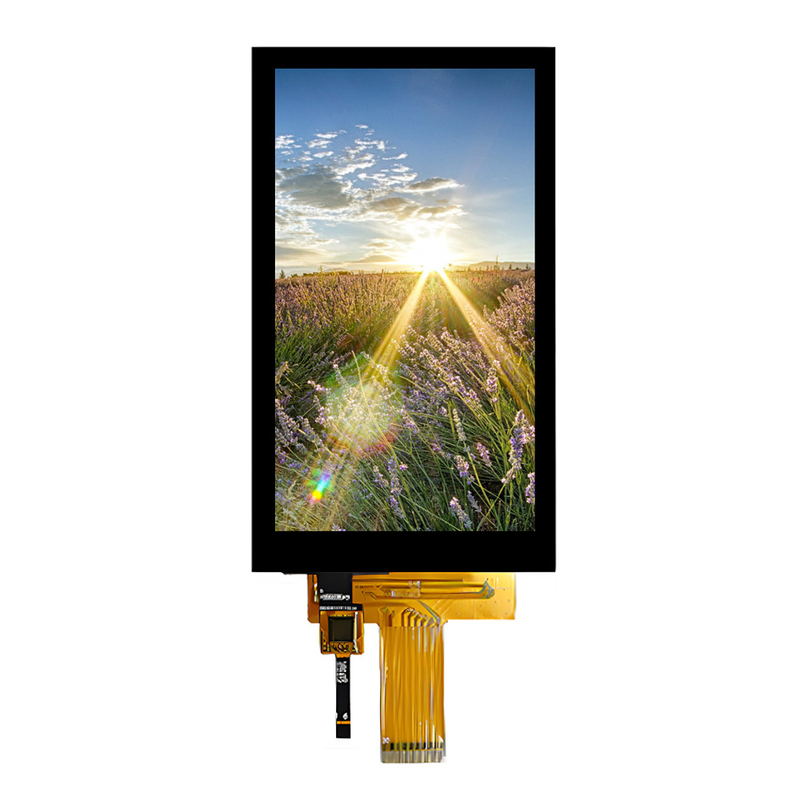

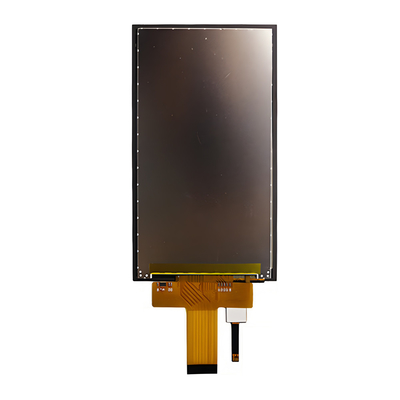

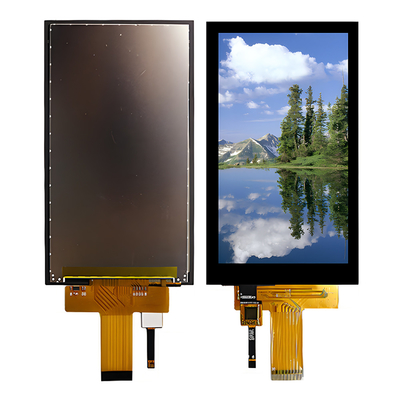

Product Image
