SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB

SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB
SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB

Large Image :  SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTM130JY-7181AN
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD1.7 - USD2.0, Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB

Description
Product: 1.3 Inch TFT+PCB PCB: 7-header Pin PCB
Resolution: 240x240 Dots Cover Glass: Customizable
Viewing Direction: IPS Free Viewing Angle Interface: SPI Interface
Pin Number: 7 Pins Connection: Header Pin
Surface Luminance: 250 Cd/m2(nits) LED Lifetime: 40,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: Rohs & Reach Compliant
Highlight:

7 header pins TFT LCD

,

1.3-Inch IPS TFT LCD

,

240x240 Dot TFT LCD



1.3 inch SPI Serial Interface TFT Product Introduction



SPI to serial chip is a multifunctional chip that can convert SPI interface signals into serial signals, which can be used to connect external devices and achieve communication with them. SPI to serial port chips have the advantages of high-speed transmission, low power consumption, and ease of use, and can be used in application scenarios such as computer hardware, household appliances, and industrial control.



The 1.3-inch TFT LCD module works very well and successfully completes my DIY project. It has an SPI interface, Its IC Driver is ST7789, There are two display way: horizontal display and vertical display, we can adjust the display direction. You need to set SPI_MODE3 on init, Arduino Nano, VCC to 5V and BKL to 3.3V. If you also purchase this one, be sure to check out the links mentioned in the product description before using them and they will help you with your project.



This 1.3 inch SPI TFT LCD display is with a diagonal size of 1.3 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. It can operate within a temperature range of -20 ℃ to+70 ℃ and Its storage temperature range is -30 ℃ to+80 ℃.





Features



Item

Contents

Part number SFTM130JY-7181AN
LCD Size 1.3 inch(Diagonal)
Display Mode Normally black
Resolution 240(H)RGB x 240(V)
Dot pitch 0.0975 (H) x 0.0975(V) mm
Active area 23.4(H) x 23.4 (V) mm
Module size 27.5(H) x 39.0(V) x 11.3(D) mm
Color arrangement RGB Vertical stripe
Interface SPI
Drive IC ST7789
Luminance 250 (TYP) cd/m2
Viewing Direction All View, IPS
Backlight 2 White LED
Operating Temp. -20℃~ + 70℃
Storage Temp. -30℃~+ 80℃
Weight TBD





Outline Drawing





SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB 0







Pin Definition



No. Name I/O Description
1 VCC P Power Supply for the chip, DC 3.3-5V
2 GND P Ground
3 SCL I Serial Clock pin (SPI)
4 SDA I/O Serial Data pin (SPI)
5 RES# I Reset signal input. Active Low.
6 DC I Data /Command control pin,SPI Choice/ Command Choice
7 BLK I Backlight control, default floating, low level off





Backlight Characteristics



Item Symbol Min Typ Max Unit
Forward Voltage Vf 3.0 3.2 3.4 V
Forward Current If



--

20



--

mA
Operating Life Time -- -- 40000



--

Hrs





Optical Characteristics



Item Symbol Measuring Conditions Min. Typ. Max. Unit
Response Time Tr+Tf θ = 0o φ = 0o 25 oC



-

30 35



ms



Viewing Angle



θ

φ = 0o 25 oC - 80 -



Deg

φ = 180o 25 oC - 80 -



θ

φ = 90o 25 oC - 80 -
φ =270o 25 oC - 80 -
Contrast Ratio CR - 25 oC   800 - -
Color of CIE Coordinate White X 25 oC 0.300 0.302 0.304 -
Y 25 oC 0.323 0.325 0.327
Red X 25 oC 0.622 0.624 0.626
Y 25 oC 0.327 0.329 0.331



Green

X 25 oC 0.286 0.288 0.290
Y 25 oC 0.520 0.522 0.524



Blue

X 25 oC 0.134 0.136 0.138
Y 25 oC 0.135 0.137 0.139
Transmittance (with polarizer)       4. 18 4.65   %

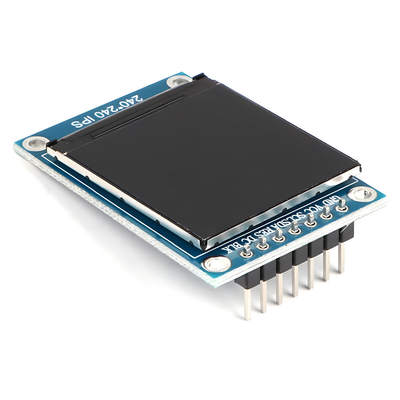

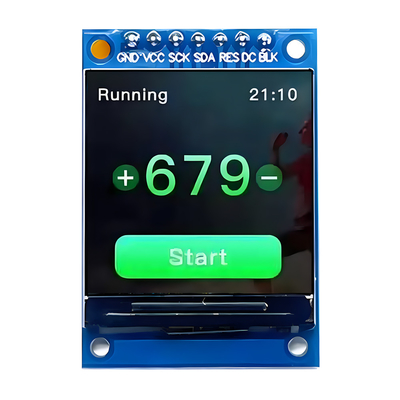

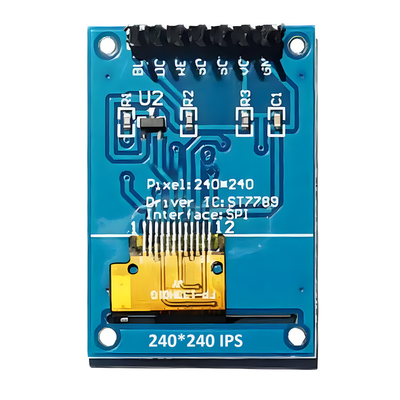

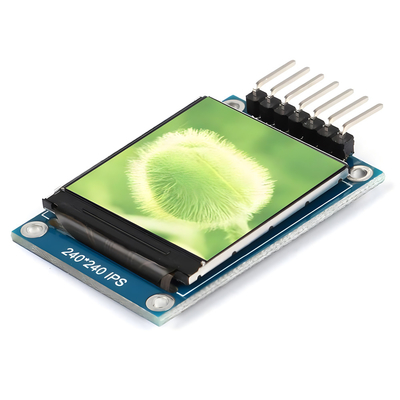

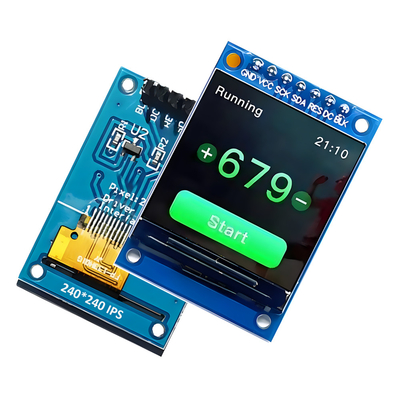

Product Image

SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB 1SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB 2SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB 3SPI Serial Interface 1.3-Inch IPS TFT LCD 240x240 Dot With 7 Header Pins PCB 4
