Product Details:
|
Product: | 1.3 Inch IPS TFT LCD | Touch Screen: | Without |
---|---|---|---|
Resolution: | 240x240 Dots | Cover Glass: | With, Customizable |
Viewing Direction: | IPS, Free Viewing Angles | Interface: | SPI Interface |
Pin Number: | 24 Pins | Connection: | Plugging |
Surface Luminance: | 250 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
Highlight: | 24 Pin TFT LCD Display,240x240 Pixels TFT LCD Display,1.3 Inch TFT LCD Display |
1.3 inch IPS TFT LCD with Cover Glass Product Introduction
A cover plate is a transparent lens attached to the outside of an electronic display screen, used to protect both touch and non touch display screens. With the development of mobile Internet technology, the number of entertainment systems and other devices in the rapid growth period of consumer electronics products has significantly increased, which effectively drives the market demand for cover products to increase significantly.
With the diversification of screen forms, optical composite covers have become an emerging solution for screen covers due to their performance advantages. Optical composite cover plates have excellent performance in terms of impact resistance, reflectivity, and transmittance, and are widely welcomed by users.
SFTO130JY-7167AT is a full-color square TFT LCD display with a diagonal size of 1.3 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SFTO130JY-7167AT model is 26.16x29.22 mm, and the active area size is 23.4x23.4mm.
The IPS technology used in the product ensures that users can experience the panoramic view of the screen and an excellent user experience from any direction. The ST7789P3 controller is integrated into the module, with a logic power supply voltage range of 3.0V to 3.6V. It can operate within a temperature range of -20 ℃ to+70 ℃, and its storage temperature range is -30 ℃ to+80 ℃. The FPC of SFTO130JY-7167AT can be customized according to user requirements and can be equipped with newly designed resistive touch screen (RTP) or capacitive touch screen.
Feature
Item | Contents |
LCD Size | 1.3 inch(Diagonal) |
Display Mode | Normally black |
Resolution | 240(H)RGB x 240(V) |
Dot pitch | 0.0975 (H) x 0.0975(V) mm |
Active area | 23.4(H) x 23.4 (V) mm |
Module size | 26.16(H) x 29.22(V) x 1.5Max(D) mm |
Cover Glass Size | Customizable |
Interface | SPI |
Drive IC | ST7789P3 |
Luminance | 250 (TYP) cd/m2 |
Viewing Direction | All View |
Backlight | 2 White LED |
Operating Temp. | -20℃~ + 70℃ |
Storage Temp. | -30℃~+ 80℃ |
Weight | TBD |
1.3 inch IPS TFT LCD with Cover Glass Product Drawing
Electrical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit |
Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 |
-- |
Input Current | Idd |
-- |
20 |
-- |
mA |
Luminance |
-- |
250 |
-- |
Cd/m2 |
Backlight Characteristics
Item | Symbol | Min | Typ | Max | Unit |
Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
Forward Current | If |
-- |
20 |
-- |
mA |
Operating Life Time |
-- |
-- |
40000 |
-- |
Hrs |
Optical Characteristics
Item | Symbol | Measuring Conditions | Min. | Typ. | Max. | Unit | |
Response Time | Tr+Tf | θ = 0o φ = 0o | 25 ℃ |
- |
30 | 35 |
ms |
Viewing Angle |
θ |
φ = 0o | 25 ℃ | - | 80 | - |
Deg |
φ = 180o | 25 ℃ | - | 80 | - | |||
θ |
φ = 90o | 25 ℃ | - | 80 | - | ||
φ =270o | 25 ℃ | - | 80 | - | |||
Contrast Ratio | CR | - | 25 ℃ | 800 | - | - | |
Color of CIE Coordinate |
White | X | 25 ℃ | 0.300 | 0.302 | 0.304 |
- |
Y | 25 ℃ | 0.323 | 0.325 | 0.327 | |||
Red | X | 25 ℃ | 0.622 | 0.624 | 0.626 | ||
Y | 25 ℃ | 0.327 | 0.329 | 0.331 | |||
Green |
X | 25 ℃ | 0.286 | 0.288 | 0.290 | ||
Y | 25 ℃ | 0.520 | 0.522 | 0.524 | |||
Blue |
X | 25 ℃ | 0.134 | 0.136 | 0.138 | ||
Y | 25 ℃ | 0.135 | 0.137 | 0.139 | |||
Transmittance (with polarizer) | 4. 18 | 4.65 | % |

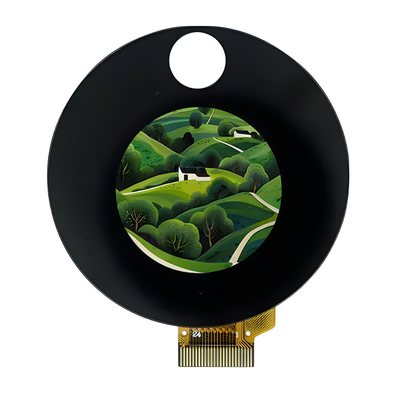

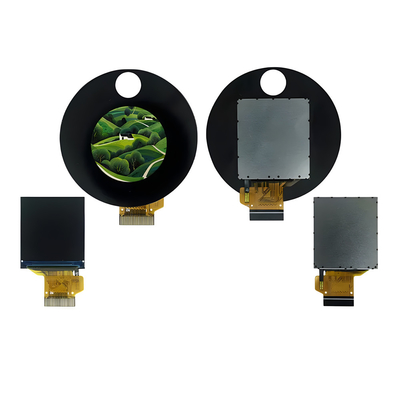

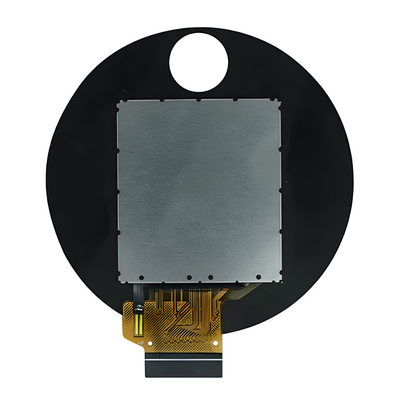

1.3 inch IPS TFT LCD with Cover Glass Product Image
Reliability Test
Test Item |
Test Condition |
Inspection after test |
High Temperature Operation | 85℃ for 96 hours |
After the Testing is completed, the tested LCD samples must be placed in a normal indoor temperature and humidity environment for 2-4 hours or more before functional and visual inspection. The samples are not allowed to have the following defects: 2. Each tested module can only be used for one of the testing projects |
Low Temperature Operation | -30℃ for 96 hours | |
High Temperature Storage | 85℃ for 96 hours | |
Low Temperature Storage | -30℃ for 96 hours | |
High Temperature Operation Humidity Operation | 60℃, 90%RH for 72 hours | |
Thermal Shock | -10℃(30min) ~+25℃(5min)~ +60℃(30min) for 10 cycles | |
Vibration Test (No Operation) |
Frequency: 10~55Hz Amplitude:1.0mm Sweep Time: 11min Test Period: 6 Cycles for each direction of X, Y, Z |
|
Static electricity test | Touch ±4KV,air touch ±8KV |
