Product Details:
|
| Product: | 1.54 Inch TFT LCD | Touch Screen: | Without |
|---|---|---|---|
| Resolution: | 240x240 Dots | Cover Glass: | Customizable |
| Viewing Direction: | IPS, All Viewing Angles | Interface: | SPI Interface |
| Pin Number: | 10 Pins | Connection: | Plugging |
| Surface Luminance: | 250 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
| Highlight: | 10 Pin ZIF Connection TFT Display,240x240 Dots TFT Display,1.54 Inch TFT Display |
||
1.54 inch SPI TFT LCD 240x240 Resolution Product Introduction
Square display screen refers to a special LCD product with an aspect ratio of 1:1, which can be customized and cut according to the customer's design. Square screen displays are gradually attracting people's attention, with ultra-thin overall size, high brightness, long display life, and good heat dissipation. SAEFDISPLAY can provide square displays with sizes of 0.85 ", 1.3", 1.33 ", 1.4", 1.44 ", 1.54", 3.95 ", 4", and 7.6 ", which are more commonly used in handheld devices, smart home devices, and other special installation environments.
SFTO154JY-7166AN is a full-color square TFT LCD display with a diagonal size of 1.54 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SFTO154JY-7166AN is 31.52 x 33.72mm, and the active area size is 27.72 x 27.72mm. It is controlled by ST7789P3, with a logic power supply voltage range of 3.0V to 3.6V.
This square TFT LCD can operate within a temperature range of -20 ℃ to+70 ℃, and its storage temperature range is -30 ℃ to+80 ℃. SFTO154JY-7166AN can be equipped with a newly designed resistive touch screen (RTP) or capacitive touch screen.
Feature
| Item | Contents |
| LCD Size | 1.54 inch(Diagonal) |
| Display Mode | Normally black |
| Resolution | 240(H)RGB x 240(V) |
| Dot pitch | 0.0975 (H) x 0.0975(V) mm |
| Active area | 27.72 x 27.72mm |
| Module size | 31.52 x 33.72 x 1.94Max(D) mm |
| Color arrangement | RGB Vertical stripe |
| Interface | SPI |
| Drive IC | ST7789P3 |
| Luminance | 250 (TYP) cd/m2 |
| Viewing Direction | All View |
| Backlight | 2 White LED |
| Operating Temp. | -20℃~ + 70℃ |
| Storage Temp. | -30℃~+ 80℃ |
| Weight | TBD |
1.54 inch SPI TFT LCD 240x240 Resolution Product Drawing
Pin Definition
|
Pin.No |
Symbol | Description |
| 1 | GND | Ground |
|
2 |
D/C |
Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 3 | CS |
Chip select pin(“Low” enable) |
| 4 | SCL | Serial clock pin |
| 5 | SDA | Serial data input / output |
| 6 | RESET | LCM Reset pin |
| 7 | VCC | Power supply for Analog(2.8V-3.3V) |
| 8 | GND | Ground |
| 9 | LEDA | Anode of Backlight |
| 10 | LEDK | Cathode of Backlight |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 |
-- |
| Input Current | Idd |
-- |
20 |
-- |
mA |
| Luminance |
-- |
250 |
-- |
Cd/m2 |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | ||
|
Viewing Angle Range |
Horizontal | Θ3 |
CR>10 |
75 | 80 | - | Deg. | |
| Θ9 | 75 | 80 | - | Deg. | ||||
| Vertical | Θ12 | 75 | 80 | - | Deg. | |||
| Θ6 | 75 | 80 | - | Deg. | ||||
| Contrast ratio |
CR |
Θ = 0 |
700 |
900 |
- |
- |
||
| Transmittance | Tr |
- |
4.6 | 5.4 |
- |
% | ||
| Color Gamut |
CG |
- |
45 |
50 |
- |
% | ||
|
Reproduction of color |
Red |
Rx |
Θ = 0 |
0.601 | 0.631 | 0.661 | - | |
| Ry | 0.300 | 0.282 | 0.660 | - | ||||
|
Green |
Gx | 0.252 | 0.282 | 0.312 | - | |||
| Gy | 0.514 | 0.544 | 0.574 | - | ||||
|
Blue |
Bx | 0.108 | 0.138 | 0.168 | - | |||
| By | 0.125 | 0.155 | 0.185 | - | ||||
| White Chromaticity | Wx |
Θ = 0 |
0.261 | 0.291 | 0.321 | - | ||
| Wy | 0.304 | 0.334 | 0.364 |
- |
||||
| Response Time | Tr ＋ Tf |
Ta= 25 C Θ = 0 |
- |
30 |
35 |
ms |
||

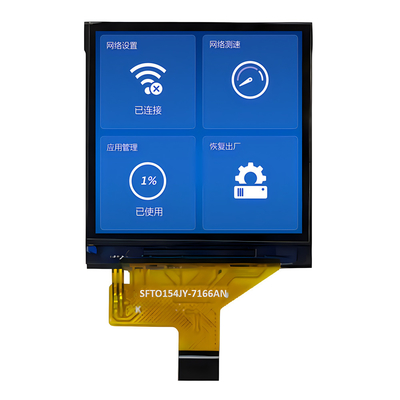

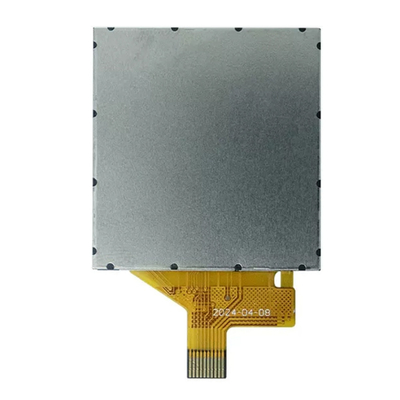

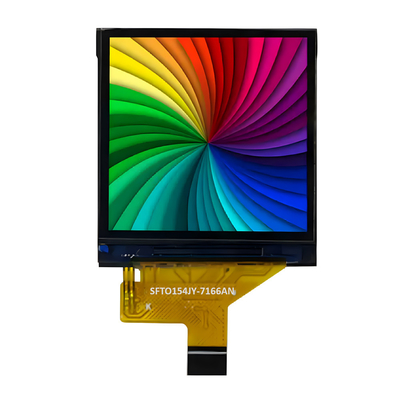

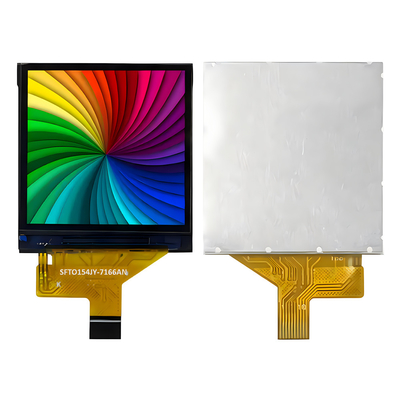

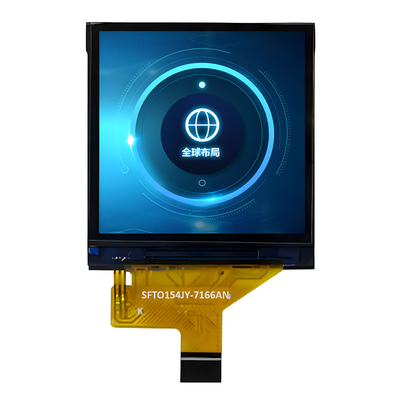

1.54 inch SPI TFT LCD 240x240 Resolution Product Image
