Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface

Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface
Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface

Large Image :  Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO700SH-7168A10-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: USD13-USD14
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface

Description
Keywords: 7 Inch LVDS TFT LCD Touch Screen: Without
Resolution: 1024*600 Cover Glass: ODM
Interface: LVDS Surface Luminance: 1000 Cd/m2
LED Lifetime: 40,000 Hours Pins Number: 20 Pins
Control-Board: With Viewing Direction: All Viewing Angles
Highlight:

Outdoor TFT LCD Module

,

1000nits TFT LCD Module

,

7 Inch TFT LCD Module

IPS TFT LCD 7" LVDS 1000nits 1024x600dots Product Introduction



Model No. : SFTO700SH-7168A10-N



LVDS interface refers to Low Voltage Differential Signaling. The transmission technology is mainly developed to reduce the shortcomings of high power consumption and large EMI electromagnetic interference when transmitting broadband at high bit rate, so that it can effectively achieve low noise and low power consumption.



The model SFTO700SH-7168A10-N is a 7-inch IPS transmissive color active matrix TFT LCD display supporting a resolution of 1024x600 dots. The module size is 165(H) × 100(V) × 5.7(D) mm; Effective area 154.2144(H) ×85.92(V) mm. This TFT monitor supports LVDS interface. With the help of anti glare display surfaces, the screen does not reflect light and maintains better image quality.



Brightness value of the LCD is 1000 cd/m2 and its contrast ratio (typical value) is 500:1. The power voltage ranges from 3.0V to 3.6V; typical value is 3.3V. It works within temperature range from -30 to +80℃, storage temperature ranges from -30 to +80℃.





Features



No.

Item Specification Unit
1 Panel Size 7 inch
2 Number of Pixels 1024 × 3(RGB) ×600 pixels
3 Active Area 154.2144(H) ×85.92(V) mm
4 Pixel Pitch 0.1506(H) ×0.1432(V) mm
5 Outline Dimension 165(H) × 100(V) × 5.7(D) mm
6 Pixel arrangement RGB - stripe -
7 Display Mode IPS with Normally Black -
8 Viewing Direction ALL Viewing Direction -
9 Display Color 16.7M -
10 Interface LVDS -
11 Backlight White LED -
12 Brightness 1000 cd/m2
13 Drive IC - -
14 Operation Temperature -30~80 ºC
15 Storage Temperature -30~85 ºC
16 Weight 116(Typ.) g





IPS TFT LCD 7" LVDS 1000nits 1024x600dots Product Drawing

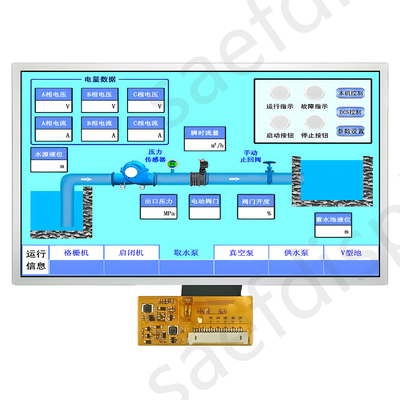

Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface 0





Pin Definition



Pin No.

Symbol I/O Function
1 VDD P Power supply VDDIN=3.3V
2 VDD P Power supply VDDIN=3.3V
3 LED_EN I Power supply VDDIN(3.3~5.0V)
4 GND P Ground
5 RXIN0N I 0-LVDS differential data
6 RXIN0P I 0+LVDS differential data
7 GND P Ground
8 RXIN1N I 1-LVDS differential data
9 RXIN1P I 1+LVDS differential data
10 GND P Ground
11 RXIN2N I 2-LVDS differential data
12 RXIN2P I 2+LVDS differential data
13 GND P Ground
14 RX_CLKN I -LVDS differential clock input
15 RX_CLKP I +LVDS differential clock input
16 GND P Ground
17 RXIN3N I 3-LVDS differential clock input
18 RXIN3P I 3+LVDS differential clock input
19 PWM I Backlight brightness:apply 0.7V to 1.4V DC voltage signal
20 VLED P Power supply VLED=5~12V(Typ.)





Typical Operation Conditions



Item Symbol Values Unit
Min. Typ. Max.
Digital Supply Voltage VDD 3 3.3 3.6 V
Power Supply for LED VLED 4.8 5 12 V
Power IC provides voltage AVEE -6 -5 -4.5 V
AVDD 4.5 5.5 6 V
Driver IC provides voltage internally VGH 9 - 20 V
VGL -20 - -9 V
Input Signal Voltage Low Level VIL 0 - 0.3*VDD V
High Level VIH 0.7*VDD - VDD V





Optical Specifications



Item Symbol Condition Values Unit
Min. Typ. Max.
Viewing angle Θu CR≥10 - 85 - degree
ΘD   - 85 -
ΘL   - 85 -
ΘR   - 85 -
Response time TON+TOFF θ=Φ =0 ° - 19 25 ms
Normal
viewing
angle
Contrast ratio CR   400 500 - -
Luminance L     1000 - cd/m²
Luminance uniformity YU   70 75 - %
Color chromaticity (CIE1931) White WX   0.276 0.296 0.316
  WY   0.302 0.322 0.342
Red RX   - - -
  RY   - - -
Green GX   - - -
  GY   - - -
Blue BX   - - -
  BY   - - -





IPS TFT LCD 7" LVDS 1000nits 1024x600dots Product Image

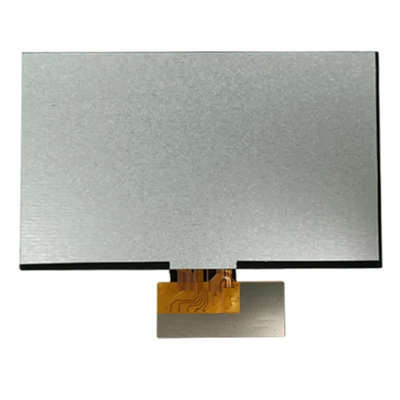

Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface 1Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface 2

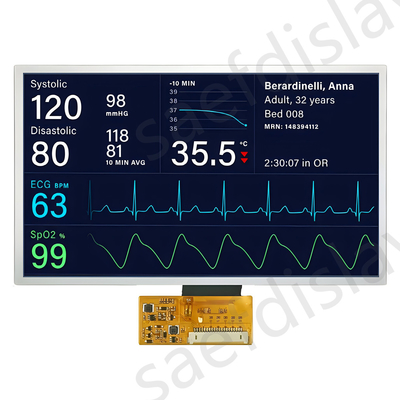

Outdoor High Brightness 1000nits 7 Inch TFT LCD Module 1024*600 LVDS Interface 3
