Serial Interface 4-Inch SPI TFT LCD Module SPI 4 IO Driver Port 480x320 Points

Description
Product: 4 Inch Serial Port SPI TFT Module Module Structure: TFT+RTP+SPI PCB
Resolution: 480x320 Dots Interface: 4 Wire SPI
Touch Screen: With Resistive Touch Screen Driver IC: ILI9488
Outline Dimension: 55.04x89.3 (mm) Active Area: 48.6x64.8 (mm)
Pin Number: 14 Pins Operating Temp.: -20℃~70℃
Storage Temp.: -30℃~80℃ Working Voltage: 3.3V / 5V
Power Consumption: ~90mA Weight: ~25g
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: Rohs & Reach Compliant
Highlight:

SPI TFT LCD Module

,

480x320 Points TFT LCD Module



4 inch SPI Serial Interface TFT Module Product Introduction



Model No.:  SFTM400XM-7173AT



SFTM400XM-7173AT is a 4 inch LCD module adopting a 4-wire SPI communication method, with a driver IC of ILI9488, a resolution of 480x320, and touch function (optional). This module includes an LCD display screen, backlight control circuit, and touch screen control circuit.

  1. 4.0-inch color screen,support 65K color display,display rich colors, 480X320 resolution, with touch function.
  2. Using the SPI serial bus, it only takes a few IOs to illuminate the display.
  3. Eeasy to expand the experiment with SD card slot and touch pen.
  4. Compatible with Arduino R3/Nano/Mega controller boards, which will improve your project operation.
  5. Provide a rich sample program and underlying driver technical support.



Feature



Product: 4inch SPI Module
Module Structure: TFT+RTP+SPI PCB
Resolution: 480x320 Dots
Interface: 4 Wire SPI
Touch Screen: With Resistive Touch Screen
Driver IC: ILI9488
Outline Dimension: 61.74 x 108.04 (mm)
Active Area: 51.84 x 86.40 (mm)
Pin Number: 14 Pins
Operating Temp.: -20℃~70℃
Storage Temp.: -30℃~80℃
Working Voltage: 3.3V / 5V
Power Consumption: ~90mA
Weight: ~71g





Hardware Configuration



The hardware circuit of this LCD module consists of three main parts: LCD display control circuit, touch screen control circuit, and backlight control circuit.


1, The LCD display control circuit is used to control the pins of the LCD, including control pins and data transmission pins.
2, The touch screen control circuit can control the touch screen touch response and touch coordinate reading (touch screen optional).
3, The backlight control circuit is used to control the backlight brightness and dimming. Of course, if backlight control is not required, this circuit can be omitted and the backlight control pin can be directly connected to a 3.3V power supply.



4 inch SPI Serial Interface TFT Module Product Drawing



Serial Interface 4-Inch SPI TFT LCD Module SPI 4 IO Driver Port 480x320 Points 0





Pin Definition

No Pin Description
1 VCC LCD Power supply positive (3.3V~5V)
2 GND LCD Ground
3 CS LCD Chip Select
4 RESET LCD RESET
5 DC/RS LCD Register/Data Selection Signal
6 SDI(MOSI) LCD SPI Bus write data signal
7 SCK LCD SPI Bus clock signal
8 LED

Backlight control signal (high-level illumination,

if no control is required, please connect to 3.3V)

9 SDO(MISO) LCD SPI bus read data signal (if not needed, it can be disconnected)



The following are touch screen pins.

If they do not have touch or do not require touch function, they can be disconnected

10 T_CLK Touch screen SPI bus clock signal
11 T_CS Touch screen chip selection signal
12 T_DIN Touch screen SPI bus input signal
13 T_DO Touch screen SPI bus output signal
14 T_IRQ Touch screen touch interrupt signal

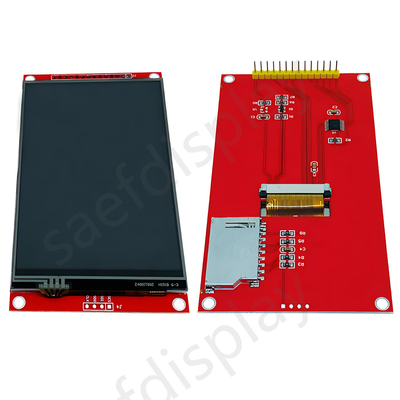

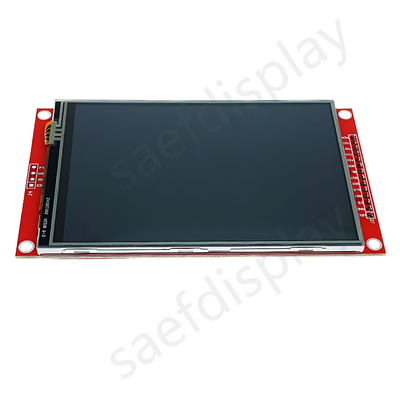

4 inch SPI Serial Interface TFT Module Product Image
