Product Details:
|
| Product: | 1.3 Inch IPS TFT LCD | Touch Screen: | Without |
|---|---|---|---|
| Resolution: | 240x240 Dots | Cover Glass: | Customizable |
| Viewing Direction: | Free Viewing Angle(80/80/80/80) | Interface: | SPI Interface |
| Pin Number: | 12 Pins | Connection: | Plugging |
| Surface Luminance: | 250 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
| Highlight: | 1.3 Inch Square LCD Display,240x240 Square LCD Display,1.3 Inch SPI LCD Display |
||
1.3 inch IPS TFT LCD 12 Pins Product Introduction
SFTO130JY-7167AN is a full-color square TFT LCD display with a diagonal size of 1.3 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SFTO130JY-7167AN model is 26.16x29.22 mm, and the active area size is 23.4x23.4mm.
The IPS technology used in the product ensures that users can experience the panoramic view of the screen and an excellent user experience from any direction. The ST7789P3 controller is integrated into the module, with a logic power supply voltage range of 3.0V to 3.6V. It can operate within a temperature range of -20 ℃ to+70 ℃, and its storage temperature range is -30 ℃ to+80 ℃. The FPC of SFTO130JY-7167AN can be customized according to user requirements and can be equipped with newly designed resistive touch screen (RTP) or capacitive touch screen.
Feature
| Item | Contents |
| LCD Size | 1.3 inch(Diagonal) |
| Display Mode | Normally black |
| Resolution | 240(H)RGB x 240(V) |
| Dot pitch | 0.0975 (H) x 0.0975(V) mm |
| Active area | 23.4(H) x 23.4 (V) mm |
| Module size | 26.16(H) x 29.22(V) x 1.5Max(D) mm |
| Color arrangement | RGB Vertical stripe |
| Interface | SPI |
| Drive IC | ST7789P3 |
| Luminance | 250 (TYP) cd/m2 |
| Viewing Direction | All View |
| Backlight | 2 White LED |
| Operating Temp. | -20℃~ + 70℃ |
| Storage Temp. | -30℃~+ 80℃ |
| Weight | TBD |
1.3 inch IPS TFT LCD 12 Pins Product Drawing
Pin Definition
| No. | Symbol | Description |
| 1 | GND | Ground |
| 2 | LEDK | Cathode of Backlight |
| 3 | LEDA | Anode of Backlight |
| 4 | VCC | Power supply for Analog(2.8V-3.3V) |
| 5 | GND | Ground |
| 6 | GND | Ground |
|
7 |
D/C |
Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 8 | CS |
Chip select pin(“Low” enable) |
| 9 | SCL | Serial clock pin. |
| 10 | SDA | Serial data input |
| 11 | RESET | LCM Reset pin |
| 12 | GND | Ground |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 |
-- |
| Input Current | Idd |
-- |
20 |
-- |
mA |
| Luminance |
-- |
250 |
-- |
Cd/m2 |
Backlight Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | Vf | 3.0 | 3.2 | 3.4 | V |
| Forward Current | If |
-- |
20 |
-- |
mA |
| Operating Life Time |
-- |
-- |
40000 |
-- |
Hrs |
Optical Characteristics
| Item | Symbol | Measuring Conditions | Min. | Typ. | Max. | Unit | |
| Response Time | Tr+Tf | θ = 0o φ = 0o | 25 oC |
- |
30 | 35 |
ms |
|
Viewing Angle |
θ |
φ = 0o | 25 oC | - | 80 | - |
Deg |
| φ = 180o | 25 oC | - | 80 | - | |||
|
θ |
φ = 90o | 25 oC | - | 80 | - | ||
| φ =270o | 25 oC | - | 80 | - | |||
| Contrast Ratio | CR | - | 25 oC | 800 | - | - | |
|
Color of CIE Coordinate |
White | X | 25 oC | 0.300 | 0.302 | 0.304 |
- |
| Y | 25 oC | 0.323 | 0.325 | 0.327 | |||
| Red | X | 25 oC | 0.622 | 0.624 | 0.626 | ||
| Y | 25 oC | 0.327 | 0.329 | 0.331 | |||
|
Green |
X | 25 oC | 0.286 | 0.288 | 0.290 | ||
| Y | 25 oC | 0.520 | 0.522 | 0.524 | |||
|
Blue |
X | 25 oC | 0.134 | 0.136 | 0.138 | ||
| Y | 25 oC | 0.135 | 0.137 | 0.139 | |||
| Transmittance (with polarizer) | 4. 18 | 4.65 | % | ||||

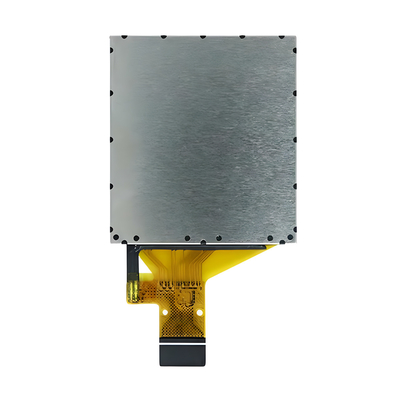

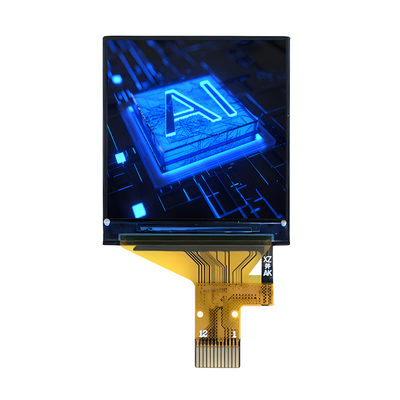

1.3 inch IPS TFT LCD 12 Pins Product Image
