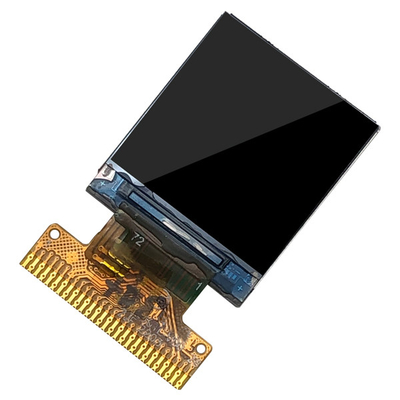

0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight

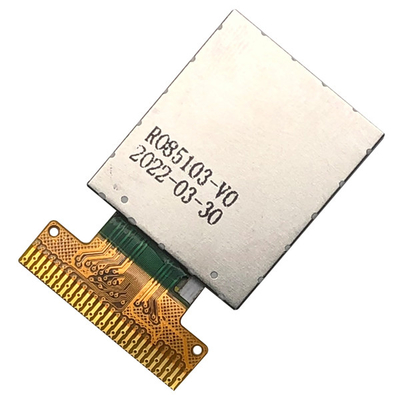

0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight

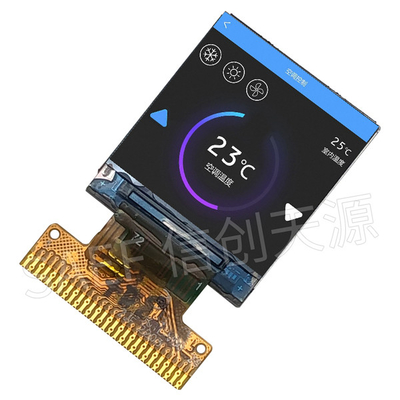

0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight 0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight 0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight

Large Image :  0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TO085AS-8980A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: the lowest market price guaranteed
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight

Description
Product: 0.85" Inch Tiny TFT IPS Resolution: 128x128 Pixels
Driver IC: NV3023A Or Equivalent Outline Dim.: 17.6 X 20.6 X 1.45 Mm
Touch Screen: Without Touch Cover Glass: Customizable
Viewing Direction: All Viewing Angles IPS Interface: MCU 8 Bits (customizable)
Connection: Soldering Type Pin Number: 28 Pins ( Customizable )
Surface Luminance: 350 Cd/m2 (nits) Backlight Type: White LED
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

0.85 Inch Square LCD Display

,

128x128 Square LCD Display

,

MCU 128x128 lcd display

**  Datasheet Download  **

SF-TC085AS-8980A-N SPECIFICATION.pdf



Product Description: 0.85" Inch 128x128 Square Type IPS TFT LCD MCU Interface Display



Introducing our compact 0.85" Inch 128x128 Square Type IPS TFT LCD Display, a high-resolution screen perfect for various embedded applications. This high-quality display features a clear and vibrant 128x128 pixel resolution, bringing your visuals to life with sharp clarity and rich colors.



Key Features:

  • Compact Size: Measuring only 0.85 inches diagonally, this display is ideal for projects where space is limited, including wearables, portable devices, and IoT applications.

  • IPS Technology: The In-Plane Switching (IPS) panel offers a wide viewing angle and excellent color reproduction, ensuring consistent image quality from various perspectives.

  • High Resolution: The 128x128 pixel resolution provides crisp and detailed images, making it suitable for graphic-intensive applications and seamless user interfaces.

  • Easy Integration: Designed with an MCU interface, this LCD display simplifies connections to microcontrollers, making it straightforward to integrate into your existing systems.

  • Versatile Applications: Perfect for use in smart devices, robotics, consumer electronics, and any project requiring a compact display solution.

  • Low Power Consumption: Designed for efficiency, this display consumes minimal power, extending the battery life of portable devices.

  • Robust Performance: With its durable construction and reliable performance, this display is engineered for longevity and dependable use across various environments.

Upgrade your project with our 0.85" Inch 128x128 Square Type IPS TFT LCD MCU Interface Display and experience the perfect blend of size, quality, and functionality!



Features Details Unit
Display Size(Diagonal) 0.85 inch
LCD type α-Si TFT -
Display Mode IPS / Transmissive / Normally Black -
Resolution 128RGB x 128 -
View Direction All Best image
Module Outline 17.6(H) ×20.6(V)×1.45(T) (Note 1 ) mm
TP Outline N/A mm
TP Viewing Area N/A mm
TP Active Area N/A mm
Active Area 15.2064 (H)×15.2064(V) mm
Viewing Area N/A mm
Display Colors 65K -
Interface 4-SPI -
Driver IC NV3023A -
Operating Temperature -20~60 ºC
Storage Temperature -30~70 ºC
Weight TBD g





FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.



Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.



Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.





External Dimension



0.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight 00.85 Inch Square LCD Display 128x128 IPS MCU Interface With White LED Backlight 1

Interface Pin Definition



NO SYMBOL FUNCTION
1 GND Power Ground
2-6 NC TNo Connect
7 GND Power Ground
8 VDD Power Supply for Analog, VDD=2.5V~3.3V.
9 IM2 IM2=’1’,MCU parallel interface; IM2=’0’,serial interface
10 SPI4W SPI4W=’0’, 3-line SPI or 2 Data Line SPI Enable; SPI4W=’1’,4-line SPI Enable.
11 CS Chip selection pin; Low enable, High disable.
12 RESET This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
13 D/C Display data/command selection pin in MCU parallel interface , This pin is used to be clock in 4-line serial interface.
14 WR Write MCU parallel interface, Display data/command selection pin in 4-line serial interface.
15 RD Read MCU parallel interface
16 D0 MCU parallel interface data ,SPI should use ‘SDA’
17-23 D1-D7 MCU parallel interface data
24 NC No Connect
25 IOVCC Power Supply for I/O system. IOVCC= 1.65V~3.3V
26 LEDA LED Anode
27 NC No Connect
28 LEDK LED Cathode





Absolute Maximum Ratings



Item Symbol Min. Max. Unit
Supply Voltage Power supply VDD -0.3 +4.6 V
Analog - - - V
IO IOVDD -0.3 +4.6 V
Input Voltage Vi -0.3 IOVDD+0.3 V
Storage temperature T stg -30 +70 ºC
Operating temperature T op -20 +60 ºC
Storage humidity

H

stg

10 Note 1 %RH
Operating humidity H op 10 Note 1 %RH




Electrical Specification



Item Symbol Min. Typ. Max. Unit
Supply Voltage Power supply VDD 2.4 2.8 3.3 V
Analog VCI 2.4 2.8 3.3 V
IO IOVDD 1.65 1.8/2.8 3.3 V
Logic Low input voltage VIL -0.3IOVDD - 0.3IOVDD V
Logic High input voltage VIH 0.7IOVDD - IOVDD V
Logic Low output voltage VOL - - 0.2IOVDD V
Logic High output voltage VOH 0.8IOVDD - - V
Current Consumption Normal display Ivdd - 3.5 - mA
Standby mode Ivdd - 10 - uA
Frame Frequency fFR - 60 - Hz





Optical Specifications



Backlight On (Transmissive Mode) Item Symbol Condition Specification Unit
Min. Typ. Max.
Luminance on surface(If =20mA)

Lv

Normally

viewing

angle

θX = θY =0º

330

350

-

cd/m²

Contrast ratio CR - 600 - -
Response time TR - 10 20



ms

TF - - 20 30







Chromaticity Transmissive

Red XR











-

0.614 0.644 0.674 -
YR 0.290 0.320 0.350 -
Green XG 0.270 0.300 0.330 -
YG 0.540 0.570 0.600 -
Blue XB 0.104 0.134 0.164 -
YB 0.097 0.127 0.157 -
White XW 0.267 0.297 0.327 -
YW 0.302 0.332 0.362 -
Viewing Angle Horiz ontal θX+



Center CR≥10

- 80 -





Deg.

θX- - 80 -
Vertic al θY+ - 80 -
θY- - 80 -
  NTSC Ratio(Gamut) - - - 60 - %
