240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM

240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM
240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM

Large Image :  240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC154B-8945B-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Reference price USD3.xx, Price is negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM

Description
Product: 1.54" TFT Screen Resolution: 240x240
Viewing Direction: Full Viewing Angle(80/80/80/80) Touch Screen: Without Capacitive Touch Screen( Optional)
Interface: MCU ( Customizable ) Pin Number: 24 Pins
Surface Luminance: 500 Cd/m2(nits) LED Lifetime: 40,000 Hours
Cover Glass: Customizable Compliance: REACH & RoHS Compliant
Highlight:

Square LCD Display ODM

,

Square LCD Display OEM

,

1.54" 240x240 tft display

TFT Lcd Display 1.54" Inch 240x240 Square Resolution MCU IPS ST7789V With Custom Touch Screen Optional





Product Quick Details:

1. LCD Size: 1.54” inch TFT

2. Resolution: 240x240

3. Viewing Angle: All

4. Outline Dimension: 31.52x33.72x1.8 mm

5. LCD Driver IC: ST7789V

6. LCD Interface Type: MCU

7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

8. Touch Panel: custom or standard capacitive touch screen(CTP) opational




Saef SF-TC154B-8945B-N is a diagonal size 1.54” inch square TFT LCD Module with resolution 240x240 pixels.  This module supports MCU interface. SF-TC154B-8945B-N model is having module dimension of 31.52x33.72mm and Active area size of 27.74x27.74mm; it is integrated with ST7789V controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.



Saef SF-TC154B-8945B-N can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

this TFT module is a square type LCD module, with 500 cd/m2 luminance. If you would like to adjust the luminance, please contact with us for more technical support.



Product Quick Details:

1. LCD Size: 1.54” inch TFT

2. Resolution: 320x320

3. Viewing Angle: All

4. Outline Dimension: 31.52x33.72x1.15 mm

5. LCD Driver IC: ST7789V

6. LCD Interface Type: MIPI

7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

8. Touch Panel: capacitive touch screen(CTP)



Product: 1.54" TFT Screen Resolution: 240x240
Viewing Direction: Full Viewing Angle(80/80/80/80) Touch Screen: Without Capacitive Touch Screen( Optional)
Interface: MCU ( Customizable ) Pin Number: 24 Pins
Surface Luminance: 500 Cd/m2(nits) LED Lifetime: 40,000 Hours
Cover Glass: Customizable Compliance: REACH & RoHS Compliant



FAQ


1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. Then you can place us the order.
For designing or further discussion, it is better to contact us by email / phone for more clear and accurate LCD solution proposal for you. .


2. What kind of display we provide?
We have TFT color LCD display module, monochrome lcd module, OLED lcd module, lcd module with digital frame, Android Tablet, etc. We support both indoor and outdoor applications, industrial and commercial applications.

We also support standard solutions and customized design solutions.

We have off-shelf and design-in products to provide customer with one-stop solutions.



3. How about the warranty ?
We have 1 year warranty. All the defects can be returned and replaced.


4. What is your terms of delivery?
We accept EXW, FOB, FCA, etc. You can choose the one which is the most convenient or cost effective for you.








1.54” TFT LCD Display Drawing
240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 0240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 1

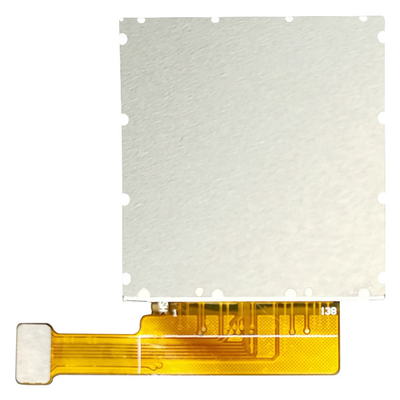

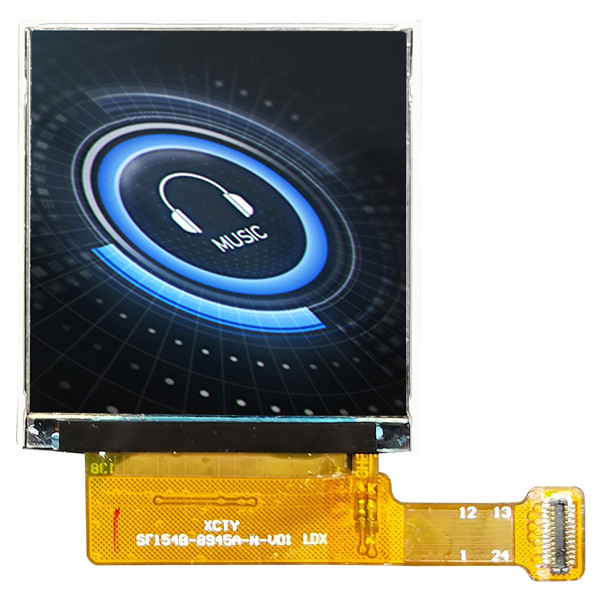

1.54” TFT LCD Display Real Product Pictures


240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 2240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 3

240x240 Square LCD Display TFT 1.54" Inch With Touch Screen OEM ODM 4





SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN


SIZE


DETAILS OUR P/N


1.54 inch


same lcd display but wihtout CTP touch SF-TC154B-8483A-N


1.54 inch


different FPC tail, SPI interface SF-TC154B-8321A-N


1.54 inch


different FPC tail, MUC interface SF-TC154B-8591A-CT


1.54 inch


320x320 resolution, different FPC tail, MIPI interface,with CTP SF-TC154B-8873A-CT
1.54 inch 320x320 resolution, different FPC tail, MIPI interface, without TP


SF-TC154B-8429A-N
