Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP

Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP
Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP

Large Image :  Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC220I-8686A1-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP

Description
Product: 2.2 Inch SPI TFT LCD Resolution: 176x220
Touch Screen: With Resistive Touch Screen Interface: SPI
Cover Glass: To Be Customized Viewing Direction: 12:00
Driver IC: ILI9225G Or Equivalent Connection: Plugging (customizable)
Luminance: 250 Cd/m2(nits) Pin Number: 14 Pins
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

Graphic TFT LCD Display

,

2.2 Inch TFT LCD Display

,

SPI TFT LCD Display

2.2 inch SPI QCIF TFT Product Description


SF-TC220I-8686A1-T is a 2.2-inch diagonal full-color TFT LCD display with a resolution of QCIF 170x220 dots. This 2.2-inch TFT LCD is driven by SPI interface, making it very easy for users to program and use. It is also equipped with a resistive touch screen, which can enhance the user experience. This 2.2 inch Graphic TFT LCD can be used for embedded systems, industrial equipment, security and handheld devices that require high-quality and color image display. For easy connection to your host, the FFC/FPC tail is used in conjunction with an easily accessible plug socket.


Mechanical Specifications



Item Specification Unit
DISPLAY SIZE 2.2 inch
OUTLINE DIMEMSIONS 43*56.16*2.3 mm
Driver IC ILI9225G -
Interface tYPE 4-SPI -


2.2 inch SPI QCIF TFT Product Drawing

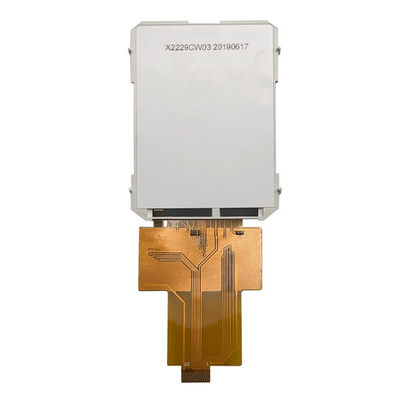

Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP 0

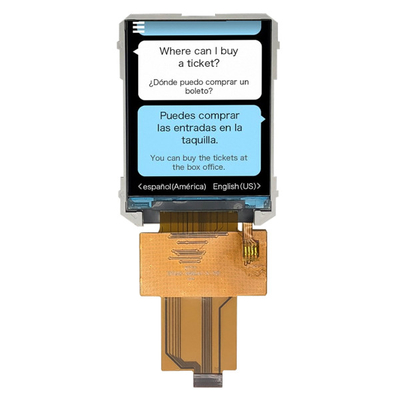

Graphic TFT Screen 2.2 Inch SPI TFT LCD Display Screen Module With/WO RTP 1

PIN Description



NO. PIN NAME I/O Description
1 GND I Ground
2 RESET I LCM Reset input signal
3 SCL I In Serial Interface, this is used as SCL.
4 D/C I In 4-line SPI, this pin is used as D/CX (data/ command selection).
5 CSX I Input pin for chip selection signal
6 SDA/SDO I Date input/ data output
7 NC - -
8 GND I Ground
9 VCC I Power Supply 2.8V Voltage
10 A O LED Anode
11-14 K1-K4 O LED Cathode


Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C



Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Supply Voltage Vf 3.0 3.2 3.4 V If=60 mA
Supply Current If - 60 - mA -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 19.2 - mW -
Luminous Intensity for LCM



-

200 250 - Cd/m2 If=60 mA
Uniformity for LCM - 80 - - If=60 mA
Backlight Color White


Optical Characteristics



No. ITEM Symbol Conditions Specification Unit
Min Typ Max
1 Response Time Tr+Tf 25℃ - 20 - Ms
2 Transmittance (With PL) T(%) - - 5.0 - -
3 Contrast Rate Cr

θ=0,

Normal viewing angle

- 500 - -
4

Viewing Angle



Hor. θR CR>10 - 55 - Deg
θL - 55 -
Ver. Θ+ - 55 -
