Product Details:
|
| Keywords: | 7 Inch Capacitive Touchscreen TFT | Touch Screen: | CTP(Capacitive Touch Screen) |
|---|---|---|---|
| Resolution: | 1024x600 Dots | Cover Glass Dimension: | Konning Gorilla 2 |
| LCM Interface: | RGB | Surface Luminance: | 1000 Nits |
| EMI: | With EMI Shielded | Surface Hardness: | >7H |
| Shock Resistance: | IK08 | LED Lifetime: | 40,000 Hours |
| Pins: | 50 Pins | Viewing Direction: | All Viewing Angle(80/80/80/80) |
| Dustproof: | With 3M VHB | CTP Interface: | I2C |
| Operating Temp.: | –30℃ To +75℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | Ik08 TFT Display,Glass 3mm TFT Display |
||
Product Introduction
SAEF Technology SFTO700XC-7026ACT uses Corning Gorilla 3mm glass as the cover plate, which has IK08 impact resistance and a surface hardness of up to 7H. There are multiple functional options for glass surface treatment, such as antibacterial, waterproof, anti fingerprint, anti glare, and anti reflection. We can customize according to the specific requirements of our customers. The size of the cover glass can be customized according to the customer's application. To achieve dust prevention, we will apply 3M VHB on the steps on the back of the glass, which can completely prevent dust from entering the user's device. In the design of this product, we also carried out anti-static treatment. Through contact static electricity testing, the static electricity level of the product/user equipment reached 8KV, and through air static electricity testing, it reached 10KV. Another application option is that the product can have perfect touch effects, whether barehanded or wearing plastic gloves.
SAEF Technology SFTO700XC-7026ACT is currently used by customers with a brightness of 1000nits. At the same time, we have different surface brightness of 300nits, 500nits and 1500nits to meet the needs of users in different environments.
Product Quick Details
1. LCD Size: 7” inch TFT
2. Resolution: 1024x600
3. Viewing Angle: Free, All viewing angles
4. Outline Dimension: 164x97x2.6mm
5. LCM Interface Type: RGB
6. CTP Interface Type: I2C
7. Temperature: Top -30°C to +75°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
Specification
| Feature | Specifications | |
| Display Spec. | LCD type | 7.0 inch |
| Resolution (H*V) | 1024(RGB)×600 | |
| Technology Type | a-Si TFT | |
| Pixel Configuration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Surface Treatment | Glare | |
| Viewing Direction | All | |
| Gray Scale Inversion Direction | No | |
|
Mechanical Characteristics |
OutlineDimensions (W x H x T) (mm) | 218.42*146.9*9.55 |
| Active Area(mm) | 154.21*85.92 | |
| With /Without Touch screen | With CTP | |
| Match Connector Type | 50PIN 0.5PITCH | |
| Backlight Type | LED | |
| Weight (g) | TBD | |
| Electrical Characteristics | Interface | RGB |
| Number of color | 16.7M | |
| Driver IC | HX8282A11 HX8696A01 | |
| CTP IC | GT928 | |
Drawing
| No. | Pin Name | Description |
| 1 | LED-A1 | Power voltage for LED backlight Anode |
| 2 | LED-A2 | Power voltage for LED backlight Anode |
| 3 | LED-K1 | Power voltage for LED backlight Cathode |
| 4 | LED-K1 | Power voltage for LED backlight Cathode |
| 5 | GND | Power ground |
| 6 | VCOM | VCOM voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE or HV mode control.H:DE mode.L:HSD/VSD mode |
| 9 | DE | Data enable |
| 10 | VS | Vsync signal input |
| 11 | HS | Hsync signal input |
| 12 | B7 | BLUE Data Signal(MSB) |
| 13 | B6 | BLUE Data Signal |
| 14 | B5 | BLUE Data Signal |
| 15 | B4 | BLUE Data Signal |
| 16 | B3 | BLUE Data Signal |
| 17 | B2 | BLUE Data Signal |
| 18 | B1 | BLUE Data Signal |
| 19 | B0 | BLUE Data Signal(LSB) |
| 20 | G7 | GREEN Data Signal(MSB) |
| 21 | G6 | GREEN Data Signal |
| 22 | G5 | GREEN Data Signal |
| 23 | G4 | GREEN Data Signal |
| 24 | G3 | GREEN Data Signal |
| 25 | G2 | GREEN Data Signal |
| 26 | G1 | GREEN Data Signal |
| 27 | G0 | GREEN Data Signal(LSB) |
| 28 | R7 | RED Data Signal(MSB) |
| 29 | R6 | RED Data Signal |
| 30 | R5 | RED Data Signal |
| 31 | R4 | RED Data Signal |
| 32 | R3 | RED Data Signal |
| 33 | R2 | RED Data Signal |
| 34 | R1 | RED Data Signal |
| 35 | R0 | RED Data Signal(LSB) |
| 36 | GND | Power ground |
| 37 | DCLK | DOT CLOCK |
| 38 | GND | Power ground |
| 39 | L/R | Select left or right scanning direction. |
| 40 | U/D | Select up or down scanning direction. |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power voltage for Analog circuit. |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | VCOM voltage |
| 47 | DITHB |
Dithering function.H:6bit resolution(last 2bit of input data Truncated) L:8bit resolution (default setting) |
| 48 | GND | Power ground |
| 49 | NC | No connection |
| 50 | NC | No connection |

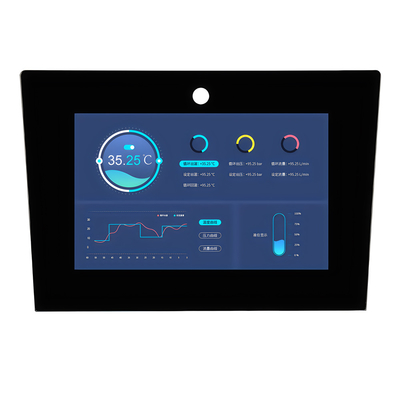

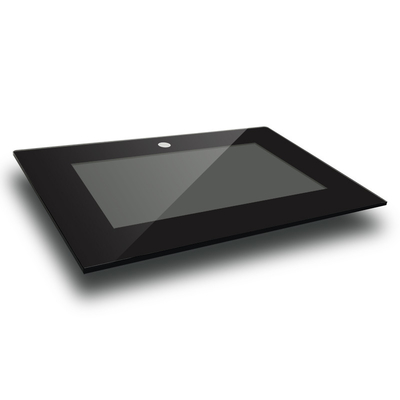

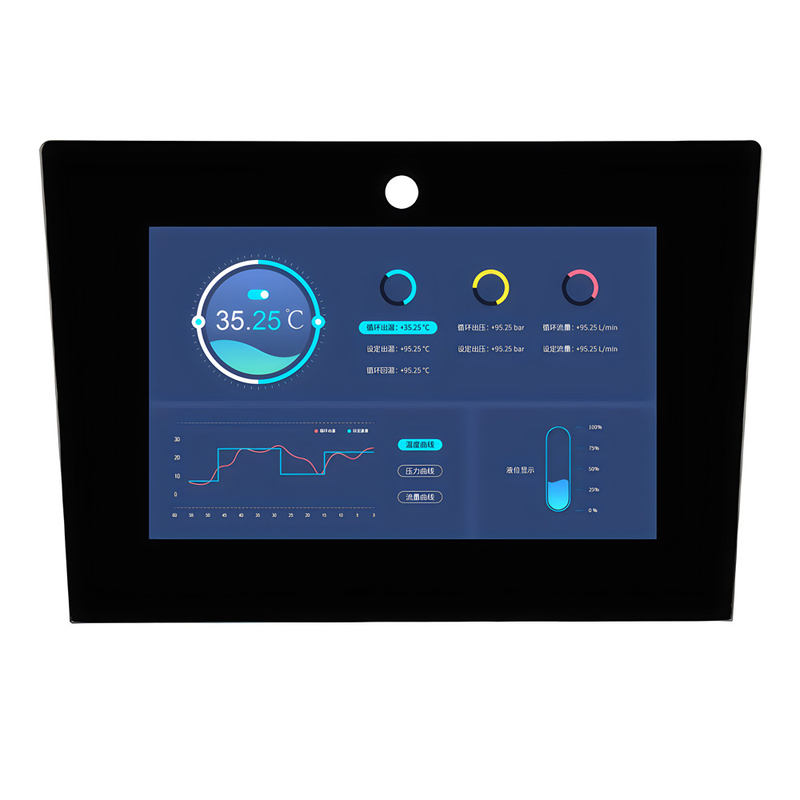

Product Image
