Description
Product: 1.22 Inch TFT LCD Touch Screen: Without Touch (with CTP Optional )
Resolution: 240*204 Dots Cover Glass Dimension: Customizable
Viewing Direction: IPS ( All Viewing Angle ) Interface: SPI
Pin Number: 13 Pins Outline Dimension: 33.66 X 33.02 X 1.5 Mm
Connection: ZIF FPC Surface Luminance: 300 Cd/m2(nits)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

1.22 Inch TFT LCD Display

,

SPI Interface TFT LCD Display



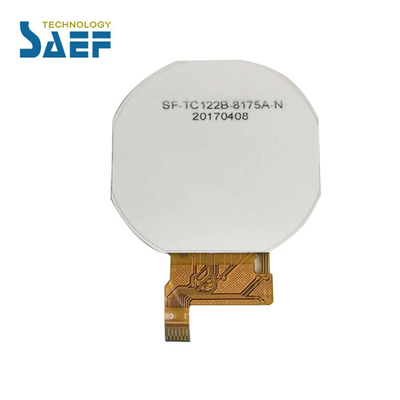

1.22 Inch TFT LCD Display 240x204 Pixels SPI Interface Product Introduction



Product Quick Review



  • Model No. SF-TC122B-8175A-N
  • Resolution : 240×204 dots
  • View Direction : IPS, All Viewing Angles
  • Controller IC: ST7789V
  • Brightness (cd/m²): 300
  • Touch Panel : Without
  • with Capactive Touchscreen version SF-TC122B-8175A-CT1



Description

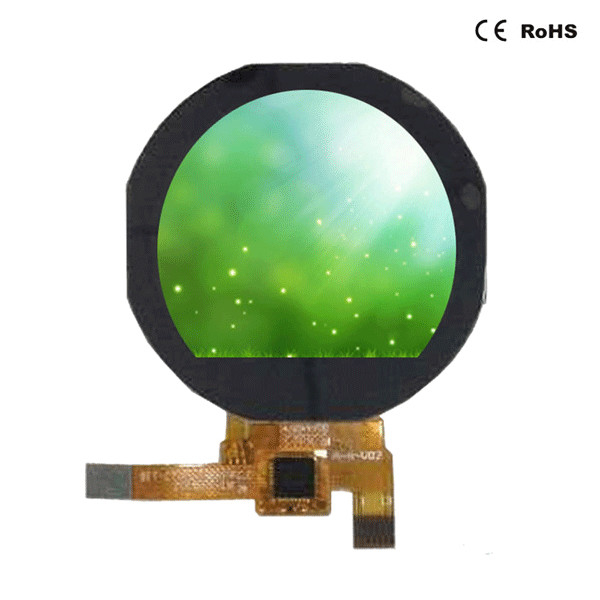

SF-TC122B-8175A-N is a 1.22 inch diagonal 240x204 full color round TFT LCD screen display. it supports SPI interface, widely used for Wearable devices, Round Display, MP3 player, Handheld devices etc. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.


SF-TC122B-8175A-N is circular mode TFT-LCD featured with brightness 300 nits (typical value). it can be operated at temperatures from -20°C to +70°C, its storage temperatures range from -30°C to +80°C. as 1.22 inch round TFT display module widely used in various application, we customize spi mcu RGB interface with different length of tail. drawings as below for your detailed checking.





1.22 Inch TFT LCD Display 240x204 Pixels SPI Interface Product Drawing


1.22 Inch TFT LCD Display Manufacturer China 240x204 Dot Resolution SPI Interface 0

PIN Definition



NO. PIN NAME I/O Description
1 LEDK2 O LED Cathode
2 LEDK1 O LED Cathode
3 LEDA O LED Anode
4 GND I Ground
5 FMARK I Tearing effect output pin to synchronies MCU to frame writing, activated by S/W command.
6 SDA I Display Data input signal
7 SCLK I In Serial Interface, this is used as SCL.
8 RS I Display data/command selection pin in 4-line serial interface.
9 CS I Input pin for chip selection signal
10 RESET I LCM Reset input signal
11 IOVCC I Power Supply 2.8V/1.8V Voltage
12 VCC I Power Supply 2.8V Voltage
13 GND I Ground


Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage for logic VDD 1.6~3.3 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -20 to 70 °C
Storage temperature Tstg -30 to 80 °C



DC Characteristics (VDD=2.8V,Ta=25°C)



Item Symbol Min Type Max Unit Test condition
Operating voltage VDD 2.6 2.8 3.3 V -
Supply current IDD - - 5 mA VDD=2.8V,Ta=25°C
Input voltage VIH 0.8VDD - VDD V -
VIL 0 - 0.2VDD V
Input leakage current IIL -1.0 - 1.0 mA VIN=VDD or VSS


Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT

Test

Condition

Note
Supply Voltage Vf   6.4   V If=20AMA -
Supply Current If - 20 - mA - -
Reverse Voltage Vr - - 5 V -
Power dissipation Pd - 96 - mW -
Luminous Intensity for LCM



-

- 300 - Cd/m2 If=20MA -
Uniformity for LCM - 80 - - If=20MA -
Backlight Color White


Optical Characteristics



No. ITEM Symbol Conditions Specification Unit Note
Min Typ Max
1 Response Time Tr+Tf 25℃ - 25 - Ms (1)(2)
2 Transmittance (With PL) T(%) - - 7.1 - - -
3 Contrast Rate Cr

θ=0,

Normal viewing angle

300 500 - - (1)(3)
4

Viewing

Angle



Hor. θR CR>10   80 - Deg -
θL   80 -
Ver. Θ+ - 80 -
Θ- - 80 -
