Product Details:
|
| Product: | 2.4"inch TFT LCD | Touch Screen: | Without Touch Screen (Customizable) |
|---|---|---|---|
| Resolution: | 240x320 Dots | Cover Glass Dimension: | Without (Customizable) |
| Viewing Direction: | 12:00 | Interface: | MPU 16 |
| Pin Number: | 40 Pins | Connection: | Plugging (customizable） |
| Surface Luminance: | 200 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7789V | Compliance: | REACH & RoHS Compliant |
| Highlight: | MCU Interface TFT LCD Display,240x320 Dots TFT LCD Display,2.4 Inch TFT LCD Display |
||

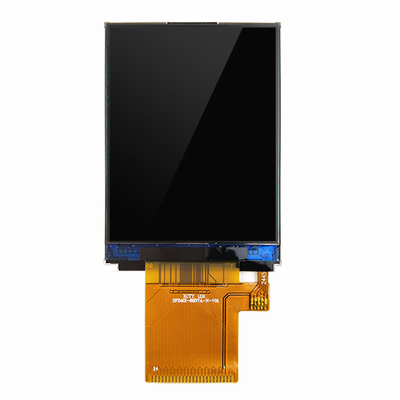

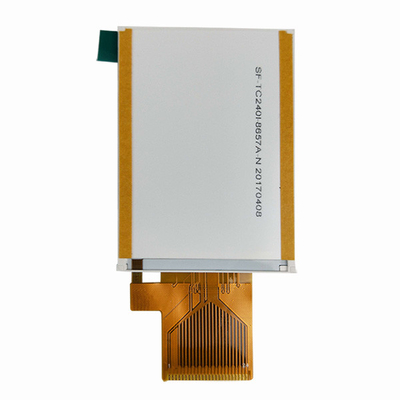

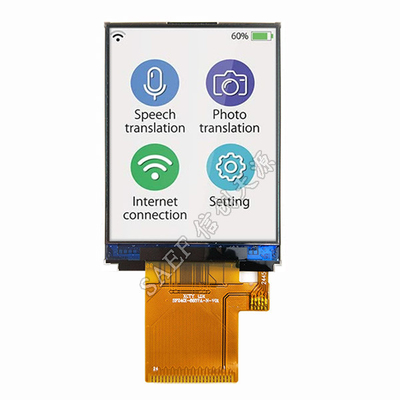

TFT LCD 2.4 Inch 240x320 Dots, 2.4" TFT Display MCU Interface ZIF FPC Connection
Product Quick Review:
►Model No. SF-TC240I-8657A-N
►2.4" TFT SPI 240x320
►Size: 2.4 inch
►Resolution : 240×320 dots
►View Direction:12H
►Interface: MCU
►Driver IC:ST7789V
►Control-Board: No
►Brightness(cd/m²): 200
►Frame Through Hole: No
►Touch Screen: Without Touch Screen
SF-TC240I-8657A-N is a diagonal size 2.4-inch TFT-LCD module with resolution 240x320 pixels. This module is built in with ST7789V IC; it supports MPU interface, supply voltage for analog (VCC) range from 2.5V to 3.0V. This module is having Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, contrast ratio 500:1.
SF-TC240I-8657A-NTFT-LCD module is Portrait mode with brightness 200 nits (typical value). The module also is available for Resistive Touch Screen (RTP) optional. SF-TC240I-8657A-N can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Features:
| Product: | 2.4"inch TFT LCD | Touch Screen: | Without Touch Screen (Customizable) |
|---|---|---|---|
| Resolution: | 240x320 Dots | Cover Glass Dimension: | Without (Customizable) |
| Viewing Direction: | 12:00 | Interface: | MPU 16 |
| Pin Number: | 40 Pins | Connection: | Plugging (customizable) |
| Surface Luminance: | 200 Cd/m2(nits) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7789V | Compliance: | REACH & RoHS Compliant |
2.4" inch TFT LCD Display Drawing
| NO. | PIN NAME | I/O | Description |
| 1 | VCC | I | Power Supply 2.8V Voltage |
| 2 | GND/K | I | Ground |
| 3 | LEDA | O | LED Anode |
| 4 | RESET | I | LCM Reset input signal |
| 5 | CS | I | Input pin for chip selection signal |
| 6 | RS | I | Register select signal |
| 7 | WR | I | Write strobe signal input pin |
| 8 | RD | I | Read strobe signal input pin |
| 9-24 | DB0-DB15 | I/O | Display Data I/O |
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 1.6~3.3 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20 to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Item | Symbol | Min | Type | Max | Unit | Test Condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | – |
| Supply current | IDD | – | – | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | – | VDD | V | – |
| VIL | 0 | – | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | – | 1.0 | mA | VIN=VDD or VSS |
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | 3.2 | V | If=80mA | ||
| Supply Current | If | – | 80 | – | mA | – |
| Reverse Voltage | Vr | – | – | 5 | V | – |
| Power dissipation | Pd | – | 288 | – | mW | – |
| Luminous Intensity for LCM |
– |
– | 200 | – | Cd/m2 | If=80mA |
| Uniformity for LCM | – | 80 | – | – | ％ | If=80 mA |
