Product Details:
|
Product: | 3.5 Inch TFT Display | Resolution: | 320X240 Dots |
---|---|---|---|
Touch Screen: | With PCAP Touch Screen | Cover Lens: | Customizable |
Viewing Direction: | 6 O'clock | Interface: | RGB Interface |
Outline Dim.: | 76.9x63.9x4.65 Mm | Pin Number: | 54 Pins |
Backlight Supply Current: | 20 MA | Backlight Supply Voltage: | 19.2 V |
Connection: | ZIF FPC | Surface Luminance: | 320 Cd/m2 (nits) |
Power Supply Voltage For Logic: | 1.6~3.3 V | Input Voltage: | VDD+0.3 V |
Operating Temperature: | -20 To 70 °C | Storage Temperature: | -30 To 80 °C |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | 3.5" TFT LCD Screen,Capacitive Touchscreen TFT LCD Screen,RGB Interface TFT LCD Screen |
3.5" Capacitive Touchscreen TFT, 3.5" TFT LCD Screen 320x240 RGB Interface Product Introduction
Product Quick Review

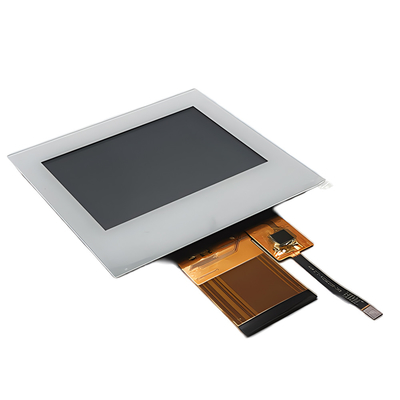

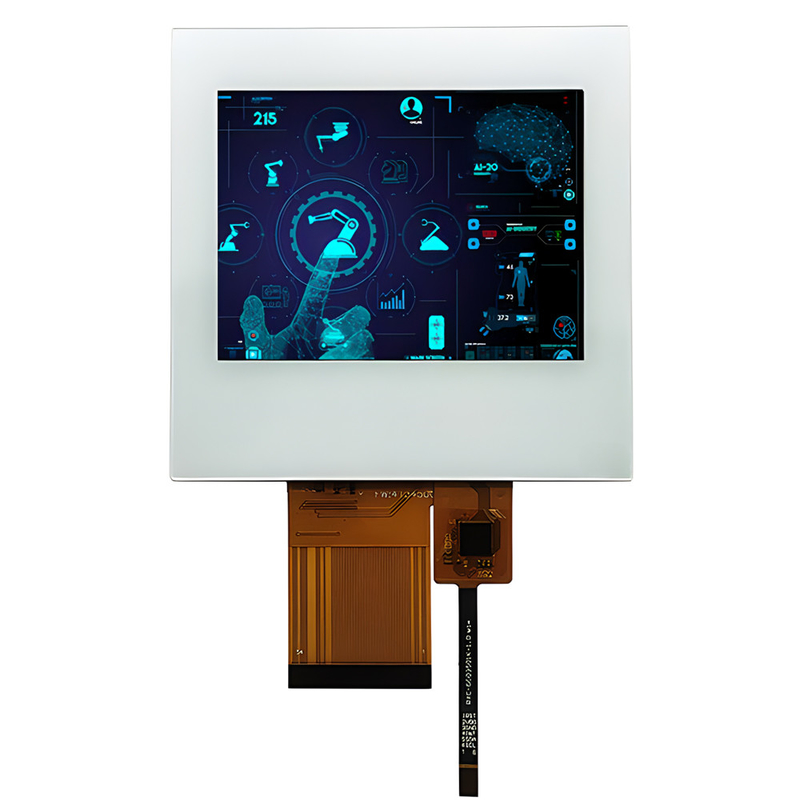

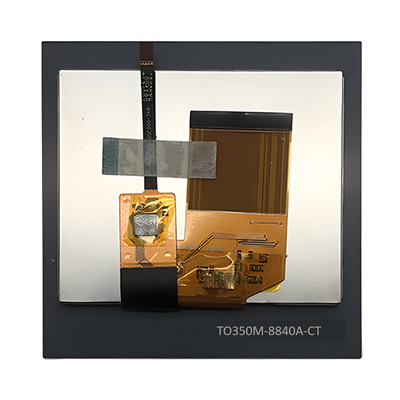

►Model No. SF-TO350M-8840A-CT
►3.5" TFT Touch Screen, 3.5" TFT LCD Screen
►Resolution : 320x240 dots
►View Direction : 6H
►Interface : RGB
►Driver IC : HX8238
►Brightness(cd/m²) : 300
►Touch Screen : Projected capacitive touch screen (PCAP)
►Detect Point : 5 Fingers
Description
SAEF TECHNOLOGY SF-TO350M-8840A-CT is a 3.5-inch liquid crystal display unit that uses thin film transistors as active components and includes pixels. This model consists of a single 3.5 (4:3) inch transparent TN-LCD main panel. The resolution of this panel is 320 (RGB) x 240 pixels, and it can display up to 167M colors.
SF-TO350M-8840A-CT is equipped with a PCAP touch screen, which is a G+G structure. SF-TO350M-8840A-CT supports RGB interface, and the touch screen is IIC interface.
The SF-TO350M-8840A-CT TFT LCD module is widely used in handheld devices such as black boxes, smart devices, mobile POS, cash readers, GPS handheld phones, handheld ordering machines, signal analyzers, desktop laboratory equipment, security systems, home automation, mini audio players, and baby monitors.
Features
Product: | 3.5 inch TFT Display |
Resolution: | 320X240 Dots |
Cover Lens: | Customizable |
Interface: | RGB Interface |
Pin Number: | 54 Pins |
Touch Screen: | With PCAP Touch Screen |
Surface Luminance: | 320 Cd/m2 |
Viewing Direction: | 6 O'clock |
Outline Dim.: | 76.9x63.9x4.65 (mm) |
Backlight Supply Current: | 20 mA |
Backlight Supply Voltage: | 19.2 V |
Connection: | ZIF FPC |
Input Voltage: | VDD+0.3 V |
Power Supply Voltage For Logic: | 1.6~3.3 V |
Operating Temperature: | -20 To 70 °C |
Storage Temperature: | -30 To 80 °C |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant |
Pin | Symbol | Function |
---|---|---|
1~2 | LED- | Power for LED backlight cathode |
3~4 | LED+ | Power for LED backlight anode |
5~7 | NC | No connect |
8 | /RESET | Hardware reset |
9 | SPENA | Chip select pin of serial interface |
10 | SPCLK | Clock pin of serial interface (SPCK) |
11 | SPDAT | Data input pin in serial mode (SPDA) |
12~19 | B0~B7 | Data bus |
20~27 | G0~G7 | Data bus |
28~35 | R0~R7 | Data bus |
36 | HSYNC | Line synchronization signal |
37 | VSYNC | Frame synchronization signal |
38 | DCLK | Dot-clock signal and oscillator source |
39~40 | NC | No connect |
41~42 | VCC | Power Supply |
43~47 | NC | No connect |
48~50 | SEL2~SEL0 | Input pin to select input interface mode |
51 | NC | No connect |
52 | DE | Display enable pin from controller. Internal pull high Connect to VDDIO or floating if not used. |
53 | DGND | System ground pin of the IC. Connect to system ground. |
54 | AVSS | Grounding for analog circuit. Connect to system ground. |
Item | Symbol | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Supply Voltage For LCM | VCC | 1.6 | 2.8 | 3.3 | V |
Supply Current For LCM | ICC | - | 8.6 | 15 | mA |
Supply PCAP | VDDT | 3.0 | 3.3 | 3.6 | V |
ICTP | - | 45 | 68 | mA |
