Product Details:
|
Product: | 4.3 Inch TFT LCD Display | Resolution: | 480x800 Pixels |
---|---|---|---|
Interface: | RGB | Viewing Direction: | All Viewing Angles (IPS) |
Touch Screen: | With Resistive Touch Screen | Surface Luminance: | 300 Cd/m2 ( Customizable ) |
Driver IC: | HX8369-A01 | Driving Voltage: | 2.8 V |
Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
Connection: | ZIF FPC ( Customizable ) | Compliance: | REACH & RoHS Compliant |
Highlight: | Resistive Touch Screen RGB TFT Display,480x800 RGB TFT Display,Vertical LCD RGB TFT Display |
4.3 Inch RGB TFT Display 480x800 Pixel With Resistive TouchScreen Product Introduction
Product Quick Review
►Size : 4.3 inch IPS TFT Display
►Resolution : 480 x 800 dots
►View Direction : IPS all viewing angles
►Interface : RGB
►Driver IC:HX8369
►Control-Board : No
►Brightness (cd/m²): 300
►Touch Screen : Resistive Touch Panel
Product Description
SAEF TECHNOLOGY SF-TC430S-8501A-T is a 4.3-inch full TFT-LCD display with a resolution of 480x800 (480 horizontal x 800 vertical pixel array). The power supply voltage (VCC) for driving the LCD panel is 2.6V to 3.3V, with a typical voltage of 2.8V. It supports RGB interface. This 4.3 inch touchscreen module can be used for high-quality color images that require TFT display in embedded systems, automation, GPS, medical equipment, industrial equipment, security equipment, etc.
SF-TC430S-8501A-T is an IPS-LCD type TFT with a brightness of 300 cd/m2 (typical value), suitable for applications that require brighter backlight. Please contact our sales representative. The surface brightness can be customized to 1000cd/m2. This resistive touch screen TFT 4.3-inch display can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
Product Information
Product: | 4.3 Inch TFT LCD Display |
Resolution: | 480x800 Pixels |
Interface: | RGB |
Viewing Direction: | All Viewing Angles (IPS) |
Touch Screen: | With Resistive Touch Screen |
Surface Luminance: | 300 Cd/m2 ( Customizable ) |
Driver IC: | HX8369-A01 |
Driving Voltage: | 2.8 V |
Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
Connection: | ZIF FPC ( Customizable ) |
Compliance: | REACH & RoHS Compliant |
4.3 Inch RGB TFT Display 480x800 Pixel With Resistive TouchScreen Product Drawing
Pin Definition
NO. | Pin Name | I/O | Description |
1 | GND | I | Ground |
2 | LEDA | O | LED Anode |
3 | LEDK | O | LED Cathode |
4 | VCC | I | Power Supply 2.8V Voltage |
5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
6 | SDO | I | Serial onput signal |
7 | SDI | I | Serial input signal |
8 | GND | I | Ground |
9 | SCL_WR | I | Read strobe signal input pin |
10 | CS | I | Input pin for chip selection signal |
11 | NC | I | NC |
12 | RESET | I | LCM Reset input signal |
13-20 | R0-R7 | I/O | Display Data I/O |
21-28 | G0-G7 | I/O | Display Data I/O |
29-36 | B0-B7 | I/O | Display Data I/O |
37 | DE | I | Data Enable Signal for RGB Interface Operation |
38 | GND | I | Ground |
39 | PLK | I | Dot Clock Signal for RGB Interface Operation |
40 | GND | I | Ground |
41 | HS | I | Line Horizontal Synchronizing Signal |
42 | VS | I | Frame Vertical Synchronizing Signal |
43 | ID | - | - |
44 | PWM | I | This pin is connected to the external LED driver. |
45-46 | GND | I | Ground |
47 | YU | O | Touch Panel Pin |
48 | XL | O | Touch Panel Pin |
49 | YD | O | Touch Panel Pin |
50 | XR | O | Touch Panel Pin |
51 | GND | I | Ground |
DC Characteristics
Item | Symbol | Min | Type | Max | Unit | Test condition |
Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | - |
Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
Input voltage | VIH | 0.8VDD | - | VDD | V | - |
VIL | 0 | - | 0.2VDD | V | ||
Input leakage current | IIL | -1.0 | - | 1.0 | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
Note |
Supply Voltage | Vf | - | 25.6 | - | V | If=20 mA | - |
Supply Current | If | - | 20 | - | mA | - | - |
Reverse Voltage | Vr | - | - | 5 | V | - | |
Power dissipation | Pd | - | - | - | mW | - | |
Luminous Intensity for LCM |
- |
- | 300 | - | Cd/m2 | If=20mA | - |
Uniformity for LCM | - | 80 | - | - | % | If=20 mA | - |
Backlight Color | White |

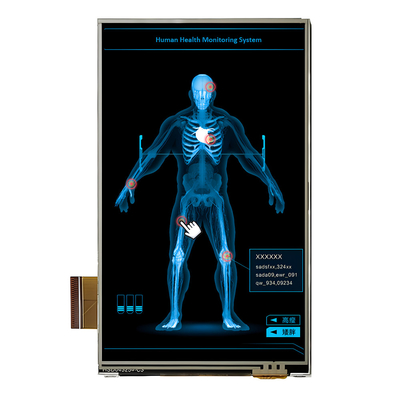

4.3 Inch RGB TFT Display 480x800 Pixel With Resistive TouchScreen Product Image
TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
