Product Details:
|
Product: | 4.3 Inch TFT Display | Resolution: | 480x272 |
---|---|---|---|
Viewing Direction: | IPS, All Viewing Angles | Driver IC: | ST7283 |
Touch Screen: | No (RTP And CTP Optional) | Pin Number: | 40 Pins |
Connection: | ZIF FPC 46mm | Surface Luminance: | 500 Cd/m2 (nits) |
Operating Voltage: | 3.3V | Interface: | RGB |
Operating Temp.: | 20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | 480*272 Pixel TFT LCD Display,4.3 Inch TFT LCD Display |

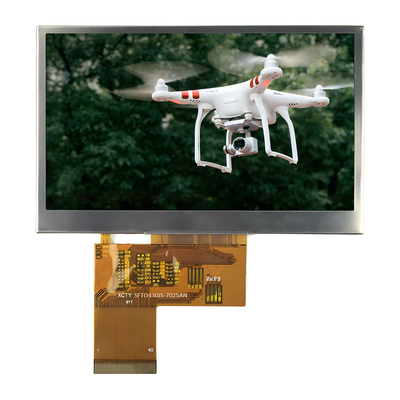

4.3 Inch IPS 480*272 Pixel TFT LCD Display, RGB 4.3 Inch TFT Screen Product Introduction
Product Quick Review
►4.3 inch TFT LCD Module, 4.3" TFT Module
►Resolution : 480x272 dots
►View Direction : IPS, All Viewing Angles
►Interface : RGB
►Operating Temp.: -20℃ To +70℃
►Driver IC:ST7283
►Control-Board : No
►Brightness (cd/m²): 500
►Frame Through Hole: No
►Touch Panel : Resistive Touchscreen
Description
This RGB 4.3-inch display has sufficient brightness and can provide brightness of 300nits, 500nits, 1000nits, 1500nits for indoor or outdoor use. In addition, thanks to IPS technology and 16 million colors, it looks great from any angle.
This touchscreen display uses resistive touch sensing, making it an excellent choice for outdoor use. Raindrops will not be recorded as touch, and users can wear gloves.
This touchless 4.3 inch monitor shares the same pin output as our resistive and capacitive touch displays.
Product Information
Product: | 4.3 Inch TFT Display |
Resolution: | 480x272 |
Surface Luminance: | 500 Cd/m2 (nits) |
Viewing Direction: | IPS, All Viewing Angles |
Interface: | RGB |
Driver IC: | ST7283 |
Pin Number: | 40 Pins |
Touch Screen: | No (RTP and CTP optional) |
Connection: | ZIF FPC 46mm |
Operating Voltage: | 3.3V |
Operating Temp.: | 20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
LED Lifetime: | 40,000 Hours |
Compliance: | REACH & RoHS Compliant |
4.3 Inch IPS 480*272 Pixel TFT LCD Display, RGB 4.3 Inch TFT Screen Product Drawing
Pin Definition
No. | Pin name | I/O | Description |
1 | LED-K | I | LED Cathode |
2 | LED-A | I | LED Anode |
3 | VSS | I | Power Ground |
4 | VDD | I | Power Source |
5- 12 | R00-R07 | I | RED Data Signal (LSB) |
13-20 | G00-G07 | I | GREEN Data Signal(LSB) |
21-28 | R00-R07 | I | BLUE Data Signal(LSB) |
29 | VSS | I | Power Ground |
30 | DLCK | I | Clock Signal to Sample each date |
31 | DISP | I | Display ON/OFF Signal |
32 | HSYNC | I | Horizontal Synchronizing Signal |
33 | VSYNC | I | Vertical Synchronizing Signal |
34 | DE | I | Input Data enable control |
35 | NC | - | Set Open |
36 | GND | I | Power Ground |
37 | XR | I | Touch Panel PIN |
38 | YD | I | Touch Panel PIN |
39 | XL | I | Touch Panel PIN |
40 | YU | I | Touch Panel PIN |
Maximum Absolute Limit
Item | Symbol | Value | Unit |
Power supply voltage for logic | VDD | 3.0-3.6 | V |
Input voltage | Vin | VDD+0.3 | V |
Operating temperature | Topr | -20 to 70 | °C |
Storage temperature | Tstg | -30 to 80 | °C |
Item | Symbol | Min | Type | Max | Unit | Test condition |
Operating voltage | VDD | 3.0 | 3.3 | 3.6 | V | - |
Supply current | IDD | - | TBD | - | mA | VDD=3.3V,Ta=25°C |
Input voltage | VIH | 0.7VDD | - | VDD | V | - |
VIL | 0 | - | 0.3VDD | V | ||
Input leakage current | IIL | - | TBD | - | mA | VIN=VDD or VSS |
Backlight Electrical-optical Characteristics
Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
Note |
Supply Voltage | Vf | 20.3 | 22.4 | 24 | V | If=20mA | - |
Supply Current | If | - | 20 | - | mA | - | - |
Reverse Voltage | Vr | - | - | 5 | V | - | |
Power dissipation | Pd | - | 448 | - | mW | - | |
Luminous Intensity for LCM |
- |
- | 500 | - | Cd/m2 | If=20mA | - |
Uniformity for LCM | - | 70 | 75 | - | % | If=20mA | - |
Backlight Color | White |
