Product Details:
|
| Product: | 2 Inch TFT LCD Display | Resolution: | 480x360 Dots |
|---|---|---|---|
| Interface: | MIPI (RGB Optional) | Surface Luminance: | 350 Cd/m2(nits) |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) | Touch Screen: | Without |
| LCD Controller: | ST7701S | Cover Glass Dimension: | Customizable |
| Connection: | ZIF FPC | Operating Temp: | -20°C To +70°C |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 2 Inch TFT LCD Display,480x360 Pixels TFT LCD Display |
||
2 Inch TFT LCD Display 480x360 Pixels IPS MIPI Interface Product Introduction
Saef Technology SFTO200HC-7137AN is a TFT LCD module with a diagonal size of 2 inches and a resolution of 480x360 pixels. This 2-inch LCD display module is equipped with an ST7701S integrated circuit, which includes controller and driver IC functions, and supports MIPI interface, RGB interface optional. The power supply voltage (Vdd) range of this 2-inch LCD monitor ranges from 2.6V to 3.3V (typical value of 2.8V). The viewing direction of this 2-inch module is IPS type, with a full view angle (85/85/85/85 max).
The SFTO200HC-7137AN display module is displayed in horizontal mode with a brightness of 350 nits, and can be customized to 1000 nits according to customer requirements. This 2-inch IPS TFT LCD can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃. Whether used indoors or outdoors, this 2-inch IPS TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial equipment, scanners, home automation, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and a wide range of applications.
General Information
| Product: | 2 Inch TFT LCD Display |
| Resolution: | 480x360 Dots |
| Interface: | MIPI (RGB Optional) |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller: | ST7701S |
| Surface Luminance: | 350 Cd/m2(nits) |
| Touch Screen: | Without |
| Cover Glass Dimension: | Customizable |
| Operating Temp: | -20°C To +70°C |
| Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours |
| Compliance: | REACH & RoHS Compliant |
2 Inch TFT LCD Display 480x360 Pixels IPS MIPI Interface Product Drawing
Pin Definition
Pin1, RST
Pin2, NC
Pin3, NC
Pin4, GND
Pin5, DSI_TE
Pin6, DATA0_N
Pin7, LEDA
Pin8, DATA0_P
Pin9, LEDA
Pin10, GND
Pin11, LEDK
Pin12, CLK_N
Pin13, LEDK
Pin14, CLK_P
Pin15, VDD2V8
Pin16, GND
Pin17, GND Power Ground
Pin18, VI01V8
Pin19, NC
Pin20, VI01V8
Pin21, NC
Pin22, NC
Pin23, NC
Pin24, NC
Pin25, NC

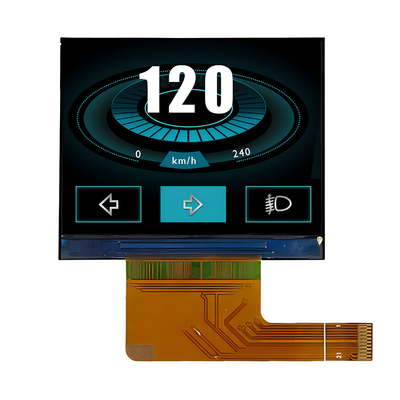

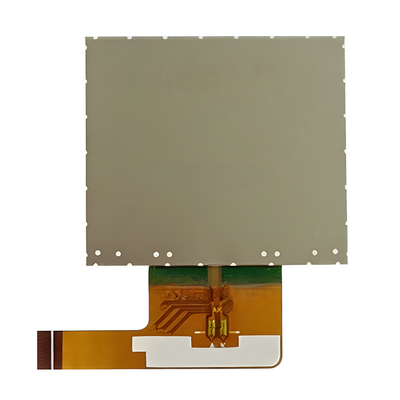

2 Inch TFT LCD Display 480x360 Pixels IPS MIPI Interface Product Image
Factory Facilities and Certificates
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
