Product Details:
|
Product: | 5 Inch TFT LCD Display | Resolution: | 720x1280 Dots |
---|---|---|---|
Interface: | MIPI | Touch Screen: | PCAP |
Viewing Direction: | IPS All Viewing Angle(85/85/85/85) | PCAP Structure: | GFF |
LCD Controller: | ILI9881C | CTP Controller: | GT5688 |
Cover Glass Dimension: | Customizable | Pin Number: | 25 Pins |
Connection: | ZIF FPC | Surface Luminance: | 300 Cd/m2(nits) |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | 5 Inch TFT Display Manufacturer,Portrait Type PCAP TFT Display,5 Inch PCAP TFT Display |
5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Introduction
Features
Product Information
Product: | 5 Inch TFT LCD Display |
Resolution: | 720x1280 Dots |
Interface: | MIPI |
Viewing Direction: | IPS All Viewing Angle(85/85/85/85) |
Touch Screen: | PCAP |
PCAP Structure: | GFF |
CTP Controller: | GT5688 |
LCD Controller: | ILI9881C |
Cover Glass Dimension: | Customizable |
Connection: | ZIF FPC |
Pin Number: | 25 Pins |
Surface Luminance: | 300 Cd/m2(nits) |
LED Lifetime: | 40,000 Hours |
Compliance: | REACH & RoHS Compliant |
5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Drawing
DC Characteristics
Note: Voltage greater than above may damage the module. All voltages are specified relative to VSS=0V.
Backlight Electrical-optical Characteristics
1. Uniformity = Min/Max * 100%
2. LED life time defined as follows:The final brightness is at 70% of original brightness;Measured Method: (X*Y: Light Area);
Optical Characteristics
Measure Conditions:1. Measure surrounding : dark room; 2. Ambient temperature: 25±2℃; 3. 30min.warm-up time.
TFT LCD Pin Definition
Pin1, LEDA LED Anode
Pin2, LEDK LED Cathode
Pin3, VCC Power Supply 2.8V
Pin4, IOVCC Power Supply 1.8V/2.8V Voltage
Pin5, GND Power Ground
Pin6, CLKP DSI-CLK+ clock signals
Pin7, CLKN DSI-CLK- clock signals
Pin8, GND Power Ground
Pin9, D0N DSI-D0- data signals
Pin10, D0P DSI-D0+ data signals
Pin11, GND Power Ground
Pin12, D1N DSI-D1- data signals
Pin13, D1P DSI-D1+ data signals
Pin14, GND Power Ground
Pin15, D2N NC DSI-D2- data signals
Pin16, D2P NC DSI-D2+ data signals
Pin17, GND Power Ground
Pin18, D3N NC DSI-D2- data signals
Pin19, D3P NC DSI-D2+ data signals
Pin20, GND Power Ground
Pin21, TE Power Supply 2.8V
Pin22, LCD_ID LCD_ID
Pin23, RESET Register select pin
Pin24, GND Power Ground
Pin25, GND Power Ground
CTP Pin definition
Pin1, GND
Pin2, SDA - 2.8V
Pin3, SCL - 2.8V
Pin4, VDD - 3.3V
Pin5, INT
Pin6, RST

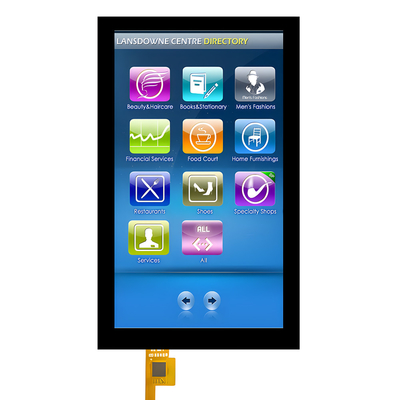

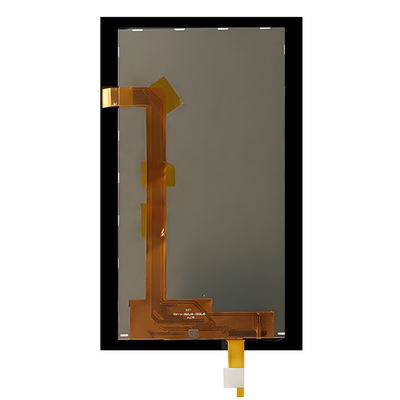

5 Inch TFT Display Manufacturer, Portrait Type 5 Inch PCAP TFT Display Image
Projected Capacitive (PCAP) Touch Screen
Projection capacitor (PCAP) touch technology provides fast and sensitive response and professional level reliability. Saef Technology's projection capacitive touch screen is designed specifically for rigorous industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
