Product Details:
|
Product: | 1.54 Inch PCAP TFT Display | Touch Screen: | With Capacitive Touch Screen |
---|---|---|---|
Resolution: | 320x320 | Viewing Direction: | IPS All Viewing Angles |
Driver IC: | ST7796S | Pin Number: | 12 Pins |
Connection: | Connector (OK-14GM012-04) | Surface Luminance: | 300 Cd/m2 (nits) |
Interface: | MIPI | LED Lifetime: | 40,000 Hours |
Operating Temperature: | -20 To 70 °C | Storage Temperature: | -30 To 80 °C |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
Highlight: | 320*320 Dots PCAP TFT Display,Capacitive PCAP TFT Display |
1.54 inch TFT LCD Display, 1.54" PCAP TFT display 320*320 dots Product Introduction
Features:
1. This 1.54 inch TFT display measures 1.54 inches diagonally and has a 320x320 square resolution.
2. This 1.54 inch PCAP TFT display is a full-color TFT LCD with capacitive touch screen (CTP), and CTP is the IIC interface.
3. This 1.54-inch TFT LCD module supports MIPI interfaces.
4. The module size of this 1.54 inch LCD screen is 31.52x33.72x1.15 mm (without touchscreen), 35.7x39.5x2.3 mm (with touchscreen), and the active area size is 27.74 x 27.74 mm.
5. This 1.54 inch capacitive touch screen has a built-in ST7796S controller with a logic supply voltage range of 2.6V to 3.3V.
6. This 1.54 inch TFT touch screen can work in temperatures from -20°C to +70°C, and its storage temperature range is -30°C to +80°C.
7. This 1.54 inch TFT LCD has a surface brightness of 300 cd/m2, if you want to use it as landscape mode or adjust the brightness, please contact us for more technical support.
8. This 1.54-inch TFT display imports signals through 12-pin connector part number: OK-14GM012-04.
9. 1.54-inch TFT LCD screen with optional 240 * 240 dots resolution, our model number SF-TC154B-8945B-N.
Product Information:
Product: | 1.54 Inch PCAP TFT Display |
Resolution: | 320x320 |
Touch Screen: | With Capacitive Touch Screen |
Viewing Direction: | IPS All Viewing Angles |
Pin Number: | 12 Pins |
Driver IC: | ST7796S |
Connection: | Connector (OK-14GM012-04) |
Interface: | MIPI |
Surface Luminance: | 300 Cd/m2 (nits) |
LED Lifetime: | 40,000 Hours |
Operating Temperature: | -20 To 70 °C |
Storage Temperature: | -30 To 80 °C |
Compliance: | Rohs & Reach Compliant |
Certificate: | ISO9001:2015 / ISO1400:2015 |
1.54 inch TFT LCD Display, 1.54" PCAP TFT display 320*320 dots Product Drawing
Pin Definition:
Pin1 GND I/O Ground
Pin2 CP I DSI-CLK+ clock signals
Pin3 CN I/O DSI-CLK- clock signals
Pin4 GND I Ground
Pin5 D0P I DSI-D0+ clock signals
Pin6 D0N I DSI-D0- clock signals
Pin7 GND I/O Ground
Pin8 LED+ I LED Anode
Pin9 LED- I/O LED Cathode
Pin10 RESET I/O LCM Reset input signal
Pin11 TE I Tearing effect output
Pin12 VCC I/O L Power Supply 2.8V

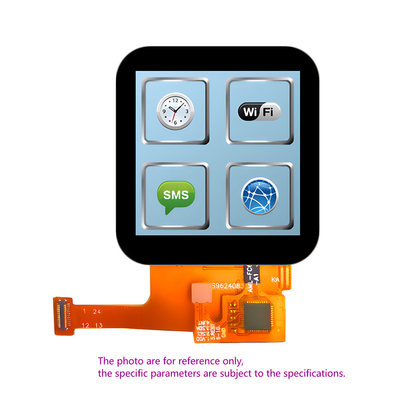

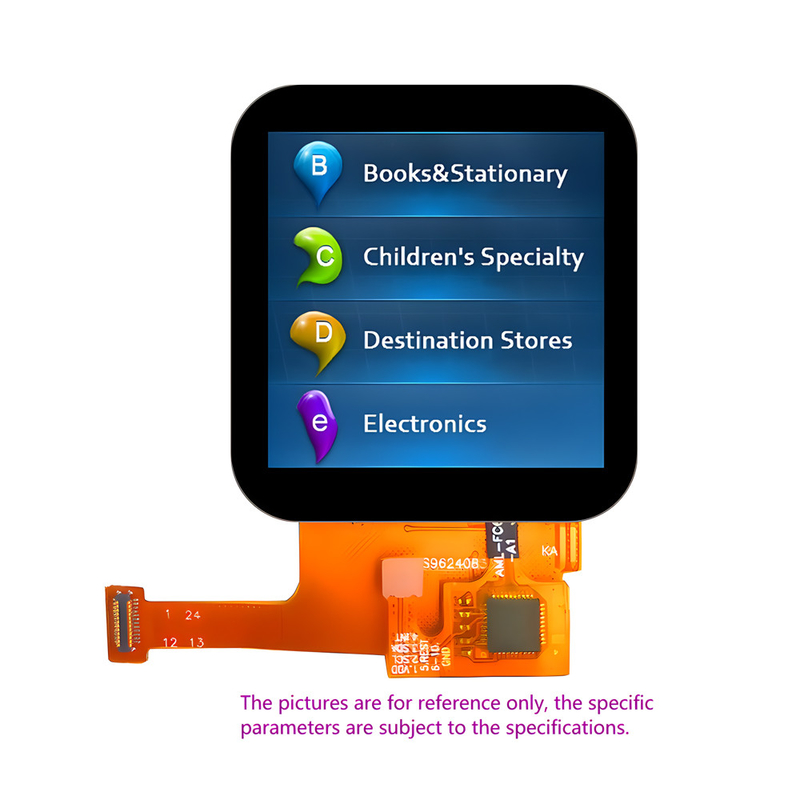

1.54 inch TFT LCD Display, 1.54" PCAP TFT display 320*320 dots Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) touch
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
