Product Details:
|
| Product: | 4 Inch (3.97") TFT Display With CTP | Resolution: | 480x800 |
|---|---|---|---|
| Interface: | SPI + RGB 24 Bits | Touch Screen: | With Capacitive Touch Screen |
| Viewing Direction: | IPS All Viewing Angles | Driver IC: | ST7701 |
| Pin Number: | 40 Pins | Connection: | ZIF |
| Surface Luminance: | 350 Cd/m2 (nits) | Operating Temperature: | -20 To 70 °C |
| Storage Temperature: | -30 To 80 °C | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
| Highlight: | IPS PCAP TFT Display,480*800 Dots PCAP TFT Display |
||
3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Introduction
Product Features
1. This 4-inch TFT display measures 3.97 inches (4 inches) diagonally and has a 480x800 portrait resolution.
2. This 4 inch PCAP TFT display is a full-color TFT LCD with capacitive touch screen (CTP), and CTP is the IIC interface.
3. This 4-inch TFT LCD module supports 3-wire SPI and RGB 24-bit interfaces.
4. The module size of this 4 inch LCD screen is 65.4*112.9*4.5 mm, and the active area size is 51.84 x 86.40 mm.
5. This 4 inch capacitive touch screen has a built-in ST7701S controller with a logic supply voltage range of 2.6V to 3.3V.
6. This 4 inch TFT touch screen can work in temperatures from -20°C to +70°C, and its storage temperature range is -30°C to +80°C.
7. This 3.97 inch TFT LCD has a surface brightness of 350 cd/m2, if you want to use it as landscape mode or adjust the brightness, please contact us for more technical support.
8. This 3.97-inch TFT display has 40 pins with ZIF connectors.
Product Information
| Product: | 4"inch TFT Display with CTP |
| Resolution: | 480x800 |
| Driver IC: | ST7701 |
| Connection: | ZIF |
| Interface: | SPI + RGB 24 Bits |
| Power Supply Voltage For Logic: | 0.3~4.6 |
| Touch Screen: | With Capacitive Touch Screen |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 40 Pins |
| Surface Luminance: | 350 Cd/m2 (nits) |
| LED Lifetime: | 40,000 Hours |
| Input Voltage: | VDD+0.3 V |
| Operating Temperature: | -20 To 70 °C |
| Storage Temperature: | -30 To 80 °C |
| Backlight Supply Current: | 20 MA |
| Backlight Color: | White |
| Backlight Supply Voltage: | 25.6 V |
| Backlight Power Dissipation: | 512 MW |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | Rohs & Reach Compliant |
3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Drawing
![]()

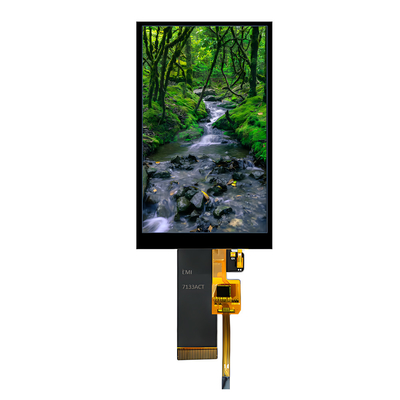

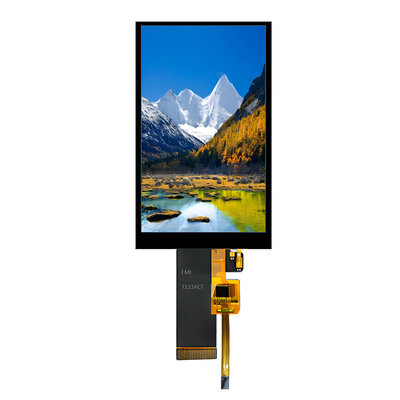

3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Image
![]()
Factory Facilities and Certificates![]()
![]()
