Product Details:
|
Product: | 8 Inch RGB TFT LCD Display | Resolution: | 800 RGB X 600 |
---|---|---|---|
Viewing Direction: | TN 12 O'clock | Surface Luminance: | 250 Cd/m2(nits) |
Interface: | 24 Bits RGB | Pin Number: | 50pins |
Outline Dim.: | 182.9(H) ×141.0(V) × 5.5(T) (mm) | Active Area: | 162.0(H) X 121.5(V) (mm) |
Touch Screen: | RTP & CTP Optional | Surface Treatment: | Hard Coating(3H) |
Display Colors: | 16.7 M | Connection: | Plug-In |
Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | 8 Inch TFT LCD Display,TN 12 O'clock TFT LCD Display |

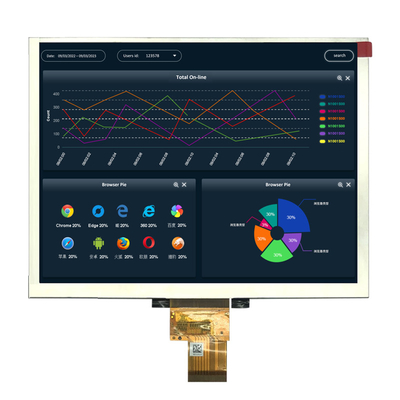

Factory Supply 8 Inch TFT LCD Display 800x600 Pixel TN RGB 12:00 Screen Product Introduction
SFTO800FC-7008AN TFT LCD display is a 8inch TN type 12:00 viewing direction with resolution of 800x600 pixels. This industrial grade TFT LCD Display Module supports 24 bits RGB interface. this TFT screen SFTO800FC-7008AN is operated at 3.3V(power voltage), Vdd is from 3.0V to 3.6V.
SFTO800FC-7008AN is designed with capacitive touch panel, IIC and USB interface optional. This TFT LCD module is with 250cd/m2 luminance. The TFT touch LCD SFTO800FC-7008AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.
Features
Product: | 8 Inch RGB TFT LCD Display |
Resolution: | 800 RGB X 600 |
Surface Luminance: | 250 Cd/m2(nits) |
Viewing Direction: | TN 12 O'clock |
Interface: | 24 Bits RGB |
Outline Dim.: | 182.9(H) ×141.0(V) × 5.5(T) (mm) |
Pin Number: | 50pins |
Active Area: | 162.0(H) X 121.5(V) (mm) |
Surface Treatment: | Hard Coating(3H) |
Connection: | Plug-In |
Touch Screen: | RTP & CTP Optional |
Display Colors: | 16.7 M |
Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant |
>This 8-inch TFT display is a color active matrix TFT LCD that uses an amorphous silicon TFT (thin film transistor) as an active switching device.
>This PCAP TFT LCD 8-inch display features a capacitive touchscreen design with cover glass that can be customized according to customer requirements.
>The color gamut typical of this 8inch TFT screen is 50% Min.45%.
>This 8-inch LCD TFT has a typical response time of 30 ms and a maximum of 35 ms.
>This 8 inch 800x600 TFT LCD display has a contrast ratio of Typ:1000 Min:800.
>This 8inch RGB TFT monitor can operate in a wide temperature range from -20 degrees to +70 degrees.
>This TN TFT LCD 7 inch is a green and environmentally friendly product, RoHS & Halogen free.
>This 8 inch capacitive touch monitor has Low driving voltage and low power consumption.
Factory Supply 8 Inch TFT LCD Display 800x600 Pixel TN RGB 12:00 Screen Product Drawing
Pin Definition
Pin1-2 LEDA Back light anode
Pin3-4 LEDK Back light cathode
Pin5 GND Ground
Pin6 VCOM For external VCOM DC input
Pin7 DVDD Digital Power
Pin8 MODE DE/SYNC mode select
Pin9 DE Data ENEABLE signal
Pin10 VS Frame synchronizing signal
Pin11 HS Line synchronizing signal
Pin12-19 B7-B0 Data bus
Pin20-27 G7-G0 Data bus
Pin28-35 R7-R0 Data bus
Pin36 GND Ground
Pin37 DCLK Dot clock signal
Pin38 GND Ground
Pin39 L/R Source right or left sequence control.
Pin40 U/D Gate up or down scan control
Pin41 VGH Positive Power for TFT
Pin42 VGL Negative Power for TFT
Pin43 AVDD Analog Power
Pin44 RESETGlobal reset signal pin .Active low to enter resetstate.suggest to connecting with an RC reset circuitfor stability.normally pull high.
Pin45 NC Not connect
Pin46 VCOM For external VCOM DC input
Pin47 DITHB Dithering setting.DITH=”H” 6bit resolution;DITH=”L” 8bit resolution(default setting)
Pin48 GND Ground
Pin49 NC Not connect
Pin50 NC Not connect

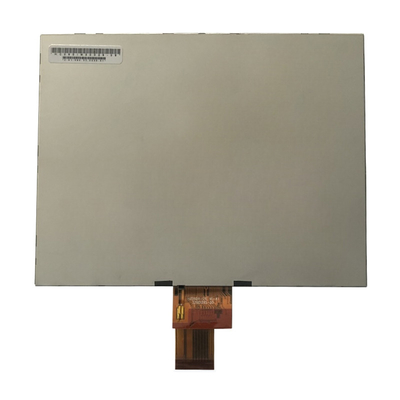

Factory Supply 8 Inch TFT LCD Display 800x600 Pixel TN RGB 12:00 Screen Product Image
Factory Facilities and Certificates
TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
