Product Details:
|
Product: | 27 Inch TFT LCD Display | Resolution: | 3840(H) X 2160 (V) Pixels |
---|---|---|---|
Surface Luminance: | 1000 Cd/m2(nits) | Interface: | EDP Interface |
Pin Number: | 30pins | Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) | Active Area: | 596.736(H) X 335.664 (V) (mm) |
Touch Screen: | CTP Optional | Surface Treatment: | Hard Coating(3H), Haze 25% |
Color Depth: | 1.07 B (8bit+A-FRC) | Connection: | ZIF |
Vsync Frequency: | 60HZ | Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ | Backlight: | Long Side, 2-LED Lighting Bar Type |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | 27 Inch TFT LCD Display,UFD TFT LCD Display,1000nits Sunlight Readable LCD Display |
Sunlight Readable 27 Inch UFD TFT LCD Display 60HZ 1000nits EDP Interface Product Introduction
SFTO2700B-7125AN Industrial TFT display has a 27 inch diagonally measured active area with UHD resolutions (3840 horizontal by 2160 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 1.07B colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type. This industrial grade TFT LCD Display Module supports eDP interface. this TFT LCD display is operated at 11V(Max value), Vdd is from 9V to 11V.
SFTO2700B-7125AN is designed with capacitive touch panel, single touch and multi-touch optional. This TFT LCD module is with 1000cd/m2 luminance. The TFT touch LCD SFTO2700B-7125AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.
Features
Product: | 27 Inch TFT LCD Display |
Resolution: | 3840(H) X 2160 (V) Pixels |
Surface Luminance: | 1000 Cd/m2(nits) |
Interface: | EDP Interface |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Pin Number: | 30pins |
Outline Dim.: | 630.0(H) X368.2 (V)x20.98(T) (mm) |
Active Area: | 596.736(H) X 335.664 (V) (mm) |
Surface Treatment: | Hard Coating(3H), Haze 25% |
Connection: | ZIF |
Touch Screen: | CTP Optional |
Color Depth: | 1.07 B (8bit+A-FRC) |
Vsync Frequency: | 60HZ |
Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
Backlight: | Long Side, 2-LED Lighting Bar Type |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant |
This 27 inch industrial / medical TFT LCD can be displayed in reverse, landscape and portrait.
This 27 inch TFT LCD display supports Type 4-lane eDP interfaces and has a 5.4Gbps link rate.
This 27 inch LCD touch display has vivid colors and excellent color saturation, with 10-bit (8bit+A-FRC) color depth and 1.07B color display.
This 27 inch IPS LCD display has a built-in edge-type backlight (LED).
This 27 inch EDP monitor is compatible with NTSC90% and sRGB matching rate 98% (Typ.) and area ratio 105% (Typ.).
This high brightness 27 inch TFT product has a high brightness of 1000nits and a high contrast ratio (Crab:1000), low reflection and wide viewing angle.
This 27 inch sunlight readble TFT monitor is eco-friendly, RoHS/halogen-free.
This 27 inch TFT screen can be gamma corrected.
Sunlight Readable 27 Inch UFD TFT LCD Display 60HZ 1000nits EDP Interface Product Drawing
LCD Module Electrical Specifications
Backlight Unit Specifications
LCD Module Optical Specifications
Pin Definition
Pin1 VDD Power Supply (10.0V)
Pin2 VDD Power Supply (10.0V)
Pin3 VDD Power Supply (10.0V)
Pin4 VDD Power Supply (10.0V)
Pin5 VDD Power Supply (10.0V)
Pin6 GND Ground
Pin7 GND Ground
Pin8 NC SCL PGMA
Pin9 NC SDA PGMA
Pin10 GND Ground
Pin11 HPD Hot Plug Detection Signal
Pin12 GND Ground
Pin13 DAUXN Negative Signal for AuxiliaryChanel
Pin14 DAUXP Positive Signal for AuxiliaryChanel
Pin15 GND Ground
Pin16 DRX0P Positive Signal For eDP Lane0
Pin17 DRX0N Negative Signal For eDP Lane0
Pin18 GND Ground
Pin19 DRX1P Positive Signal For eDP Lane1
Pin20 DRX1N Negative Signal For eDP Lane1
Pin21 GND Ground
Pin22 DRX2P Positive Signal For eDP Lane2
Pin23 DRX2N Negative Signal For eDP Lane2
Pin24 GND Ground
Pin25 DRX3P Positive Signal For eDP Lane3
Pin26 DRX3N Negative Signal For eDP Lane3
Pin27 GND Ground
Pin28 GND Ground
Pin29 NC No connection
Pin30 BIST BIST Function

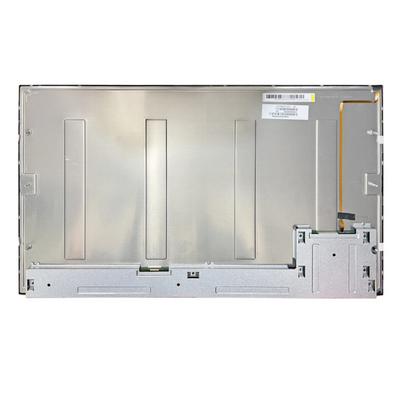

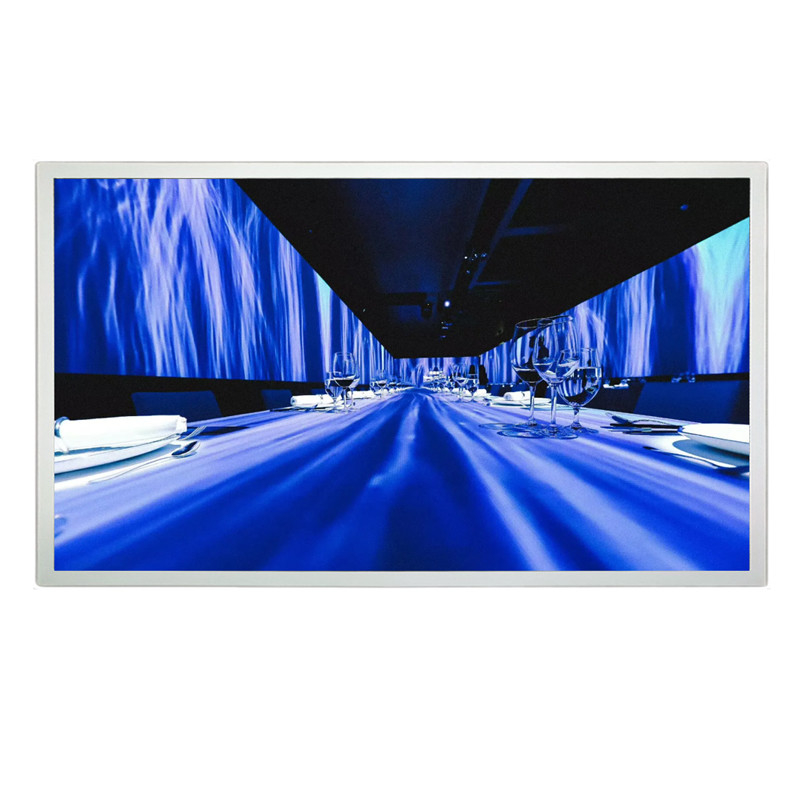

Sunlight Readable 27 Inch UFD TFT LCD Display 60HZ 1000nits EDP Interface Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.85", 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 2.8" round, 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
