Product Details:
|
Product: | 7inch LVDS TFT LCD Display | Resolution: | 1024 RGB X 600 |
---|---|---|---|
Surface Luminance: | 300 Cd/m2(nits) | Interface: | LVDS |
Pin Number: | 40pins | Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Outline Dim.: | 164.9(H)x100.0(V)×2.8(T) (mm) | Active Area: | 154.21(H)x85.92(V) (mm) |
Touch Screen: | CTP Optional | Surface Treatment: | Hard Coating(3H) |
Display Colors: | 16.7 M | Connection: | Plug-In |
Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | 40 Pin LVDS TFT LCD Display,7 Inch TFT LCD Display |

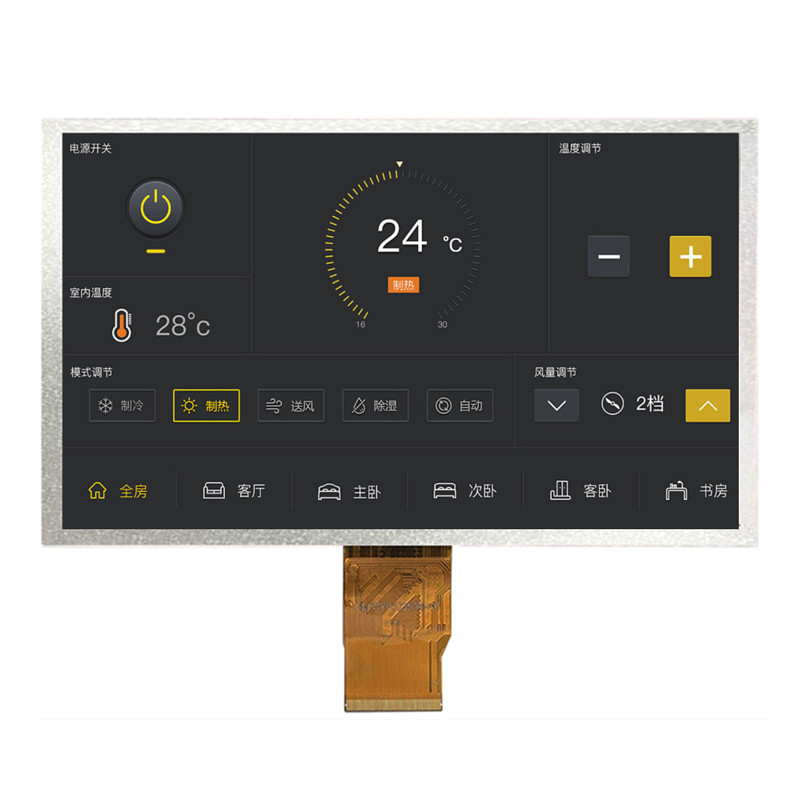

7 Inch TFT 40 Pin LVDS LCD Display Factory Supply 1024x600 Pixel Screen Product Introduction
SFTO700XC-7052AN TFT LCD display is a 7inch IPS type full viewing angles screen with resolution of 1024x600 pixels. This industrial grade TFT LCD Display Module supports LVDS interface. this TFT screen SFTO700XC-7052AN is operated at 3.3V(power voltage), Vdd is from 3.0V to 3.6V.

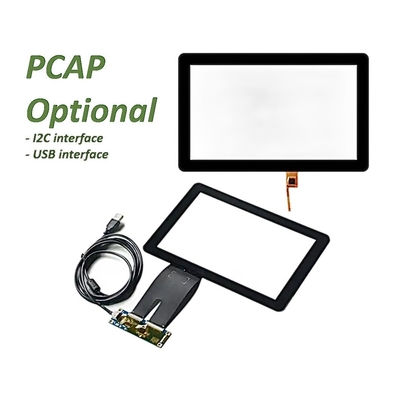

SFTO700XC-7052AN is designed with capacitive touch panel, IIC and USB interface optional. This TFT LCD module SFTO700XC-7052AN is with 300cd/m2 luminance. The TFT touch LCD SFTO700XC-7052AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.
Features
Product: | 7inch LVDS TFT LCD Display |
Resolution: | 1024 RGB X 600 |
Interface: | LVDS |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Surface Luminance: | 300 Cd/m2(nits) |
Pin Number: | 40pins |
Outline Dim.: | 164.9(H)x100.0(V)×2.8(T) (mm) |
Active Area: | 154.21(H)x85.92(V) (mm) |
Surface Treatment: | Hard Coating(3H) |
Connection: | Plug-In |
Touch Screen: | CTP Optional |
Display Colors: | 16.7 M |
Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant |
>This 7-inch TFT display is a color active matrix TFT LCD that uses an amorphous silicon TFT (thin film transistor) as an active switching device.
>This PCAP TFT LCD 7-inch display features a capacitive touchscreen design with cover glass that can be customized according to customer requirements.
>The color gamut typical of this 7-inch TFT screen is 50% Min.45%.
>This 7-inch LCD TFT has a typical response time of 30 ms and a maximum of 35 ms.
>This 7-inch 1024x600 TFT LCD display has a contrast ratio of Typ:1000 Min:800.
>This 7-inch LVDS TFT monitor can operate in a wide temperature range from -20 degrees to +70 degrees.
>This IPS TFT LCD 7 inch is a green and environmentally friendly product, RoHS & Halogen free.
>This 7 inch capacitive touch monitor has Low driving voltage and low power consumption.
7 Inch TFT 40 Pin LVDS LCD Display Factory Supply 1024x600 Pixel Screen Product Drawing
Pin Definition
Note 1:
if LVDS input data is 6bit, selb must be set to high;
if LVDS input data is 8bit, selb must be set to low;
Note 2:
When CABC_EN=00, CABC OFF.
When CABC_EN=01, user interface image.
When CABC_EN=10, still picture.
When CABC_EN=11, moving image.
When CABC off, don’t connect DIMO, else connect it to backlight
Note 3:
When L/R=0 set right to left scan direction.
When L/R=1 set left to right scan direction.
When U/D=0 set top to bottom scan direction.
When U/D=1 set bottom to top scan direction

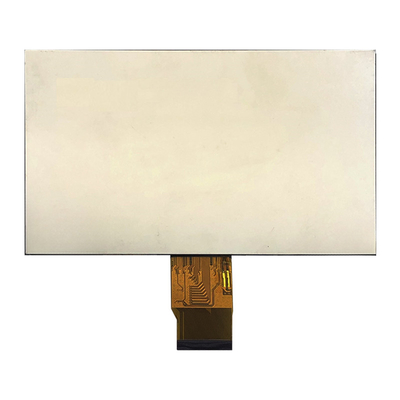

7 Inch TFT 40 Pin LVDS LCD Display Factory Supply 1024x600 Pixel Screen Product Image
Factory Facilities and Certificates
TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
