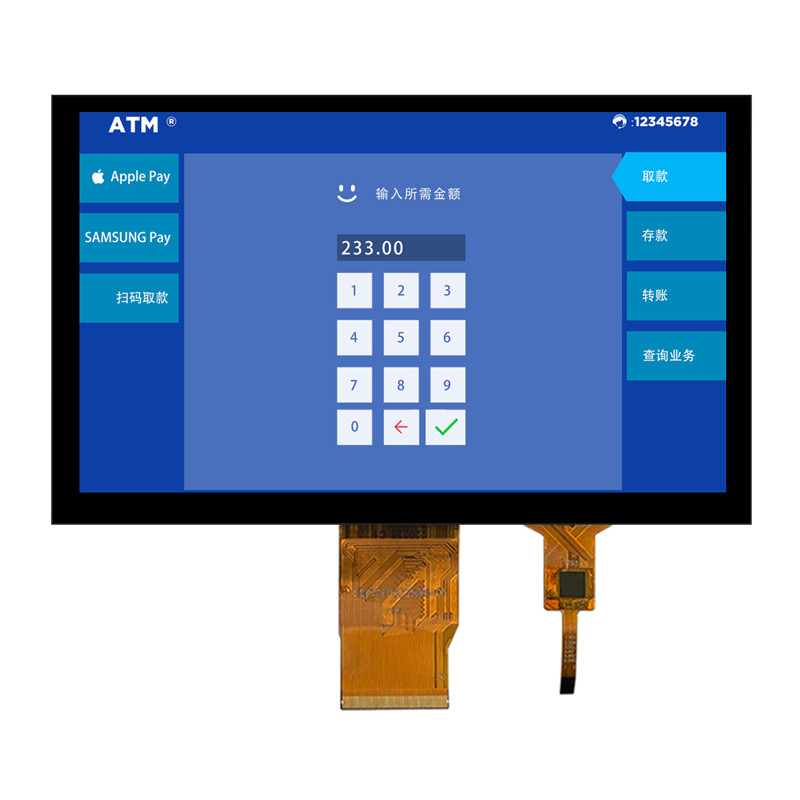

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature
1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature

Large Image :  1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO700XC-7026AN
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature

Description
Product: 7inch TFT LCD Display Operating Temp.: -30℃ To +75℃
Surface Luminance: 1000 Cd/m2(nits) Resolution: 1024 RGB X 600
Interface: RGB Pin Number: 50pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85) Outline Dim.: 164.9(H)x100.0(V)×5.5(T) (mm)
Active Area: 154.21(H)x85.92(V) (mm) Touch Screen: CTP Optional
Surface Treatment: Hard Coating(3H) Display Colors: 16.7 M
Connection: Plug-In Storage Temp.: -30℃ To +80℃
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

7 Inch PCAP TFT Display

,

1000nits PCAP TFT Display

7 Inch PCAP TFT Display 1024x600 1000nits RGB Wide Operating Temperature Product Introduction

SFTO700XC-7026AN TFT LCD display is a 7inch IPS type full viewing angles screen with resolution of 1024x600 pixels. This industrial grade TFT LCD Display Module supports RGB interface. this TFT screen SFTO700XC-7026AN is operated at 3.3V(power voltage), Vdd is from 3.0V to 3.6V.
SFTO700XC-7026AN is designed with capacitive touch panel, IIC and USB interface optional. This TFT LCD module SFTO700XC-7026AN is with 1000cd/m2 luminance. The TFT touch LCD SFTO700XC-7026AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, banking POS terminal, HMI, home automation, security system, etc.

Product: 7inch TFT LCD Display
Surface Luminance: 1000 Cd/m2(nits)
Operating Temp.: -30℃ To +75℃
Storage Temp.: -30℃ To +80℃
Pin Number: 50pins
Resolution: 1024 RGB X 600
Interface: RGB
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Active Area: 154.21(H)x85.92(V) (mm)
Outline Dim.: 164.9(H)x100.0(V)×5.5(T) (mm)
Touch Screen: CTP Optional
Display Colors: 16.7 M
Surface Treatment: Hard Coating(3H)
Connection: Plug-In
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: REACH & RoHS Compliant



Features

This TFT LCD 7 inch is a color active matrix TFT LCD using amorphous silicon TFT's (ThinFilm Transistors) as an active switching devices.

This PCAP TFT LCD 7 inch display is designed with capacitive touch screen, cover glass can be customized as customer's requirement .

This 7 inch TFT screen is with Color Gamut Typ. 50% Min.45%.

The respond time of This 12.1 inch LCD TFT is Typ. 30ms, Max. 35ms.

This 7 inch 1024x600 TFT display has contrast ratio of Typ:1000 Min:800.

This 7 inch RGB TFT is operated at wide temperature ranging from -30 degee to +75 degree.

This 7 inch TFT display is a standard 50 pin RGB interface LCD screen.



 7 Inch TFT LCD Display Wide Temperature Operation 1024x600 HMI Screen RGB 50pins Product Drawing



LCD Module Electrical Specifications

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 01000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 1



Pin Definition
1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 2

I: input, O: output, P: Power

Note 1: DE/SYNC mode select. Normally pull high.When select DE mode, MODE=”1”, VS and HS must pull high.When select SYNC mode, MODE= ”0”, DE must be grounded.

Note 2: When input 18 bits RGB data, the two low bits of R,G and B data must begrounded.

Note 3: Data shall be latched at the falling edge of DCLK

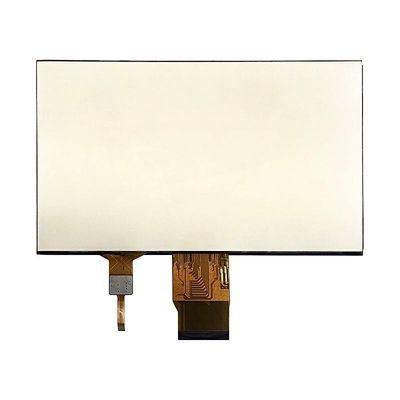

7 Inch PCAP TFT Display 1024x600 1000nits RGB Wide Operating Temperature Product Image

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 3

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 4

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 5
Factory Facilities and Certificates
1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 61000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 7



Projected Capacitive (PCAP) Touch Screen

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 8

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 9

Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 10

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 11
1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 12

1000nits 7 Inch PCAP TFT Display 1024x600 RGB Wide Operating Temperature 13
