7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen
7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen

Large Image :  7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO700XC-7026AN
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen

Description
Product: 7inch TFT LCD Display Operating Temp.: -30℃ To +75℃
Surface Luminance: 1000 Cd/m2(nits) Resolution: 1024 RGB X 600
Interface: RGB Pin Number: 50pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85) Outline Dim.: 164.9(H)x100.0(V)×5.5(T) (mm)
Active Area: 154.21(H)x85.92(V) (mm) Touch Screen: CTP Optional
Surface Treatment: Hard Coating(3H) Display Colors: 16.7 M
Connection: Plug-In Storage Temp.: -30℃ To +80℃
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

1024x600 TFT LCD Display

,

50pins TFT LCD Display

7 Inch TFT LCD Display Wide Temperature Operation 1024x600 HMI Screen RGB 50pins Product Introduction

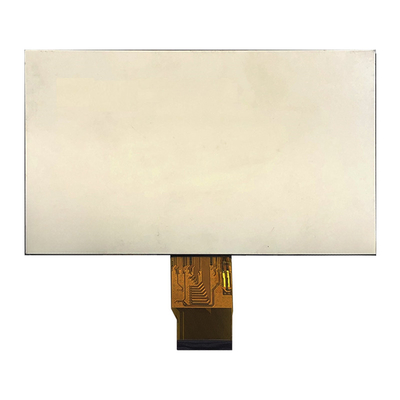

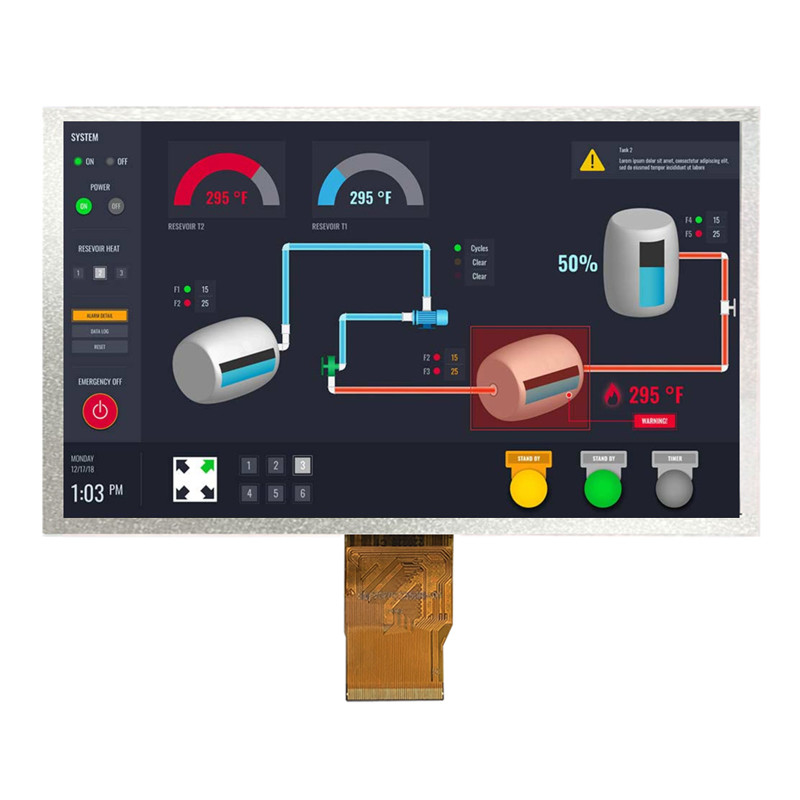

SFTO700XC-7026AN TFT LCD display is a 7inch IPS type full viewing angles screen with resolution of 1024x600 pixels. This industrial grade TFT LCD Display Module supports RGB interface. this TFT screen SFTO700XC-7026AN is operated at 3.3V(power voltage), Vdd is from 3.0V to 3.6V.

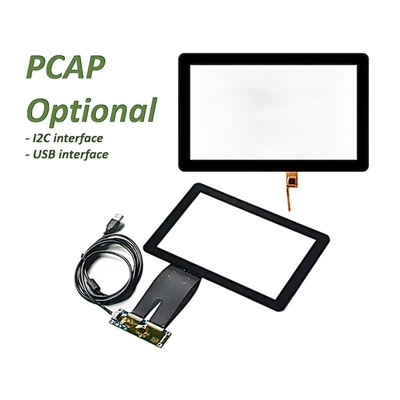

SFTO700XC-7026AN is designed with capacitive touch panel, IIC and USB interface optional. This TFT LCD module SFTO700XC-7026AN is with 1000cd/m2 luminance. The TFT touch LCD SFTO700XC-7026AN is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.

Product: 7inch TFT LCD Display
Surface Luminance: 1000 Cd/m2(nits)
Operating Temp.: -30℃ To +75℃
Storage Temp.: -30℃ To +80℃
Pin Number: 50pins
Resolution: 1024 RGB X 600
Interface: RGB
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Active Area: 154.21(H)x85.92(V) (mm)
Outline Dim.: 164.9(H)x100.0(V)×5.5(T) (mm)
Touch Screen: CTP Optional
Display Colors: 16.7 M
Surface Treatment: Hard Coating(3H)
Connection: Plug-In
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: REACH & RoHS Compliant



Features

This 7 inch TFT Display is a color active matrix TFT LCD using amorphous silicon TFT's (ThinFilm Transistors) as an active switching devices.

This PCAP TFT LCD 7 inch display is designed with capacitive touch screen, cover glass can be customized as customer's requirement .

This 7 inch TFT screen is with Color Gamut Typ. 50% Min.45%.

The respond time of this 7 inch LCD TFT is Typ. 30ms, Max. 35ms.

This 7 inch 1024x600 TFT display has contrast ratio of Typ:1000 Min:800.

This 7 inch RGB TFT is operated at wide temperature ranging from -30 degee to +75 degree.



 7 Inch TFT LCD Display Wide Temperature Operation 1024x600 HMI Screen RGB 50pins Product Drawing

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 07 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 1

LCD Module Electrical Specifications

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 27 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 3



Pin Definition
7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 4

I: input, O: output, P: Power

Note 1: DE/SYNC mode select. Normally pull high.When select DE mode, MODE=”1”, VS and HS must pull high.When select SYNC mode, MODE= ”0”, DE must be grounded.

Note 2: When input 18 bits RGB data, the two low bits of R,G and B data must begrounded.

Note 3: Data shall be latched at the falling edge of DCLK



7 Inch TFT LCD Display Wide Temperature Operation 1024x600 HMI Screen RGB 50pins Product Image

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 5

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 6

7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 7
Factory Facilities and Certificates
7 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 87 Inch TFT LCD Display Wide Temperature Operation RGB 1024x600 50pins HMI Screen 9





TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line



SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4"round, 3.5", 3.6"round, 3.7", 4"round, 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.



SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
