Product Details:
|
| Product: | 10.1 Inch TFT LCD Display | Resolution: | 1280 RGB X 800 |
|---|---|---|---|
| Surface Luminance: | 420 Cd/m2(nits) | Touch Screen: | RTP |
| Interface: | 8 Bits-LVDS Interface | Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 40pins | Outline Dim.: | 229.46 (H) X149.1(V) X 4.3(T) (mm) |
| Active Area: | 216.96 (H) X 135.6(V) (mm) | Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M | Connection: | ZIF |
| Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 10.1 Inch TFT LCD Display,Resistive Touch TFT LCD Display |
||

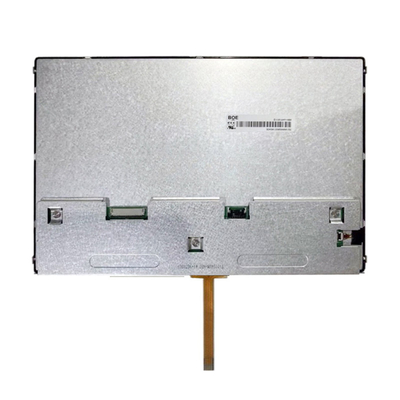

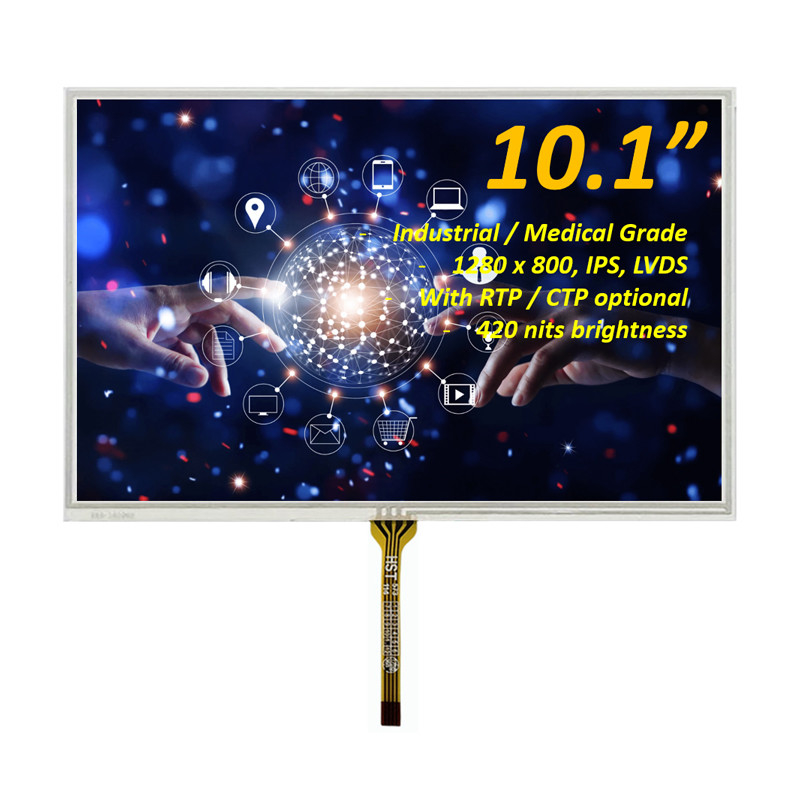

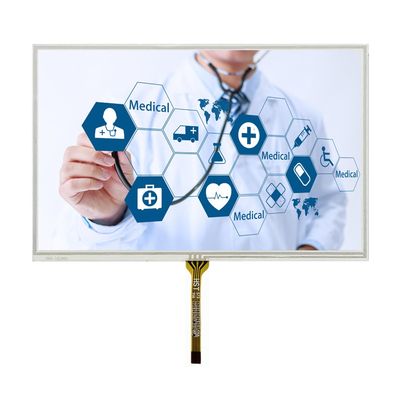

10.1 Inch TFT LCD Display 1280x800 Resolution With Resistive Touch Panel Product Introduction
SAEF Technology SFTO1010LX-7047A-T TFT LCD display is a 10.1inch IPS type full viewing angles screen with resolution of 1280x800 pixels. This TFT LCD Display Module supports 8 bits-LVDS interface. SFTO1010LX-7047A-T high brightness TFT LCD screen is 3.9V(Max value) for operating voltage. Vdd is from 2.3V to 3.6V.
SFTO1010LX-7047A-T is designed with Resistive touch panel, This TFT module is with 420cd/m2 luminance and it's Widely used in industrial meter and instruments, medical devices, GPS device, POS terminal, cash reader, scanner, home automation, conference phone, analyzers, home appliance, home automation, security system, etc.
Features
This 10.1 inch industrial TFT display can be operating at temperatures from -20℃ to +70℃, it's storage temperature ranges from -30℃ to +80℃.
This Resistive touchscreen 10.1 inch TFT displays 16.7M color.
This 10.1 inch LCD touch screen has the outline dimension of 229.46 (H) X149.1(V) X 4.3(T) (mm), VA is 216.96 (H) X 135.6(V) (mm).
This 10.1 inch TFT Display supports 8 bits-LVDS interface, 40 pin (zif connection).
This TFT display 10.1 inch is a IPS all viewing direction
For this 10.1" TFT LCD, we designed a verion with capacitive touchscreen, pls search in our website by SFTO1010LX-7047A-CT.
For this 10.1" TFT screen, we recommend SFRA101H-1280800A-CT for compatible with Raspberry Pi with HDMI connection.
| Product: | 10.1 Inch TFT LCD Display |
| Resolution: | 1280 RGB X 800 |
| Surface Luminance: | 420 Cd/m2(nits) |
| Interface: | 8 Bits-LVDS Interface |
| Touch Screen: | Resistive touch panel |
| Pin Number: | 40pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 229.46 (H) X149.1(V) X 4.3(T) (mm) |
| Active Area: | 216.96 (H) X 135.6(V) (mm) |
| Display Colors: | 16.7 M |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | ZIF |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
10.1 Inch TFT LCD Display 1280x800 Resolution With Resistive Touch Panel Product Drawing
Absolute Maximum Ratings
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over 50ºC, absolute humidity should beless than 60%RH.
Note 2: The response time will be extremely slow when the operating temperature is around -10℃, andthe back ground will become darker at high temperature operating.
DC Characteristics
Note 1: Be sure to apply VDD and VGL to the LCD first, and then apply VGH.
Note 2: VDD setting should match the signals output voltage of customer’s systemboard.
Note 3: Typical VCOM is only a reference value, it must be optimized according to each LCM. Be sure touse VR.
Optical Characteristics
Pin Definition
10.1 Inch TFT LCD Display 1280x800 Resolution With Resistive Touch Panel Product Drawing
Factory Facilities and Certificates
TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line
SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.
