Product Details:
|
Product: | 14 Inch TFT LCD Display | Resolution: | 1920 RGB X 1200 |
---|---|---|---|
Interface: | EDP Interface | Surface Luminance: | 300 - 500 Cd/m2(nits) |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) | Pin Number: | 30pins |
Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) | Active Area: | 301.5936(H) ×188.496(V) (mm) |
Touch Screen: | Capacitive Touch Panel (CTP) | LCD Surface Treatment: | Hard Coating(3H) |
Touch Screen Interface: | IIC | Display Colors: | 16.7 M |
Connection: | ZIF | NTSC Ratio: | 45% |
Operating Temp.: | 0℃ To +50℃ | Storage Temp.: | -20℃ To +60℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | 14 Inch TFT LCD Display,TFT LCD Display With CTP Touch |

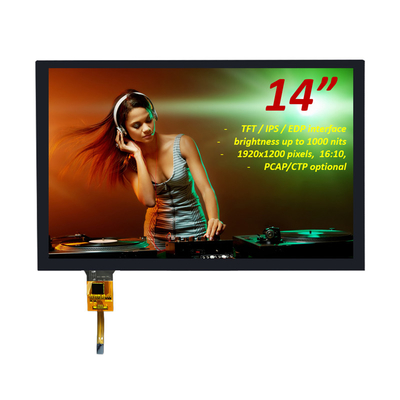

14 Inch TFT LCD Display 1920x1200 Pixels (16:10) EDP Interface With CTP Touch Product Introduction
The SAEF Technology SFTO1400JD-7087A-CT TFT LCD display is a 14-inch IPS-type full-view screen with a resolution of 1920x1200 pixels (16:10) PCAP TFT display. This commercial-grade 14-inch PCAP TFT display module supports an 8-bit LVDS interface. The high-brightness 14-inch PCAP TFT LCD screen SFTO1400JD-7087A-CT operates at 3.9V (max). Vdd has a voltage range of 2.3V to 3.6V.
SFTO1400JD-7087A-CT 14 inch TFT LCD display with capacitive touch screen design, single touch and multi-touch optional. TFT module 14-inch SFTO1010LX-7047A-CT has a surface brightness of 300 - 500cd/m2. If you want to increase the brightness, please contact us for more technical support.
TFT touch LCD monitor 14 inch SFTO1400JD-7087A-CT is widely used in meters, GPS devices, POS terminals, scanners, home automation, conference phones, analyzers, home appliances, home automation, security systems, etc.
Features
> 14-inch TFT LCD display has a 2-channel eDP interface with a 2.7Gbps link rate.
Product: | 14 Inch TFT LCD Display |
Resolution: | 1920 RGB X 1200 |
Interface: | EDP Interface |
Surface Luminance: | 300 - 500 Cd/m2(nits) |
Pin Number: | 30pins |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) |
Active Area: | 301.5936(H) ×188.496(V) (mm) |
LCD Surface Treatment: | Hard Coating(3H) |
Display Colors: | 16.7 M |
Touch Screen: | Capacitive Touch Panel (CTP) |
Touch Screen Interface: | IIC |
NTSC Ratio: | 45% |
Connection: | ZIF |
Operating Temp.: | 0℃ To +50℃ |
Storage Temp.: | -20℃ To +60℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant |
14 Inch TFT LCD Display 1920x1200 Pixels (16:10) EDP Interface With CTP Touch Product Drawing
Electrical Specifications
Backlight Unit Specifications
Optical Characteristics

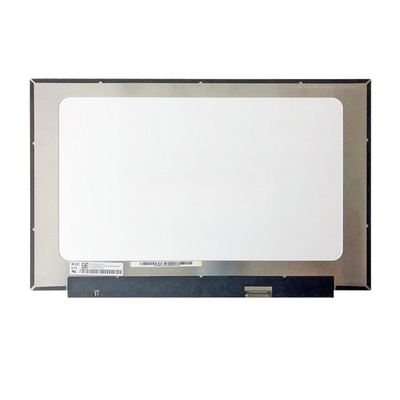

14 Inch TFT LCD Display 1920x1200 Pixels (16:10) EDP Interface With CTP Touch Product Image

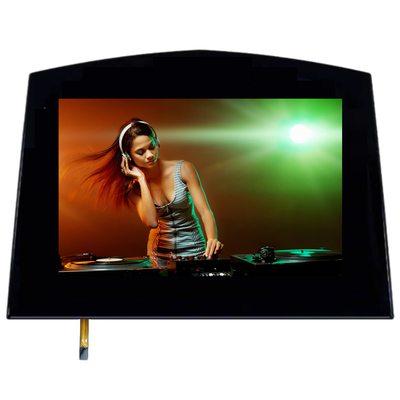

14 inch TFT Display with Customized Cover Glass
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
