Product Details:
|
| Product: | 14 Inch PCAP TFT Display | Resolution: | 1920 RGB X 1200 (16:10) |
|---|---|---|---|
| Interface: | EDP Interface | Surface Luminance: | 300 Cd/m2(nits), 500nits Optional |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) | Pin Number: | 30pins |
| Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) | Active Area: | 301.5936(H) ×188.496(V) (mm) |
| Touch Screen: | Capacitive Touch Panel (CTP) | LCD Surface Treatment: | Hard Coating(3H) |
| Touch Screen Interface: | IIC | Display Colors: | 16.7 M |
| Connection: | ZIF | NTSC Ratio: | 45% |
| Operating Temp.: | 0℃ To +50℃ | Storage Temp.: | -20℃ To +60℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 14 Inch PCAP TFT Display,Capacitive Touch PCAP TFT Display |
||
14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With Capacitive Touch Screen Product Introduction
SAEF Technology SFTO1400JD-7087A-CT TFT LCD Display is a 14inch IPS type full viewing angles screen with resolution of 1920x1200 pixels(16:10) PCAP TFT Display. This commercial grade 14 inch PCAP TFT display Module supports 8 bits-LVDS interface. high brightness 14" PCAP TFT LCD screen SFTO1400JD-7087A-CT is 3.9V(Max value) for operating voltage. Vdd is from 2.3V to 3.6V.
SFTO1400JD-7087A-CT 14 inch TFT LCD display is designed with capacitive touch panel, single touch and multi-touch optional. The TFT module 14 inch SFTO1010LX-7047A-CT is with 500cd/m2 surface luminance. If you would like to increase the brightness, please contact with us for more technical support.
The TFT touch LCD 14 inch SFTO1400JD-7087A-CT Widely used in meter and instruments, GPS device, POS terminal, scanner, home automation, conference phone, analyzers, home appliance, home automation, security system, etc.
Features
>14 inch TFT LCD Display has 2lane eDP interface with 2.7Gbps link rates
>14 inch TFT LCD is thin and light weight
>14 inch touch LCD Display has 16.2M(Round up)( 6bit+2FRC) color depth, color gamut 45%
>14 inch PCAP Display has Single LED lighting bar (Bottom side/Horizontal Direction)
>14 inch TFT Display is a data enable signal model Green product (RoHS & Halogen free product)
>14 inch TFT screen has On board LED driving circuit
>14 inch LCD touch screen has Low driving voltage and low power consumption
>14 inch Capacitive touch Display has On board EDID chip DPCD Version 1.1
>TFT LCD 14" has adjustable backlight brightness with DC mode
| Product: | 14 Inch TFT LCD Display |
| Resolution: | 1920 RGB X 1200 (16:10) |
| Interface: | EDP Interface |
| Surface Luminance: | 300Cd/m2(nits), 500nits optional |
| Pin Number: | 30pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 307.29*205.35(W/O PCB)*3.0 (Max) (mm) |
| Active Area: | 301.5936(H) ×188.496(V) (mm) |
| LCD Surface Treatment: | Hard Coating(3H) |
| Display Colors: | 16.7 M |
| Touch Screen: | Capacitive Touch Panel (CTP) |
| Touch Screen Interface: | IIC |
| NTSC Ratio: | 45% |
| Connection: | ZIF |
| Operating Temp.: | 0℃ To +50℃ |
| Storage Temp.: | -20℃ To +60℃ |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With Capacitive Touch Screen Product Drawing
Electrical Specifications
Backlight Unit Specifications
Optical Characteristics

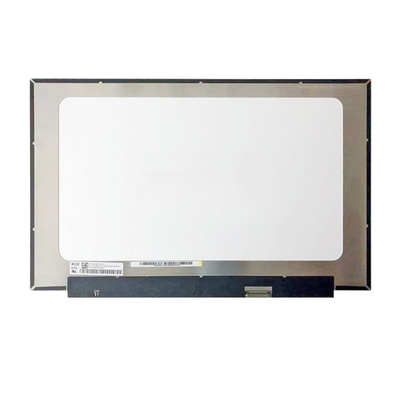

14 Inch FHD 16:10 PCAP TFT Display EDP 1920x1200 Pixels With Capacitive Touch Screen Product Image

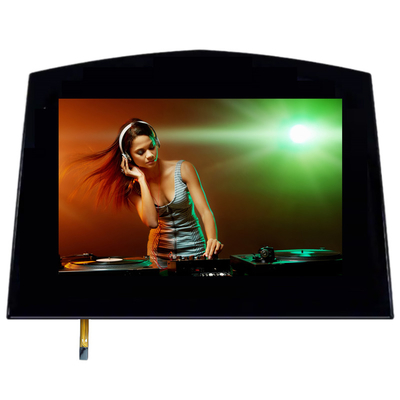

14 inch TFT Display with Customized Cover Glass
Factory Facilities and Certificates

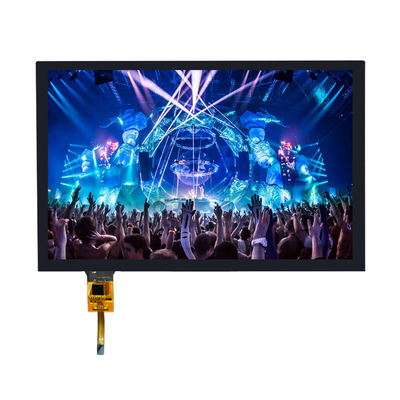

Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
