Product Details:
|
Product: | TFT LCD Display 10.1" | Resolution: | 1280 RGB X 800 |
---|---|---|---|
Surface Luminance: | 420 Cd/m2(nits) | Interface: | 8 Bits-LVDS Interface |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) | Pin Number: | 40pins |
Outline Dim.: | 229.46 (H) X149.1(V) X 5.0(T) (mm) | Active Area: | 216.96 (H) X 135.6(V) (mm) |
Touch Screen: | Capacitive Touch Panel (CTP) | Cover Glass: | Customizable |
LCD Surface Treatment: | Hard Coating(3H) | Touch Screen Interface: | IIC |
Display Colors: | 16.7 M | NTSC Ratio: | 50% |
Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant |
Highlight: | TFT LCD Display With CTP,IPS Type TFT LCD Display |
China Factory 10.1 Inch 1280x800 Pixels TFT LCD Display IPS Type LVDS With CTP Product Introduction
SAEF Technology SFTO1010LX-7047A-CT TFT LCD display is a 10.1inch IPS type full viewing angles screen with resolution of 1280x800 pixels. This industrial grade TFT LCD Display Module supports 8 bits-LVDS interface. SFTO1010LX-7047A-CT high brightness PCAP TFT LCD screen is 3.9V(Max value) for operating voltage. Vdd is from 2.3V to 3.6V.
SFTO1010LX-7047A-CT industrial TFT display is designed with capacitive touch panel, single touch and multi-touch optional. This TFT LCD module SFTO1010LX-7047A-CT is with 420cd/m2 surface luminance. If you would like to increase the brightness, please contact with us for more technical support.
The TFT touch LCD SFTO1010LX-7047A-CT Widely used in meter and instruments, GPS device, POS terminal, cash reader, scanner, home automation, conference phone, analyzers, home appliance, home automation, security system, etc.
Product: | 10.1 Inch PCAP TFT Display |
Resolution: | 1280 RGB X 800 |
Surface Luminance: | 420 Cd/m2(nits) |
Interface: | 8 Bits-LVDS Interface |
Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
Pin Number: | 40pins |
Outline Dim.: | 229.46 (H) X149.1(V) X 5.0(T) (mm) |
Active Area: | 216.96 (H) X 135.6(V) (mm) |
LCD Surface Treatment: | Hard Coating(3H) |
Display Colors: | 16.7 M |
NTSC Ratio: | 50% |
Touch Screen: | Capacitive Touch Panel (CTP) |
Touch Screen Interface: | IIC |
Cover Glass: | Customizable |
Operating Temp.: | -20℃ To +70℃ |
Storage Temp.: | -30℃ To +80℃ |
Compliance: | REACH & RoHS Compliant |
Certificate: | ISO9001:2015 / ISO1400:2015 |
China Factory 10.1 Inch 1280x800 Pixels TFT LCD Display IPS Type LVDS With CTP Product Drawing
Optical Characteristics
Pin Definition

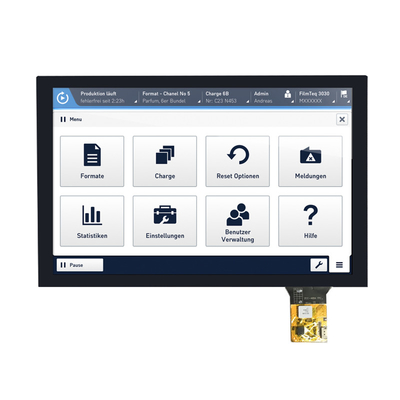

China Factory 10.1 Inch 1280x800 Pixels TFT LCD Display IPS Type LVDS With CTP Product Image
with Custom Cover Glass
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
