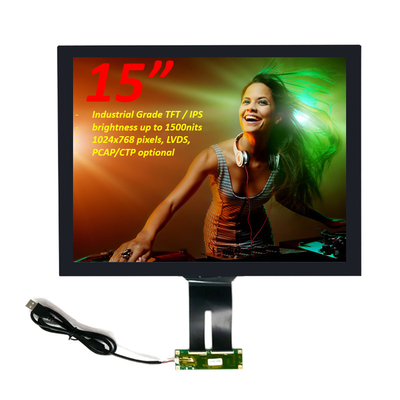

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits
BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits

Large Image :  BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1500XC-7121AN15
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: Negotiable
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits

Description
Product: 15 Inch PCAP TFT Display Resolution: 1024 RGB X 768 Pixel
Surface Brightness: 350nits, 1000nits, 1500nits Interface: LVDS Interface
Viewing Direction: IPS, All Viewing Angle (85/85/85/85) Pin Number: 20pins
Outline Dim.: 326.5(H) × 253.5(V) × 9.7(T) (mm) Active Area: 304.128(H) × 228.096(V) (mm)
Touch Screen: With CTP Optional Surface Treatment: Hard Coating(3H)
Display Colors: 16.7 M Haze: 25%
Operating Temp.: -20℃ To +70℃ Storage Temp.: -30℃ To +80℃
LED Life Time: 50,000 Hours Back-light: E-LED Light Bar Type
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant
Highlight:

15 Inch PCAP TFT Display

,

LVDS Sunlight Readable LCD Display

,

Sunlight Readable LCD Display 1500Nits

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable 1500Nits Product Introduction

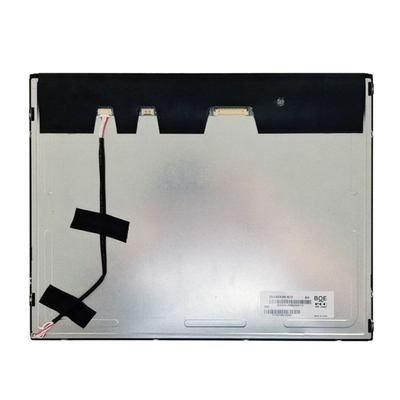

SFTO1500XC-7121AN15 PCAP TFT display is a color active matrix TFT LCD MDL using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This industrial level PCAP TFT Module has a 15 inch diagonallymeasured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripeand this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a lowreflection and higher color type. SFTO1500XC-7121AN15 TFT LCD Display is fully compatible with BOE DV150X0M-N10.

SFTO1500XC-7121AN15 PCAP TFT display display is designed with capacitive touch panel, single touch and multi-touch optional. The TFT LCD module SFTO1500XC-7121AN10 is with 1000cd/m2 luminance. pls contact our sales for more details.



Product: 15 Inch Industrial TFT Display
Resolution: 1024 RGB X 768
Surface Luminance: 1500cd/m2(nits)
Interface: LVDS Interface
Pin Number: 20pins
Viewing Direction: IPS, All Viewing Angle (85/85/85/85)
Outline Dim.: 326.5(H) × 253.5(V) × 9.7(T) (mm)
Active Area: 304.128(H) × 228.096(V) (mm)
Surface Treatment: Hard Coating(3H)
Haze: 25%
Touch Screen: With CTP Optional
Display Colors: 16.7 M
Operating Temp.: -20℃ To +70℃
Storage Temp.: -30℃ To +80℃
Back-light: E-LED Light Bar Type
LED Life Time: 50,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: REACH & RoHS Compliant



Features

> LVDS interface with 1 pixel / clock

> High-speed response

> Low color shift image quality

> 6-bit +FRC color depth, display 16.7M colors

> Wide viewing angle

> DE (Data Enable) only mode

> ADS technology is applied for high display quality

> RoHS compliant

> with PCAP Screen, 5-point and 10-point touch screen optional



BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable 1500Nits Product Drawing

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 0BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 1


Electrical Specifications

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 2



Backlight Unit

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 3



Optical Specifications

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 4

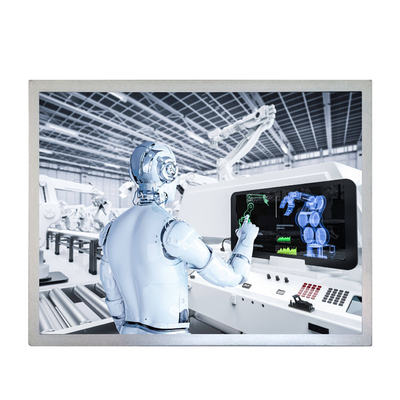

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable 1500Nits Product Image

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 5

BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 6
Factory Facilities and Certificates
BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 7BOE Industrial Grade 15 Inch PCAP TFT Display LVDS Sunlight Readable LCD Display 1500Nits 8


Search keyword: sunlight readable TFT display 15 inch, industrial TFT display 15 inch, PCAP TFT LCD 15 inch, PCAP TFT LCD 15 inch, tft15 ", 15 inch tft lcd sunlight readable, 15" tft lcd sunlight readable, 15 inch tft lcd, tft lcd 15, 115 tft display, 15" tft display, 15 inch tft display, tft display 15 inch, tft display 15", 15 inch tft lcd display, 15" tft screen, 15 inch tft screen, tft screen 15 inch, tft screen 15", 15 inch tft lcd screen, 1024x768 TFT, 15 inch 1024x768, 15 inch LVDS
