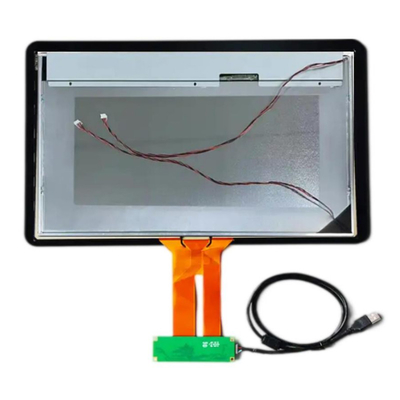

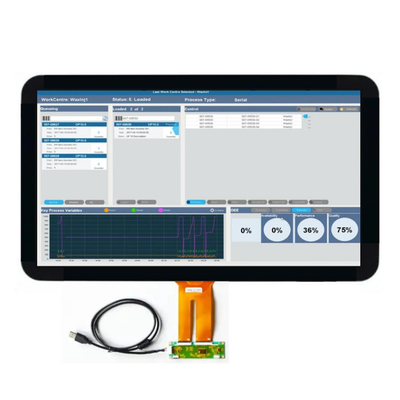

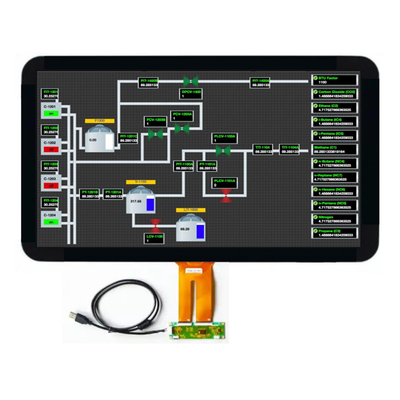

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver

Description
Keywords: 21.5 Inch PCAP TFT Display Resolution: 1920*1080 Pixels
LCD Size: 495.6 X 292.2 X 10.57 Mm (w/o Touch) LCD With Touch: 526 X 324 X 15.16 Mm (with Touch)
Active Area: 476.064(H) X 267.786(V) Mm LCD Interface: LVDS
CTP Interface: USB Touch Screen: CTP (Projective Capacitive Touch Screen)
Surface Luminance: 1000 Cd/m2 Operating Temp.: -10℃ To +60℃
Storage Temp.: -20℃ To +60℃ Display Type: IPS Full Viewing Angles
Surface Treatment: Haze 25%, 3H Contrast Ratio: 1000
Display Color: 16.7 M LED Lifetime: 30,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant

** Datasheet Download **

SFTO2150SM-7048A3CT Specification.pdf





PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Description



SFTO2150SM-7048A3CT PCAP TFT LCD display is a 21.5 inch color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. SFTO2150SMT-7048A-CT PCAP TFT LCD display module has a 21.5 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(Round up)(6bit+2FRC) colors and color gamut 72%. The LED driver for back-light driving is built in this model.



SFTO2150SM-7048A3CT PCAP TFT display is demostrating graphics and texts on a 1920×3×1080 dotspanel with16.7M colors by using Dual channel LVDS,8 bits RGB data input and supplying+3.3VDC supply voltage for TFT-LCD panel driving.In this SFTO2150SM-7048A3CT TFT LCD display panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this display optimum for use in multi-media applications.Optimum viewings are in all directions.



* Reserve Type
* LVDS interface
* High-speed response
* 6-bit (Hi-FRC) color depth, Display 16.7M colors
* Incorporated edge type (LED) backlight
* Compatible with RGB98% and NTSC45% (NTSC72% is available as well)
* High luminance and contrast ratio, low reflection and wide viewing angle
* DE ( data enable ) only
* Rohs and Halogen free
* TEO 6.0, ES6.0 Compliant
* Gamma Correction



Features:

Keywords: 21.5 Inch PCAP TFT Display Resolution: 1920*1080 Pixels
LCD Size: 495.6 X 292.2 X 10.57 Mm (w/o Touch) LCD With Touch: 526 X 324 X 15.16 mm (with Touch)
Active Area: 476.064(H) X 267.786(V) mm LCD Interface: LVDS
CTP Interface: USB Touch Screen: CTP (Projective Capacitive Touch Screen)
Surface Luminance: 1000 Cd/m2 Operating Temp.: -10℃ To +60℃
Storage Temp.: -20℃ To +60℃ Display Type: IPS Full Viewing Angles
Surface Treatment: Haze 25%, 3H Contrast Ratio: 1000
Display Color: 16.7 M LED Lifetime: 30,000 Hours
Certificate: ISO9001:2015 / ISO1400:2015 Compliance: REACH & RoHS Compliant



PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Image

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver 0PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver 1PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver 2

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver​ Product Drawing

PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver 3PCAP TFT Display 21.5 Inch FHD 1920*1080 Resolution, LVDS 21.5 Inch TFT LCD Display With Built-In LED Backlight Driver 4

Display Pin Definition



1 RxO0-     Negative LVDS differential data input (Odd data)

2 RxO0+    Positive LVDS differential data input (Odd data)

3 RxO1-     Negative LVDS differential data input (Odd data)

4 RxO1+    Positive LVDS differential data input (Odd data)

5 RxO2-     Negative LVDS differential data input (Odd data)

6 RxO2+    Positive LVDS differential data input (Odd data)

7 GND       Ground

8 RxOCLK-     Negative LVDS differential clock input (Odd clock)

9 RxOCLK+    Positive LVDS differential clock input (Odd clock)

10 RxO3-        Negative LVDS differential data input (Odd data)

11 RxO3+       Positive LVDS differential data input (Odd data)

12 RxE0-        Negative LVDS differential data input (Even data)

13 RxE0+       Positive LVDS differential data input (Even data)

14 GND          Ground

15 RxE1-        Negative LVDS differential data input (Even data)

16 RxE1+       Positive LVDS differential data input (Even data)

17 GND          Ground

18 RxE2-        Negative LVDS differential data input (Even data)

19 RxE2+       Positive LVDS differential data input (Even data)

20 RxECLK-   Negative LVDS differential clock input (Even clock)

21 RxECLK+  Negative LVDS differential clock input (Even clock)

22 RxE3-        Negative LVDS differential data input (Even data)

23 RxE3+       Positive LVDS differential data input (Even data)

24 GND          Ground 25 CTL CTL_DVR

26 CE CE_     DVR 27 NC No connection

28 VDD          Power Supply Input Voltage

29 VDD          Power Supply Input Voltage

30 VDD          Power Supply Input Voltage



PCAB USB Pin Definition

1    VBUS / VDD

2    DN / D-

3    DP / D+

4    GND
