Product Details:
|
Product: | TFT LCD Display 5 Inch With HDMI Interface | Resolution: | 800*480 |
---|---|---|---|
Touch Screen: | CTP( Capacitive Touch Screen) | CTP Interface: | IIC To USB |
Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT | Menu (reserved): | Brightness, Contrast, Auto-correction, Phase, Clock, Line Field Position, Function Settings, Reset, Etc |
Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 | Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
LED Lifetime: | 40,000 Hours | Operating Temp.: | –30℃ To +80℃ |
Storage Temp.: | –30℃ To +80℃ | Audio Output: | 8Ω1.5W (20*30 BOX Speaker * 2) |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant & Halogen Free |
5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen Product Introduction
SFHD500HX10-800480A-CT is a new integrated (LCD screen, touch screen, driver board) new integrated LCD display control module. It perfectly presents the HDMI digital signal output from the PC on the 800*480 LCD display.
1. This Raspberry PI 5 inch HDMI display supports HDMI 1.3, HDMI 1.4, HDCP 1.4, HDCP 2.2 standards.
2. The HDMI sources for this 5 inch PCAP TFT are compatible with mainstream mini PCs such as Raspberry Pi, BB Black, and Banana Pi.
3. This 5 inch capacitive TFT display has a CTP from USB interface to I2C one, no driver installation is required.
4. This Raspberry PI 5 inch touch TFT LCD is design for the use on the Raspberry Pi Raspberry Pi display, and it can also be used for other HDMI industrial control small screen touch devices.
5. When used as a Raspberry Pi display, this 5 inch TFT LCD display supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch, and when used as a computer monitor, it supports Windows 7/8/10, five-point touch, drive-free.
Features
Product: | Raspberry PI 5 inch TFT Display |
CTP Interface: | IIC To USB |
Resolution: | 800*480 |
Support: | HDMI, Raspberry Pi, Raspbian, Ubuntu, WIN10 IOT |
Surface Luminance: | 300 Cd/m2 - 1000 Cd/m2 |
Viewing Direction: | IPS All Viewing Angles (85/85/85/85) |
Menu (reserved): | Brightness, Contrast, Auto-correction, Phase, Clock, Line Field Position, Function Settings, Reset, Etc |
Touch Screen: | CTP( Capacitive Touch Screen) |
LED Lifetime: | 40,000 Hours |
Storage Temp.: | –30℃ To +80℃ |
Operating Temp.: | –30℃ To +80℃ |
Audio Output: | 8Ω1.5W (20*30 BOX Speaker * 2) |
Certificate: | ISO9001:2015 / ISO1400:2015 |
Compliance: | REACH & RoHS Compliant & Halogen Free |
5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen Product Drawing
HDMI Pin Definition:
1 | T.M.D.S DATA2+ |
2 | T.M.D.S DATA2 shielded屏蔽 |
3 | T.M.D.S DATA2- |
4 | T.M.D.S DATA1+ |
5 | T.M.D.S DATA1 shielded屏蔽 |
6 | T.M.D.S DATA1- |
7 | T.M.D.S DATA0+ |
8 | T.M.D.S DATA0 shielded屏蔽 |
9 | T.M.D.S DATA0- |
10 | T.M.D.S DATA CLOCK+ |
11 | T.M.D.S DATA CLOCK shielded屏蔽 |
12 | T.M.D.S DATA CLOCK- |
13 |
CEC (Consumer Electronics Control, Optional electronic consumer controller可选择的电子消费控制器) |
14 | Reserved (in cable but N.C. on device) |
15 | SCL(DDC Clock) |
16 | SDA(DDC data) |
17 | DDC/CEC Ground |
18 | +5V power |
19 | Hot-swappable probe wires热插拔探测线 |
USB 5V Pin Definition:
1 | VCC |
2 | NC |
3 | NC |
4 | NC |
5 | GND |
USB TP Pin Definition:
1 | VCC |
2 | D- |
3 | D+ |
4 | NC |
5 | GND |

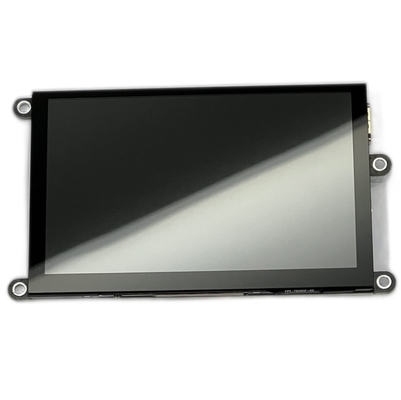

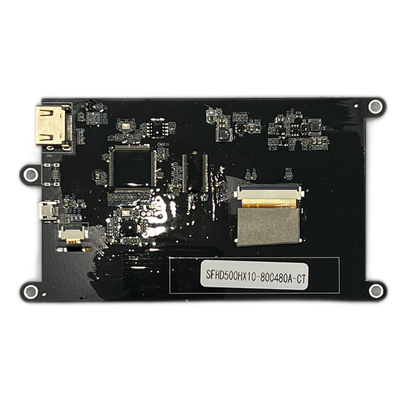

5 Inch Raspberry Pi PCAP HDMI TFT Dispaly 800x480 Pixels IPS Screen Product Image
