Product Details:
|
| Product: | 2.4 Inch TFT Screen | Resolution: | 240x320 |
|---|---|---|---|
| Touch Screen: | Without Touch Screen (Optional) | Cover Glass Dimension: | To Be Customized |
| Viewing Direction: | 12:00 | Driver IC: | ST7789V Compatible With ILI9341V |
| Interface: | 4 SPI (MCU Interface Optional) | Connection: | Plugging (customizable） |
| Pin Number: | 40 Pins | Surface Luminance: | 300 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |

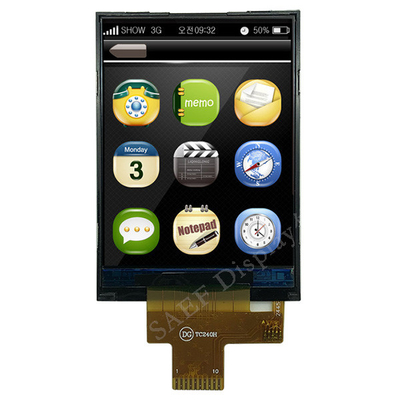

240x320 TFT LCD Display 2.4 inch, QVGA TFT LCD Display, SPI MCU 2.4 Inch TFT LCD Product Description
Saef Technology SF-TC240I-8754A-N is a 2.4”inch TN type TFT LCD Display with resolution of QVGA 240x320 pixels. It is a very cost-effective LCD module among the same kinds.
Display size: 2.4 inch
Display & LCD Type: 240*320,TFT-Panel
Viewing Direction: 12 o’clock
Backlight Type: White LED
Outline dimension: 42.72*60.26*2 mm
Driver IC: ST7789V3
Interface: 4SPI
| Product: | 2.4 Inch TFT Screen | Resolution: | 240x320 |
|---|---|---|---|
| Touch Screen: | Without Touch Screen (Optional) | Cover Glass Dimension: | To Be Customized |
| Viewing Direction: | 12:00 | Driver IC: | ST7789V Compatible With ILI9341V |
| Interface: | 4 SPI (MCU interface optional) | Connection: | Plugging (customizable) |
| Pin Number: | 40 Pins | Surface Luminance: | 300 Cd/m2(nits) |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Pin Definition
1 GND System Ground
2 RST LCM Reset input signal
3 SCL This pin is used to be serial interface clock.
4 D/C Display data/command selection pin in4-line serial interface.
5 CS Chip selection pin
6 SDA SPI interface input pin.
7 SDO SPI interface output pin.
8 VCC Power Supply 2.8V Voltage
9 A LED Anode
10 K LED Cathode
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
240x320 TFT LCD Display 2.4 inch, QVGA TFT LCD Display, SPI MCU 2.4 Inch TFT LCD Product Drawing

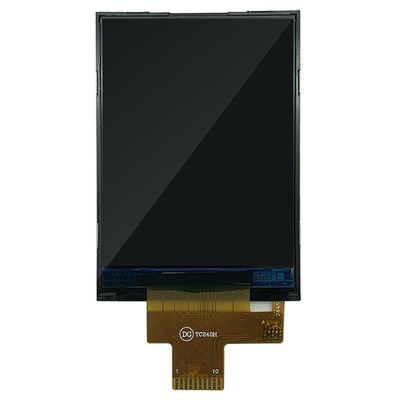

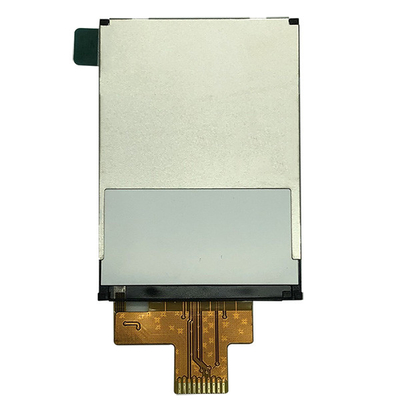

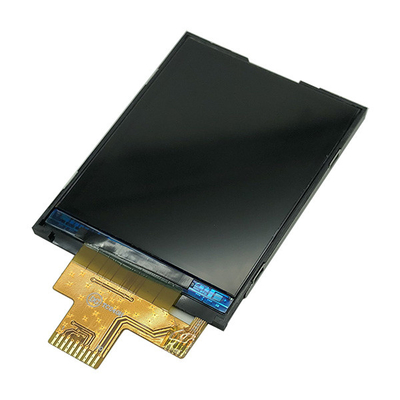

240x320 TFT LCD Display 2.4 inch, QVGA TFT LCD Display, SPI MCU 2.4 Inch TFT LCD Product Image
