Product Details:
|
Product: | 1.9" Inch TFT | Touch Screen: | Capacitive Touch Panel (CTP) |
---|---|---|---|
Resolution: | 170 X 320 | Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
Interface: | SPI / RGB | Outline Dimension: | 25.8 X 49.72 X 1.43 Mm |
Active Area: | 42.72 X 22.7 Mm | Driver IC: | ST7789V Or Equivalent |
Pin Number: | 30 Pins | Connection: | Plugging (can Be Customized) |
Surface Luminance: | 350 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant & Halogen Free |
1.9" IPS CTP TFT LCD Display With SPI/RGB Interface, 350cd/M2 TFT 1.9" For Embedded Systems And Consumer Products Introduction
SAEF TECHNOLOGY SF-TC190B-8922A-CT1 TFT LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. PPI refers to Pixel Per Inch, the resolution of a 1.9” inch contains 170(RGB)X320 dots (170 horizontal by 320 vertical pixels array). and can display up to 262k color. SF-TC190B-8922A-CT1 the TFT LCD model supports SPI and RGB interface; the supply voltage (VCC) of driving LCD panel is from is 2.4V to 3.3V. Typical value is 2.8V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
SF-TC190B-8922A-CT1 is an IPS-LCD type TFT with brightness 350 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Product: | 1.9" inch TFT | Touch Screen: | Capacitive Touch Panel (CTP) |
---|---|---|---|
Resolution: | 170 X 320 | Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
Interface: | SPI / RGB | Outline Dimension: | 25.8 X 49.72 X 1.43 Mm |
Active Area: | 42.72 X 22.7 Mm | Driver IC: | ST7789V Or Equivalent |
Pin Number: | 30 Pins | Connection: | Plugging (can Be Customized) |
Surface Luminance: | 350 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | REACH & RoHS Compliant & Halogen Free |
1.9" IPS CTP TFT LCD Display With SPI/RGB Interface, 350cd/M2 TFT 1.9" For Embedded Systems And Consumer Products Drawing
(without touch)
( with CTP touch )

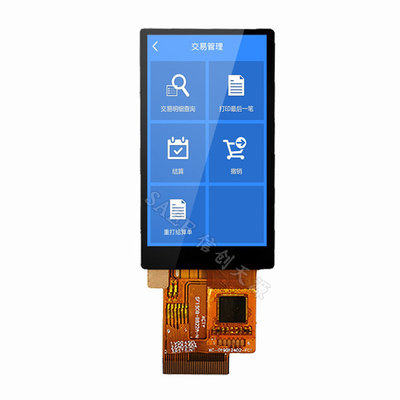

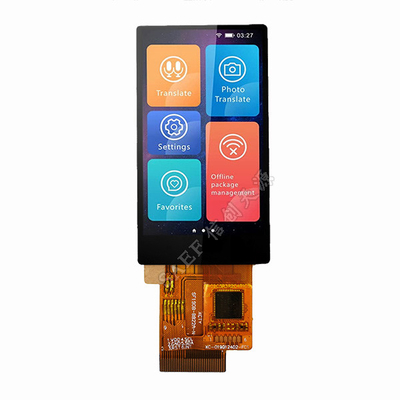

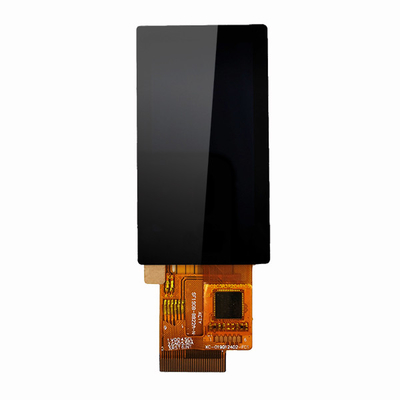

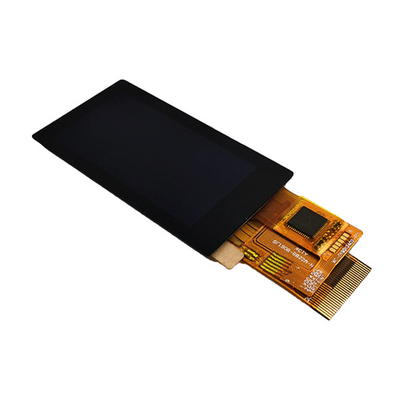

1.9" IPS CTP TFT LCD Display With SPI/RGB Interface, 350cd/M2 TFT 1.9" For Embedded Systems And Consumer Products Product Image
( without Touch )
( with CTP touch panel )
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
Factory Facilities and Certificates
Search keyword: tft 1.9, tft 1.9", 1.9 tft lcd, 1.9" tft lcd, 1.9" inch tft lcd, tft lcd 1.9, 1.9 tft display, 1.9" tft display, 1.9 inch tft display, tft display 1.9, tft display 1.9", 1.9 inch tft screen, 1.9" tft screen, 1.9 inch tft screen, tft screen 1.9, TFT screen 1.9 inch, TFT screen 1.9", 1.9 inch tft, 1.9" inch TFT lcd, 1.9" inch tft lcd screen, 1.9" tft screen, 1.9” inch tft lcd display, tft lcd display 1.9”
Scenarios for TFT LCDscreen applications
1. Consumer electronics: The most widely used TFT LCD screen is in consumer electronics, including smart phones, ...
2. Medical equipment field: TFT LCD LCD screen has also been widely used in medical equipment. For example, medical equipment such as ultrasound machines, electrocardiogram machines, blood pressure monitors, and thermometers in hospitals all require high-definition, high-contrast displays so that doctors can make more accurate diagnoses of their conditions.
3. Industrial automation field: TFT LCD LCD screen is also widely used in the field of industrial automation. For example: CNC machine tools, industrial machines ...
4. Automotive electronics: TFT LCD LCD screen is also a very common application in the field of automotive electronics. For example, automotive instruments and navigation equipment all require high-definition, high-color saturation display screens so that drivers can have a better driving experience.
Performance requirements for different application areas
1. High definition: The application field of TFT LCD screen generally requires high-definition display effect, such as: smart phone, tablet ...
2. High brightness: For the display of outdoor applications, such as billboards, information prompt screens, etc., it is necessary to have a high-brightness display effect, so that the information can still be clearly displayed in the environment with strong sunlight.
3. High contrast: In order to make the display content clearer and clearer, the display screen required by the application field also needs to have a high-contrast display.
4. High toughness: The display screen in the field of industrial automation needs to have high toughness in order to withstand vibration, impact, etc. in different environments.
