10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight

10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight
10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight
10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight

Large Image :  10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO101YH-8958A-CT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight

Description
Product: 10.1" Inch TFT LCD Resolution: 1024x600 Dots
Touch Screen: With CTP Cover Glass Dimension: Customizable
Outline Dimension: 235 × 143 × 6.53 Mm Viewing Direction: All Viewing Angles (85/85/85/85)
Interface: RGB Pin Number: 50 Pins
Connection: Plugging Surface Luminance: 500 Cd/m2(nits)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant
Highlight:

10.1 Inch PCAP TFT Display

,

PCAP TFT Display 1024x600

,

LED Backlight RGB TFT Display

10.1 inch 1024x600 dots TFT LCD IPS All Viewing Direction Display Module RGB Interface LED Backlight



High Brightness IPS 10.1 inch RGB TFT Display 1024x600 with PCAP​ Description





SFTO101YH-8958A-CT is a 10.1 inch RGB interface High Brightness 1024 x 600 IPS TFT-LCD module with projected capacitive touch panel (PCAP). This TFT module is featured with IPS technology which is having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and high brightness of 500 nits (typical value). If customers require higher brightness, pls contact our sales to increase the brightness to 1000 nits.  This SFTO101YH-8958A-CT RGB model is also available in resistive touch screen options of SFTO101YH-8958A-T.




Product: 10.1" Inch TFT LCD Resolution: 1024x600 Dots
Touch Screen: With CTP Cover Glass Dimension: Customizable
Outline Dimension: 235 × 143 × 6.53 mm Viewing Direction: All Viewing Angles (85/85/85/85)
Interface: RGB Pin Number: 50 Pins
Connection: Plugging Surface Luminance: 500 Cd/m2(nits)
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant









High Brightness IPS 10.1 inch RGB TFT Display 1024x600 with PCAP​ Drawing

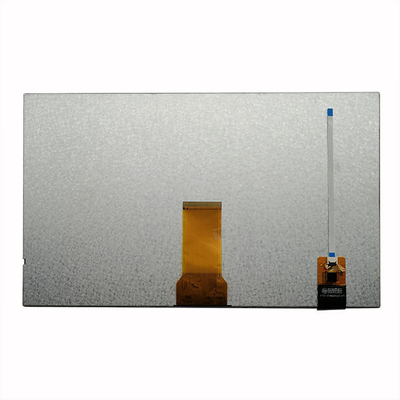

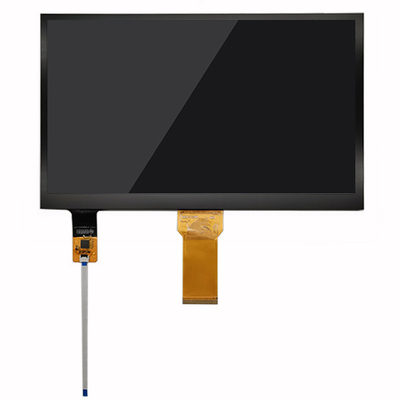

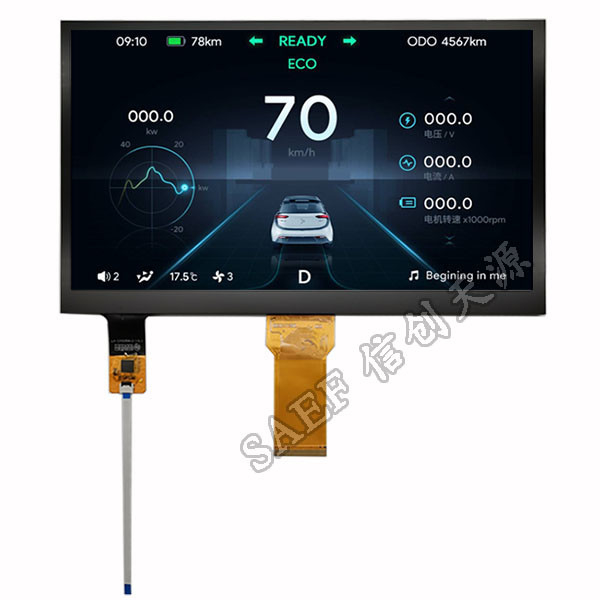

High Brightness IPS 10.1 inch RGB TFT Display 1024x600 with PCAP​ Real Product Image



10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 0

10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 1





10.1 Inch PCAP TFT Display 1024x600 Dots RGB Interface With LED Backlight 2
