Product Details:
|
Product: | 5" Inch TFT LCD Touch | Resolution: | 720x1280 Dots |
---|---|---|---|
Driver IC: | ILI9881C Or Equivalent | Touch Screen: | With Capacitance Touch Panel(Optional) |
Cover Glass Dimension: | Customizable | Viewing Direction: | Free(80/80/80/80) |
Outline Dim.: | 66.10(W) X 120.40(L) X 2.16(T) Mm | Active Area: | 62.10 X 110.40 Mm |
Interface: | MIPI (customizable) | Connection: | FPC Connector Type |
Pin Number: | 25 Pins (customizable) | Surface Luminance: | 300 Cd/m2(nits) |
Supply Voltage: | 2.8 V(TYP Value) | Backlight Type: | White LED |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | MIPI 5 Inch TFT LCD,5 Inch TFT LCD 720x1280,CTP TFT LCD 5 Inch |
TFT LCD Touch 5" Inch HD 720x1280 Portrait IPS Full Viewing Angle TFT With MIPI Interface With CTP LCD Module
5.0" TFT 720x1280, TFT LCD 5.0 inch Description
SF-TC500I-8725B-N TFT LCD module is a 5” inch diagonal size portrait mode HD 720x1280 IPS free viewing angle full color display. SF-TC500I-8725B-N has another version which is Capacitive touch screen, model number is SF-TC500I-8725B-CT. It is optional to be with or without PCAP. This module supports MIPI Interface. SF-TC500I-8725B-N model is having module dimension of 66.10(W) x 120.40(L) x 2.16(T) mm and active area size of 62.10 x 110.40 mm.
SF-TC500I-8725B-N is integrated with ILI9881C controller on module, and its operating voltage ranges from 2.6V to 3.3V. typical value is 2.8V.
The surface luminance is 300 cd/m2 (Nits). If you would like to use it as landscape mode or adjust the luminance, please contact with us for more technical support. The model has been widely used in home automation, house appliance, embedded systems, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
Product: | 5" Inch TFT LCD Touch | Resolution: | 720x1280 Dots |
---|---|---|---|
Driver IC: | ILI9881C Or Equivalent | Touch Screen: | without touch, PCAP optional |
Cover Glass Dimension: | Customizable | Viewing Direction: | Free(80/80/80/80) |
Outline Dim.: | 66.10(W) X 120.40(L) X 2.16(T) mm | Active Area: | 62.10 X 110.40 nm |
Interface: | MIPI (customizable) | Connection: | FPC Connector Type |
Pin Number: | 25 Pins (customizable) | Surface Luminance: | 300 Cd/m2(nits) |
Supply Voltage: | 2.8 V(TYP Value) | Backlight Type: | White LED |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Pin Definition
Pin1, LED A, LED Anode
Pin2, LED K, LED Cathode
Pin3, VCC, Power Supply 2.8V
Pin4, IOVCC, Power Supply 1.8V/2.8V Voltage
Pin5, GND, Power Ground
Pin6, CLKP , DSI-CLK+ clock signals
Pin7, CLKN, DSI-CLK- clock signals
Pin8, GND, Power Ground
Pin9, D0N , DSI-D0- data signals
Pin10, D0P, DSI-D0+ data signals
Pin11, GND, Power Ground
Pin12, D1N, DSI-D1- data signals
Pin13, D1P, DSI-D1+ data signals
Pin14, GND, Power Ground
Pin15, D2N, DSI-D2- data signals
Pin16, D2P, DSI-D2+ data signals
Pin17, GND, Power Ground
Pin18, D3N, DSI-D2- data signals
Pin19, D3P, DSI-D2+ data signals
Pin20, GND, Power Ground
Pin21, TE, Power Supply 2.8V
Pin22, LCD_ID, LCD_ID
Pin23, RESET, Register select pin
Pin24, GND, Power Ground
Pin25, GND, Power Ground
5.0" TFT 720x1280, TFT LCD 5.0 inch Drawing

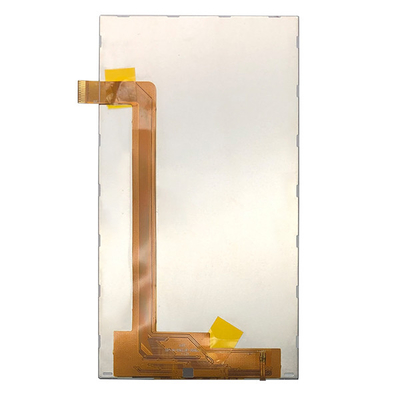

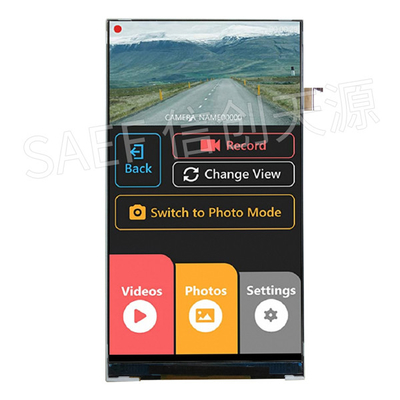

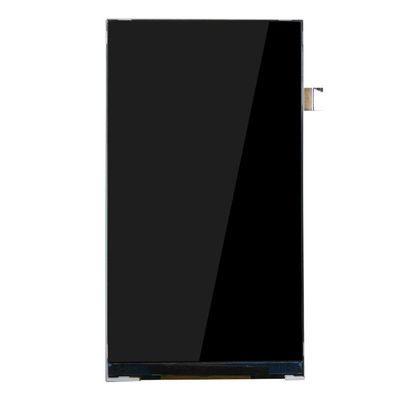

5.0" TFT 720x1280, TFT LCD 5.0 inch Product Image
