PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface
PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface

Large Image :  PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC350H-9496G-CT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: The price for bulk order varies depending on the lot order quantity or the annual quantity demand.
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface

Description
Product: 3.5 Inch TFT PCAP Touch Screen Resolution: 320x480 Pixels
Viewing Direction: 12:00 Touch Screen: With Capacitive Touch Screen (Optional)
Interface: MCU Interface Pin Number: 39 Pins ( Customizable )
Connection: Plugging ( Customizable ) Surface Luminance: 400 Cd/m2 (can Be Customized)
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

HVGA PCAP TFT Display

,

320x480 PCAP TFT Display

,

MCU Touch TFT Display

PCAP Touch TFT 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface With Capactive Touch Screen

SAEF TECHNOLOGY SF-TC350H-9496G-CT is a portrait 3.5 inch full color TFT-LCD display with 320x480 resolution (320 horizontal by 480 vertical pixels array). module surface brightness 400 cd/m2 (typical value) for the application requiring brighter backlighting, pls contact our sales. the surface brightness can be customized to be 1000 cd/m2. SF-TC350H-9496G-CT can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

SF-TC350H-9496G-CT supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.3V, typical voltage is 2.8V. and supporting MCU 18bits and 16bits interface. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful imageis.

Product: 3.5 Inch TFT PCAP Touch Screen Resolution: 320x480 Pixels
Viewing Direction: 12:00 Touch Screen: With Capacitive Touch Screen (Optional)
Interface: MCU Interface Pin Number: 39 Pins ( Customizable )
Connection: Plugging ( Customizable ) Surface Luminance: 400 Cd/m2 (can Be Customized)
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant


PCAP Touch TFT 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface With Capactive Touch Screen Product Drawing

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 0PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 1

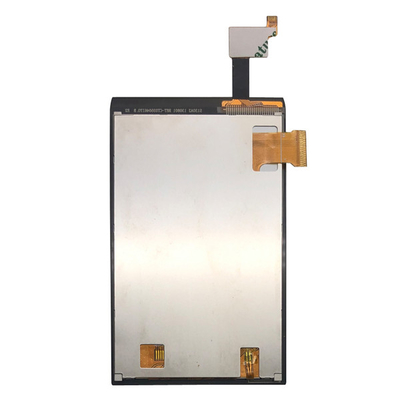

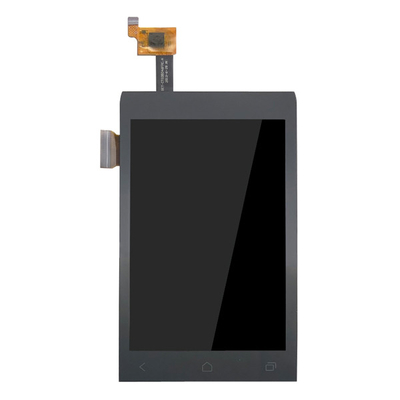

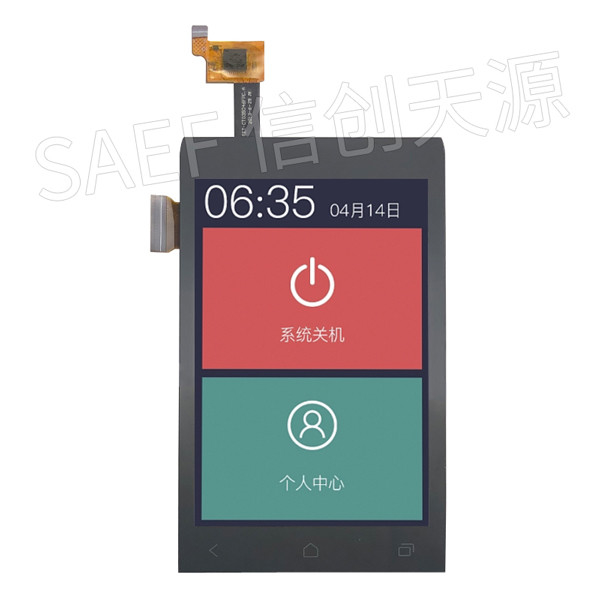

PCAP Touch TFT 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface With Capactive Touch Screen Product Image
PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 2PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 3PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 4

Factory Facilities and Certificates
PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 5PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 6


Projected Capacitive (PCAP) Touch Screen


Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 7
PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 8

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 9
PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 10

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 11

PCAP Touch TFT Display 3.5 Inch HVGA 320x480 Screen ILI9488 MCU Interface 12


Search keyword: tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5 inch, tft display 3.5", 3.5 inch tft lcd display, 3.5" tft screen, 3.5 inch tft screen, tft screen 3.5 inch, tft screen 3.5", 3.5 inch tft lcd screen, 320x480 TFT, 3.5 inch IPS, 3.5 inch HVGA, 3.5 inch Capacitive touch TFT, ILI9488 Display
