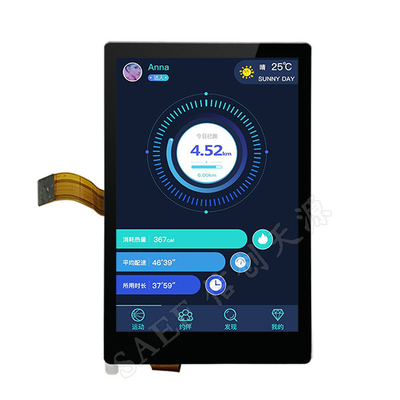

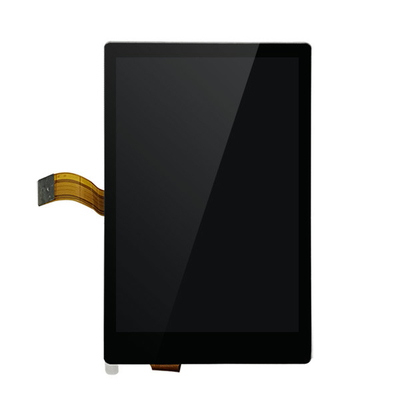

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface
480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

Large Image :  480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC430H-8579A-CT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface

Description
Product: 4.3 Inch TFT Touch Screen Resolution: 480x854
Touch Screen: Capacitive Touch Panel (CTP) Viewing Direction: IPS Full Viewing Angle
Driver IC: NT35512 Pin Number: 24 Pins
Connection: ZIF Surface Luminance: 250 Cd/m2 (nits)
Interface: MIPI LED Lifetime: 40,000 Hours
CTP Driver IC:: GT9137 Compliance: REACH & RoHS Compliant
Highlight:

IPS 4.3 Inch TFT LCD Display 480x854

,

4.3 Inch TFT LCD Display NT35512

,

480x854 TFT LCD Display Module NT35512

TFT LCD display module 4.3" 480x854 IPS NT35512 MIPI interface with CTP PCAP


4.3 inch Portrait IPS 480x854 dots TFT Touch Screen Description



SAEF TECHNOLOGY SF-TC430H-8579A-CT is a diagonal size 4.3” inch IPS type TFT LCD Display with resolution 480x854 pixels.
it is an all viewing angles with PCAP touch screen OCA attached , the PCAP is G+G structure with touch driver GT9137. SF-TC430H-8579A-CT supports MIPI interface while the touch screen is IIC interface.



Product: 4.3 Inch TFT Touch Screen Resolution: 480x854
Touch Screen: Capacitive Touch Panel (CTP) Viewing Direction: IPS Full Viewing Angle
Driver IC: NT35512 Pin Number: 24 Pins
Connection: ZIF Surface Luminance: 250 Cd/m2 (nits)
Interface: MIPI LED Lifetime: 40,000 Hours
CTP Driver IC:: GT9137 Compliance: REACH & RoHS Compliant




FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.





4.3 inch Portrait IPS 480x854 dots TFT Touch Screen Drawing





480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 0

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 1



480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 2

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 3











4.3 inch Portrait IPS 480x854 dots TFT Touch Screen Product Image

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 4

480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 5480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 6480x854 IPS 4.3 Inch TFT LCD Display Module NT35512 MIPI interface 7
