Product Details:
|
Product: | 2 Inch TFT QVGA | Resolution: | 320x240 |
---|---|---|---|
Touch Screen: | Without Touch Screen (Optional) | Cover Glass Dimension: | Customizable |
Viewing Direction: | 12 O'clock | Driver IC: | ILI9342C Or Compatible |
Interface: | SPI Interface | Connection: | Soldering |
Pin Number: | 15 Pins | Surface Luminance: | 250 Cd/m2(nits) |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Highlight: | Saef TFT LCD Display,ILI9342C TFT LCD Display,2 Inch SPI TFT Display |
Saef 2 Inch QVGA TFT LCD Display Screen SPI Lcd With ILI9342C Driver
2" inch Landscape QVGA TFT LCD Description
Saef Technology SF-TC200C-8563A1-N is a 2 inch TN type TFT LCD Display. Displaying QVGA 320x240 pixels, this TFT LCD module is built-in with ILI9342CIC. it supports SPI interface, supply voltage for analog (Vcc) is 3.2V(typical value).
SF-TC200C-8563A1-N LCD module is having anti-glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock.
it can be operating at temperature -20C to 70C.
Product: | 2 Inch TFT QVGA | Resolution: | 320x240 |
---|---|---|---|
Touch Screen: | Without Touch Screen (Optional) | Cover Glass Dimension: | Customizable |
Viewing Direction: | 12 O'clock | Driver IC: | ILI9342C Or Compatible |
Interface: | SPI Interface | Connection: | Soldering |
Pin Number: | 15 Pins | Surface Luminance: | 250 Cd/m2(nits) |
LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
2" inch Landscape QVGA TFT LCD Drawing
Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.

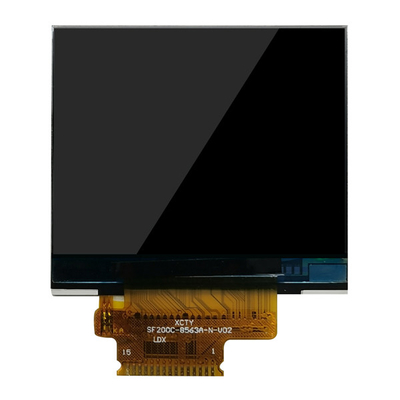

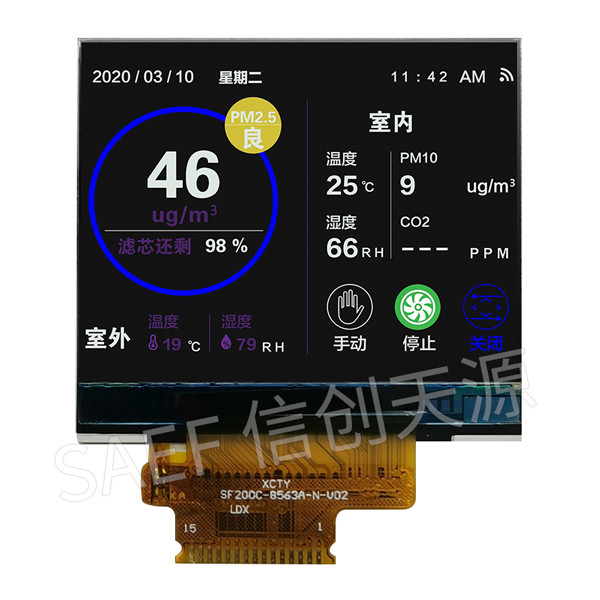

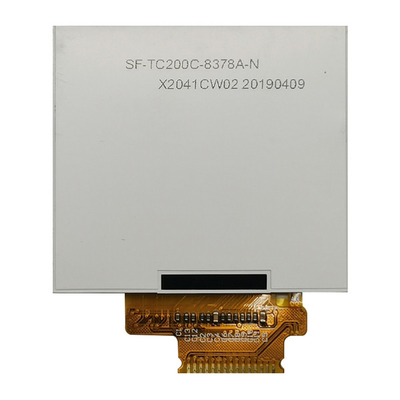

2" inch Landscape QVGA TFT LCD Real Product Image
