Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface
Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface
Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface

Large Image :  Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TO700B-8857A-CT
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface

Description
Keywords: 7" Inch TFT Touch Screen: CTP(Capacitive Touch Screen)
Resolution: 1024x600 Dots Cover Glass Dimension: Can Be Customized
LCM Interface: MIPI Surface Luminance: 300 Cd/m2
LED Lifetime: 40,000 Hours Pins: 30 Pins
Viewing Direction: All Viewing Angle(80/80/80/80) CTP Interface: I2C
Operating Temp.: –20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

PCAP TFT Display 7 Inch

,

1024x600 PCAP TFT Display

,

IPS TFT Display 7 inch

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface Product Description



Product Quick Details:

►Size : 7 inch TFT
►Resolution : 1024x600 dots
►View Direction : 85/85/85/85 (IPS)
►Interface : LVDS
►Outline Dimension: 190*138*5.78 mm

►Interface: MIPI
►Control-Board : No
►Brightness(cd/m²) : 300
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Panel (PCAP)
►Detect Point : 5 Fingers



Description

SAEF Technology SF-TO700B-8857A-CT is a 7”inch IPS type full viewing angle TFT LCD Display with resolution of 1024x600 pixels. It is with Capacitive Touch Screen(CTP), and the Gorilla cover glass is customizable.

This LCD module is has outline dimension of 190*138*5.78 mm, and AA size of 154.21x85.92 mm. This 7" TFT LCD is with PCAP(Capacitive Touch Screen). SF-TO700B-8857A-CT LCM interface is with MIPI interface, 30 pins. The CTP interface is I2C. SF-TO700B-8857A-CT is with 300cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from –20℃ to +70℃.

This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.





Product Information



Keywords: 7" Inch TFT
Resolution: 1024x600 Dots
LCM Interface: MIPI
Touch Screen: CTP(Capacitive Touch Screen)
Cover Glass Dimension: Gorilla cover Glass
LED Lifetime: 40,000 Hours
Viewing Direction: All Viewing Angle(80/80/80/80)
Surface Luminance: 300 Cd/m2
Pins: 30 Pins
CTP Interface: I2C
Operating Temp.: –20℃ To +70℃
Compliance: REACH & RoHS Compliant





7" PCAP TFT, MIPI 7 inch LCD Product Drawing

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 0

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 1



Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 2

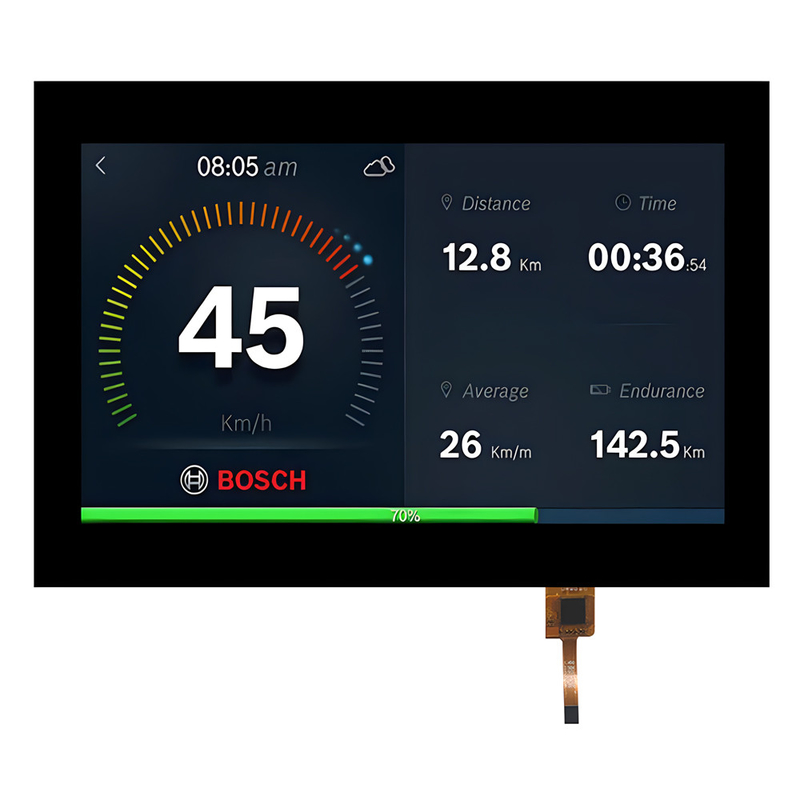

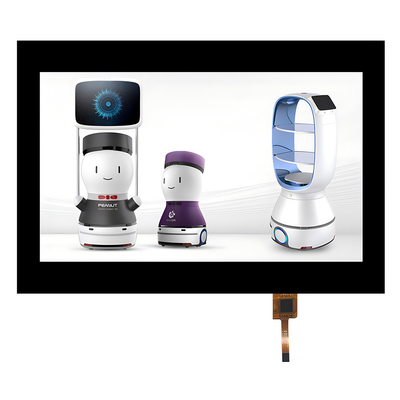

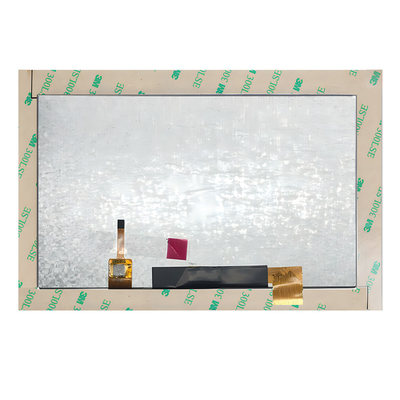

7" PCAP TFT, MIPI 7 inch LCD Real Product Image

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 3Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 4Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 5

Projected Capacitive (PCAP) Touch Screen

Projected capacitive (PCAP) touch technology provides fast and responsive response and professional-grade reliability. Saef Technology's projected capacitive touchscreens are designed for rigorous industrial, medical, and automotive applications. We can also combine PCAP touchscreens with liquid crystal displays (LCDs), an integrated embedded solution that helps streamline supply chains and assembly.



Sunlight Readable 7.6 Inch TFT LCD Display 1000 Nits 800x800 Pixels Square Type IPS Screen 4

Sunlight Readable 7.6 Inch TFT LCD Display 1000 Nits 800x800 Pixels Square Type IPS Screen 5



Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232



Sunlight Readable 7.6 Inch TFT LCD Display 1000 Nits 800x800 Pixels Square Type IPS Screen 6

Sunlight Readable 7.6 Inch TFT LCD Display 1000 Nits 800x800 Pixels Square Type IPS Screen 7

Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 10



Gorilla Touch Glass 7 Inch PCAP TFT Display 1024x600 MIPI Interface 11



Search keyword: tft 7", 7 tft lcd, 7" tft lcd,7 inch tft lcd, tft lcd 7, 7 tft display, 7" tft display, 7 inch tft display, tft display 7 inch, tft display 7", 7 inch tft lcd display, 7 inch touch TFT, 7" tft touch lcd display, TFT 7" with CTP, 7" inch CTP touch TFT, 7" TFT CTP touch lcd.
