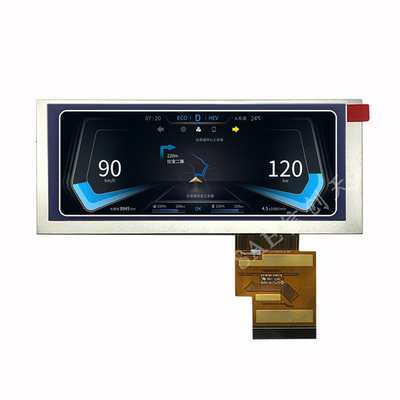

5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display

5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display
5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display

Large Image :  5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TO580V-8963A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 3000K pcs per month

5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display

Description
Keywords: 5.8 Inch Bar Type TFT Display Touch Screen: With Capacitive Touch Option (Customizable)
Resolution: 800x320 Cover Glass Dimension: Customizable
Interface: RGB Surface Luminance: 400 Cd/m2 (nits)
LED Lifetime: 40,000 Hours Pins: 40 Pins
Viewing Direction: 12 O'clock Connection: ZIF / Plugging
Operating Temp.: –30℃ To +85℃ Compliance: REACH & RoHS Compliant
Highlight:

5.8 Inch Bar Type TFT LCD

,

24 Bits Bar Type TFT LCD

5.8 Inch Bar Type TFT LCD Module with HX8264 HX8678 RGB 24 bits Vehicle Advertising Display

Bar Type 5.8" 800x320 Vehicle and advertising TFT Display Decription



SAEF Stretch Bar Type TFT :

1. The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information.

2. SAEF Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

3. We offer different sizes Bar Type TFT including sizes of 3.9 inch, 4.6 inch, 5.8 inch and 6.5 inch.



In order to meet with customers requirement especially for industrial applications, we develop more derivative solution from these Bar type TFT as below:

1- With screw hole on frame version option.

2- With Capacitive Touch Panel or Resistive Touch Panel option.

3- High Brightness version option.



SAEF SF-TO580V-8963A-N TFT LCD module is a 5.8 inch diagonal 800xRGBx320 full color bar type TFT Module outline dimension 154.4x63.34x3.7 mm, AA size 137.52x51.49 mm. This 5.8" stretch bar type TFT display can be custom designed with Resistive touch screen and capacitive touch screen. it can be used in embedded systems, industrial device, security and Vehicle and Advertising devices which require display in high quality and colorful image. SF-TO580V-8963A-N is with 400cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–30℃ to +80℃.



Keywords: 5.8 Inch Bar Type TFT Display Touch Screen: With Capacitive Touch Option (Customizable)
Resolution: 800x320 Cover Glass Dimension: Customizable
Interface: RGB Surface Luminance: 400 Cd/m2 (nits)
LED Lifetime: 40,000 Hours Pins: 40 Pins
Viewing Direction: 12 O'clock Connection: ZIF / Plugging
Operating Temp.: –30℃ To +85℃ Compliance: REACH & RoHS Compliant



FAQ:



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.



Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.



Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Bar Type 5.8" 800x320 Vehicle and advertising TFT Display Drawing



5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 0







Bar Type 5.8" 800x320 Vehicle and advertising TFT Display Real Product photos

5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 1

5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 25.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 3

Factory and Facilities



5.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 45.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 55.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 65.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 75.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 85.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 95.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 105.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 115.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 125.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 135.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 145.8 Inch Bar Type TFT LCD Module RGB 24 Bits For Vehicle Advertising Display 15






Search keyword: tft 5.8", 5.8 tft lcd, 5.8" tft lcd, 5.8 inch tft lcd, tft lcd 5.8, 5.8 tft display, 5.8" tft display, 5.8 inch tft display, tft display 5.8 inch, tft display 5.8", 5.8 inch tft lcd display, bar type TFT 5.8 inch, bar type TFT 5.8",5.8 inch bar type TFT, 5.8" bar type display. stretched bar type TFT 5.8", 5.8 inch stretched bar type TFT, 5.8" stretch bar type display.
