Product Details:
|
Keywords: | 3.9" Inch Bar Type TFT | Touch Screen: | Customizable |
---|---|---|---|
Resolution: | 480x128 | Cover Glass Dimension: | Optional For Customization |
Interface: | RGB Interface | Surface Luminance: | 500 Cd/m2 (nits) |
LED Lifetime: | 40,000 Hours | Pins: | 40 PINS |
Viewing Direction: | 12:00 | Connection: | ZIF / Plugging Connector Type |
Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Highlight: | 3.9 Inch Bar Type TFT LCD,40 Pin Bar Type TFT LCD,480x128 40 Pin TFT Display |

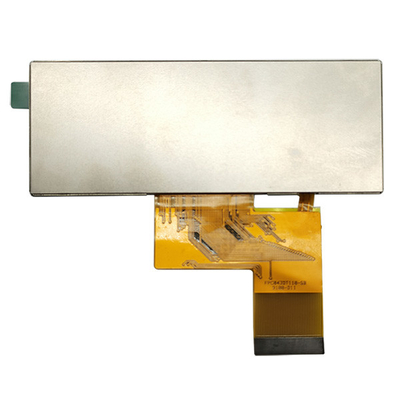

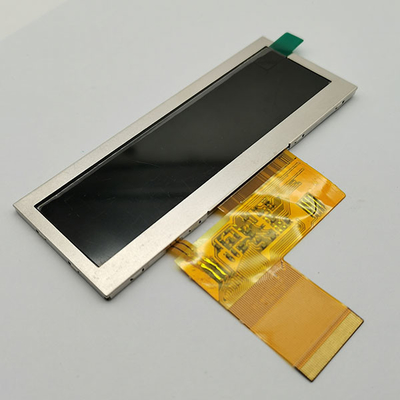

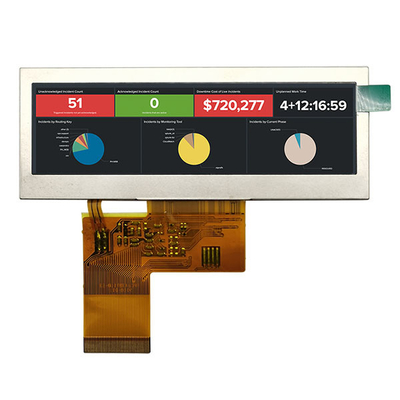

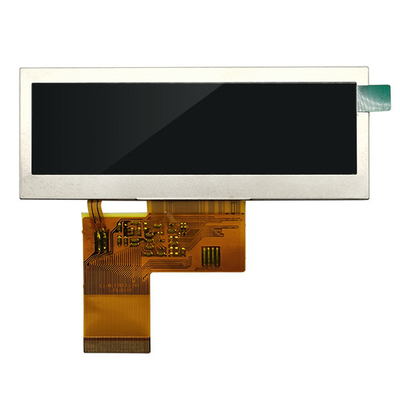

3.9 Inch Bar Type 480x128 Touch TFT Lcd Display 40 Pin RGB Interface Product Introduction
Product Quick Details:
1. LCD Size: 3.9” inch TFT
2. Resolution: 480x128
3. Viewing Angle: Free
4. Outline Dimension: 105.5x40.64x2.95 mm
5. LCD Shape: Bar Type
6. LCD Interface Type: RGB
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: RTP or CTP customizable
Product Features:
1. SF-TO390B-8960A-N TFT LCD module is a 3.9 inch diagonal 480xRGBx128 full color bar type TFT Module..
2. This module supports RGB Interface. SF-TO390B-8960A-N model is having module dimension of 105.5x40.64x2.95 mm and Active area size of 95.04x25.34 mm;
3. SF-TO390B-8960A-N is integrated with ST7282A controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.
4. SF-TO390B-8960A-N is with 500cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–20℃ to +70℃.
5. This 3.9" TFT LCD can be custom design with Resistive touch screen and capacitive touch screen.
Keywords: | 3.9 Inch Bar Type TFT LCD Display | Touch Screen: | Customizable |
---|---|---|---|
Resolution: | 480x128 | Cover Glass Dimension: | Customizable |
Interface: | RGB | Surface Luminance: | 500 Cd/m2 (nits) |
LED Lifetime: | 40,000 Hours | Pins: | 40 Pins |
Viewing Direction: | 12 O'clock | Connection: | ZIF / Plugging |
Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Product Advantages:
1.The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information.
2.We offer different sizes Bar Type TFT (Stretched Bar LCD Display) including sizes of 3.9 inch, 4.6 inch and 5.2 inch. In order to meet with customers requirement especially for industrial applications.
3.We develop more derivative solution from these Bar type TFT as below: 1- With screw hole on frame version option. 2- With Capacitive Touch Panel or Resistive Touch Panel option. 3- High Brightness version option.
4. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
5. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
6. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.
7. Price competitive solution with good quality among the same kinds in the LCD industry.
8. Easy to install and easy to maintain.
Applications:
This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. SAEF Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.
Bar Type 3.9" 480x128 TFT Display Drawing
No. | Symbol | Description |
---|---|---|
1 | VLED- | Backlight LED Cathode |
2 | VLED+ | Backlight LED Anode. |
3 | GND | System Ground |
4 | VCC | Power supply for logic operation |
5~12 | R0~R7 | Data bus |
13~20 | G0~G7 | Data bus |
21~28 | B0~B7 | Data bus |
29 | GND | System Ground |
30 | DCLK | Pixel clock signal |
31 | DISP | Display on/off control |
32 | HSYNC | Horizontal Sync signal |
33 | VSYNC | Vrtical Sync signal |
34 | NC | No connection (Option DE) |
35 | NC | No connection |
36 | GND | System Ground |
37 | XR | Right electrode |
38 | YD | Bottom electrode |
39 | XL | Left electrode |
40 | YU | Top electrode |
