800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch

800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch
800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch

Large Image :  800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TO460B-8959A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch

Description
Keywords: Bar Type 4.6" Inch TFT LCD Display Touch Screen: Capacitive Touch Screen Optional
Resolution: 800x320 Cover Glass Dimension: Customizable
Interface: RGB Surface Luminance: 400 Cd/m2 (nits)
LED Lifetime: 40,000 Hours Pins: 40 Pins
Viewing Direction: 12 O'clock Connection: ZIF / Plugging
Operating Temp.: –20℃ To +70℃ Compliance: REACH & RoHS Compliant
Highlight:

800x320 Bar Type TFT LCD

,

4.6 Inch Bar Type TFT LCD

,

PCAP TFT LCD Screen

Bar Type TFT screen 4.6 Inch LCD Module 800x320 ILI5960 ILI6122 with PCAP Capacitive Touch option 40 Pin RGB Interface

4.6" 800x320 Bar Type TFT Display Description

SAEF SF-TO460B-8959A-N TFT LCD module is a 4.6 inch diagonal 800xRGBx320 full color bar type TFT Module.
This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. SAEF Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

Product Quick Details:
1. LCD Size: 4.6” inch TFT
2. Resolution: 800x320
3. Viewing Angle: 12 O'clock
4. Outline Dimension: 105.5x40.64x2.95 mm
5. LCD Shape: Bar Type
6. LCD Interface Type: RGB
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: RTP or CTP customizable


Keywords: Bar Type 4.6 Inch TFT LCD Display Touch Screen: Capacitive Touch Screen Optional
Resolution: 800x320 Cover Glass Dimension: Customizable
Interface: RGB Surface Luminance: 400 Cd/m2 (nits)
LED Lifetime: 40,000 Hours Pins: 40 Pins
Viewing Direction: 12 O'clock Connection: ZIF / Plugging
Operating Temp.: –20℃ To +70℃ Compliance: REACH & RoHS Compliant


Product Advantages:
1.The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information.
2.We offer different sizes Bar Type TFT (Stretched Bar LCD Display) including sizes of 3.9 inch, 4.6 inch and 5.2 inch. In order to meet with customers requirement especially for industrial applications.
3.We develop more derivative solution from these Bar type TFT as below: 1- With screw hole on frame version option. 2- With Capacitive Touch Panel or Resistive Touch Panel option. 3- High Brightness version option.
4. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
5. Wide Temperature of Top of -20℃ to +70℃ and high quality level for industrial applications.
6. Price competitive solution with good quality among the same kinds in the LCD industry.

Product Features:
This LCD module is has outline dimension of 120x56.25x2.85 mm, and AA size of 108x44.5 mm. This 4.6" TFT LCD can be custom design with Resistive touch screen and capacitive touch screen. it can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. SAEF SF-TO460B-8959A-N is with 400cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–20℃ to +70℃.

Customer Service
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. Your inquiry related to our products or price will be replied in 24hrs.
3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.
4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.
5. Buyer can dispatch technician to our factory for free training before delivery.
6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.



4.6" 800x320 Bar Type TFT Display Drawing



800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 0

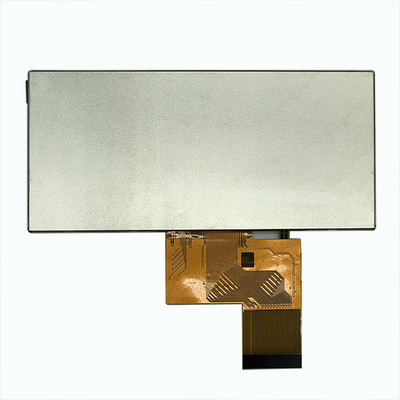

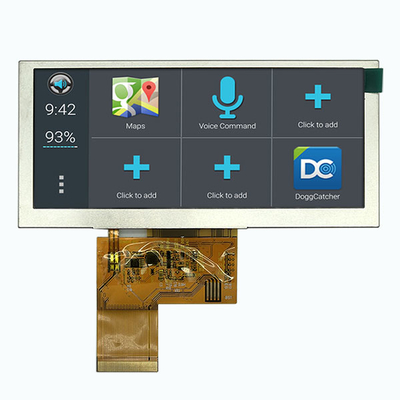

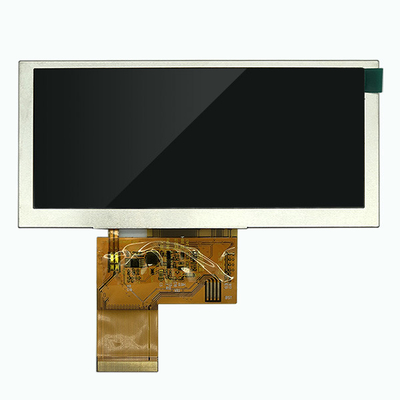

4.6" 800x320 Bar Type TFT Display Real Product Image
800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 1800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 2800x320 Bar Type TFT LCD Screen 4.6 Inch with PCAP Capacitive Touch 3


Search keyword: tft 4.6", 4.6 tft lcd, 4.6" tft lcd,4.6 inch tft lcd, tft lcd 4.6, 4.6 tft display, 4.6" tft display, 4.6 inch tft display, tft display 4.6 inch, tft display 4.6", 4.6 inch tft lcd display, bar type TFT 4.6 inch, bar type TFT 4.6", 4.6 inch bar type TFT, 4.6" bar type display.
