2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC
2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC

Large Image :  2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC200P-8937A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC

Description
Product: 2" Inch TFT LCD Display Touch Screen: Without Touch Screen (Customizable)
Resolution: 176x220 Dots Viewing Direction: 6 O'clock
Interface: MPU 8/16_Bit Pin Number: 36 Pins
Connection: FPC Connector Type Surface Luminance: 300 Cd/m2
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G Driver IC Product Introduction


SF-TC200P-8937A-N TFT LCD display is a 2 inch diagonal size, 176xRGBx220 dots resolution and full color TFT LCD display. This module supports MCU 8/16Bit Interface and the module dimension of 39.36 x 50.18 mm and Active area size of 31.68 x 39.60 mm; SF-TC200P-8937A-N is integrated with IL9225G controller and its logic supply voltage ranges from 2.6V to 3.3V. this 2 inch TFT LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. the 2 inch LCD screen is portrait mode with 300 cd/m2 surface luminance. If you would like to use it as landscape mode or increase the luminance, please contact with us for more technical support. This 2.0" TFT LCD Module works well for GPS device, cash reader, POS terminal, signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices.



Features

This is a China factory supply low cost TFT LCD 2" color dispaly.

This 2 inch TFT display has 176x220 QCIF resolution.

This 2 inch LCD display is without touch, but we are capable to design a resistive touch screen or capacitive touch screen on the display.

This 2 inch color display is a TN type TFT LCD, viewing direction is 6 o'clock.

This TFT LCD 2 inch supports MCU interface, if you have to use SPI or RGB interface, we have other options for you.



Product: 2" Inch TFT LCD Display
Resolution: 176x220 Dots
Interface: MPU 8/16_Bit
Connection: FPC Connector Type
Operating Temp.: -20℃ To +70℃
Touch Screen: Without Touch Screen (Customizable)
Viewing Direction: 6 O'clock
Pin Number: 36 Pins
Surface Luminance: 300 Cd/m2
Compliance: REACH & RoHS Compliant



2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G Driver IC Product Drawing

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 02" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 1

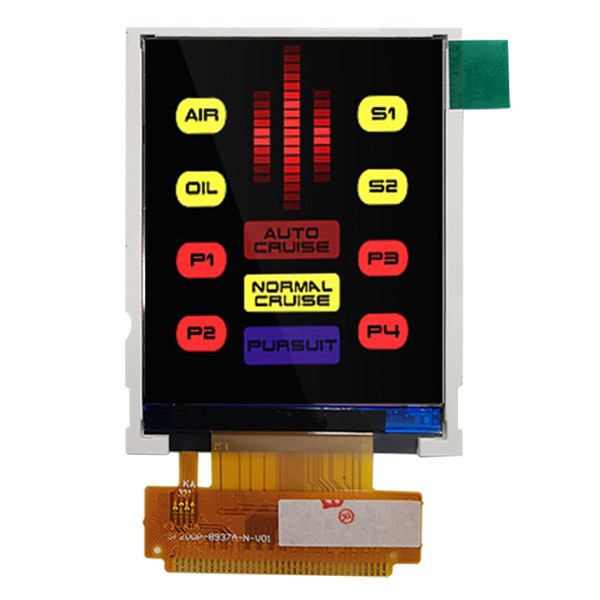

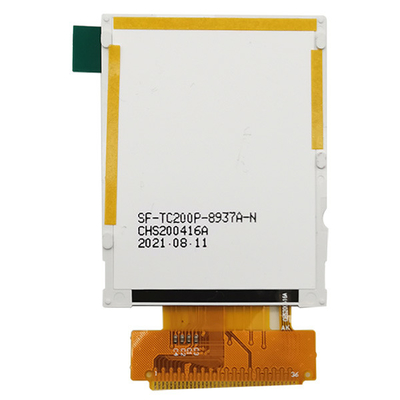

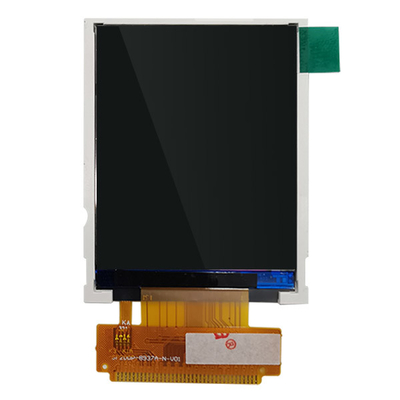

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G Driver IC Product Image

2" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 22" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 32" TFT LCD Display MCU Interface 176x220 Pixels With ILI9225G IC 4





TFT LCD Display Module Manufacturer - more than 300 TFT standard items on line



SAEF Technology is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96", 1.22" round, 1.28" round,1.44", 1.54", 1.77, 2", 2.1" round, 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" and 28" TFT (diagonal size of the active area) and so on. There are more than 300 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.



SAEF TFT displays are qualified under industrial standard including standard TFT-LCD modules, IPS TFT, High brightness TFT LCD (sunlight readable display), TFT panels with controller boards, Bar Type TFT, Wide Temperature TFT LCD. These displays include landscape or portrait modes. SAEF TFT LCD displays are available in various resolutions as well as touch screen optional in resistive and projected capacitive (PCAP touch screen) technology. Many of our TFT display modules have more than one interface available including MCU, RGB, TTL, LVDS and MIPI DSI. SAEF TFT modules are perfect for a number of applications including industrial control, coffee machine, medical equipment, POS system, automation, GPS navigator, white goods, energy control, telecoms, medical equipment and etc.





Search keyword: tft 2", 2 tft lcd, 2" tft lcd, 2 inch tft lcd, tft lcd 2, 2 tft display, 2" tft display, 2 inch tft display, tft display 2 inch, tft display 2", 2 inch tft lcd display, 2" tft screen, 2 inch tft screen, tft screen 2 inch, tft screen 2", 2 inch tft lcd screen
