QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface

QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface
QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface
QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface

Large Image :  QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC200H-8844A-N
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface

Description
Product: 2 Inch TFT LCD Display Screen Touch Screen: Without Touch Panel (optional)
Resolution: 240x320 Cover Glass Dimension: Customizable
Viewing Direction: All Viewing Direction ( IPS) Interface: SPI, MCU, RGB (Customizable)
Pin Number: 51 Pins (Customizable) Connection: Plugging (Customizable)
Surface Luminance: 300 Cd/m2 (nits) (Customizable) LED Lifetime: 40,000 Hours
Highlight:

240x320 2 Inch LCD Display RGB

,

QVGA MCU 2 Inch LCD Display

,

RGB QVGA IPS TFT Screen

2 Inch IPS TFT Screen QVGA 240x320 SPI MCU RGB Interface LCD Display



IPS 2 inch TFT Display,TFT LCD 2" Description



Saef SF-TC200H-8844A-N is a 2 inch diagonal full color 240x320 QVGA TFT LCD screen module. This 2 inch TFT LCD module is built in with ST7789V IC; it supports SPI, RGB and MCU Interface. SF-TC200H-8844A-N model is having module dimension of 38.5x52.05x2.6 mm and Active area size of 30.6x40.8 mm; it integrated ST7789V controller on module.

This 2” TFT LCD module is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 2" TFT scrren module is featured with brightness up to 300 cd/m2 nits (typical value), it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



SF-TC200H-8844A-N is a TFT screen 2inch without Touch Screen TFT LCD module,  but it is customizable under customer's demand to design resistive touch or capacititve touch screen. This lcd module is having anti-glare surface panel, all viewing direction IPS display.



Product: 2 Inch TFT LCD Display Screen Touch Screen: Without Touch Panel (optional)
Resolution: 240x320 Cover Glass Dimension: Customizable
Viewing Direction: All Viewing Direction ( IPS) Interface: SPI, MCU, RGB (Customizable)
Pin Number: 51 Pins (Customizable) Connection: Plugging (Customizable)
Surface Luminance  300Cd/m2 (nits) (Customizable) LED Lifetime: 40,000 Hours






IPS 2 inch TFT Display,TFT LCD 2" Drawing



QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 0

QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 1

QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 2

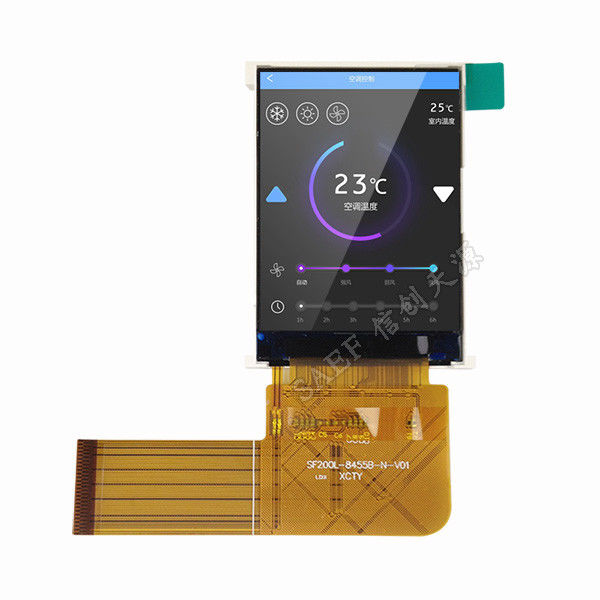

IPS 2 inch TFT Display,TFT LCD 2" Real Product Image



QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 3QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 4

QVGA 240x320 2 Inch LCD Display , IPS TFT Screen SPI MCU RGB Interface 5
