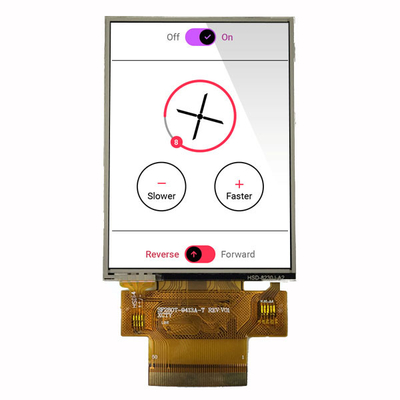

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface
TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface

Large Image :  TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC280P-9413B-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 3-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface

Description
Product: 2.8" Inch TFT LCD MODULE Touch Screen: With Resistive Touch Screen
Resolution: 240x320 Viewing Direction: 12 O'clock
Interface: RGB/MCU Pin Number: 50 Pins
Connection: FPC Type Connection Surface Luminance: 280-350 Cd/m2
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface



Product Quick Details:

1. LCD Size: 2.8” TFT

2. Resolution: 240x320

3. Viewing Angle: 12 O’clock

4. Outline Dimension: 50.0*69.2*3.5

5. Driver IC: ILI9341V

6. Interface Type: RGB/MPU 18Bit

7. Touch Panel: Resistive Touch Panel

8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C



Product Features:
1. SF-TC280P-9413B-T is TFT LCD module is a 2.8 inch diagonal size, 240xRGBx320, full color TFT LCD display.

2. This module supports RGB/MCU 18Bit Interface. SF-TC280P-9413B-T model is having module dimension of 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm;

3. SF-TC280P-9413B-T is integrated with ILI9341V controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.

4. It can be operating at temperatures from -20 to +70; its storage temperatures range from -30 to +80.

5. SF-TC280P-9413B-T is portrait mode LCD module, with 280-350 cd/m2 luminance. If you would like to use it as landscape mode or increase the luminance, please contact with us for more technical support.

6. This 2.8" TFT LCD Module works well for signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices.



Product: 2.8" Inch TFT LCD MODULE Touch Screen: With Resistive Touch Screen
Resolution: 240x320 Viewing Direction: 12 O'clock
Interface: RGB/MCU Pin Number: 50 Pins
Connection: FPC Type Connection Surface Luminance: 280-350 Cd/m2
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant





2.8" Inch Touch LCD Display Drawing

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 0TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 1



TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 2

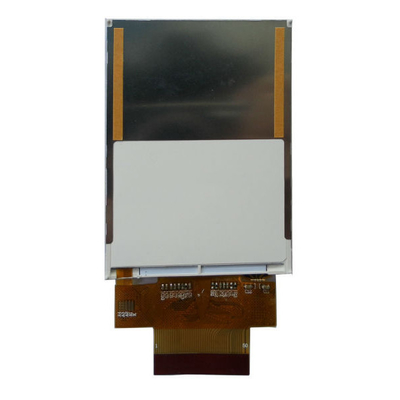

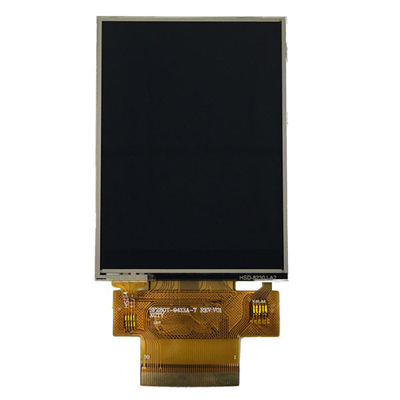

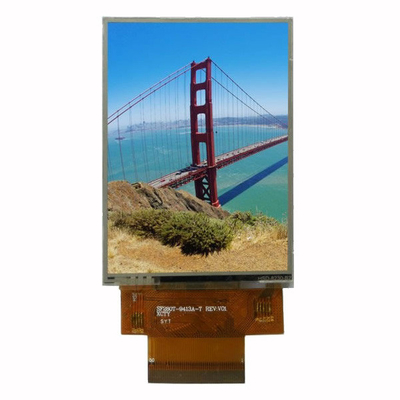

2.8" Inch Touch LCD Display Real Product Image

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 3TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 4

TFT LCD Screen 2.8" Inch Touch LCD Display 240x320 With ILI9341 IC And RGB/MCU Interface 5









SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN





SIZE



DETAILS OUR P/N



2.8 inch



240*320 TN type TFT lcd without touch(RGB+MCU interface), with ILI9341V driver IC SF-TC280P-9413B-N





2.8 inch





240*320 TN type TFT lcd without touch(SPI interface), with ILI9341V driver IC



SF-TC280P-8722B-N





2.8 inch



240*320 TN type TFT lcd with resistive touch panel (RGB interface), with ST7789V driver IC

SF-TC280T-8616A-T



2.8 inch



240*320 IPS full viewing angle TFT lcd without touch, 3-Wire SPI+RGB(18Bit) interface, with ILI9341V driver IC SF-TC280B-8953A-N
2.8 inch 240*320 IPS full viewing angle TFT lcd with resistive touch panel, 3-Wire SPI+RGB(18Bit) interface, with ILI9341V driver IC SF-TC280B-8953A-T
2.8 inch 240*320 IPS full viewing angle TFT lcd without touch, MCU/SPI/RGB interface, with ILI9341V driver IC SF-TC280B-9750B-N
2.8 inch 240*320 IPS full viewing angle TFT lcd with CTP, MCU interface, with ILI9341V driver IC SF-TC280B-8518A-CT
