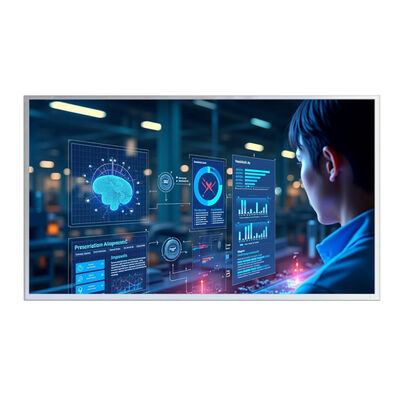

15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation

15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation
15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation 15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation

Large Image :  15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SFTO1560SM-7411AN
Document: SFTO1560SM-7411AN Datasheet...et.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD46- 49 (FOB Shenzhen, Price varies based on order quantity & configuration)
Packaging Details: Standard Export Package
Delivery Time: 3 working days for samples, 5-6 weeks for MP
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month

15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation

Description
Display Size: 15.6 Inches Resolution: 1920x1080 Full HD
Technology: IPS Panel Interface: EDP 1.2 (2 Lane)
Surface Luminance: 500–600 Cd/m² Viewing Angle: 85°/85°/85°/85° (L/R/T/B)
Color Gamut: 45% NTSC Backlight: LED, 40,000 Hours Lifetime
Operating Temp: 0°C To 50°C Power Supply: 3.3V DC
Mounting: Standard VESA Or Custom Surface Treatment: Anti-Glare (3H Hardness)
Compliance: RoHS, Halogen-Free Touch Ready: Capacitive Touch Panel
Highlight:

15.6-inch FHD TFT LCD module

,

IPS industrial grade display

,

eDP interface LCD display



Engineered for Precision: The 15.6-Inch FHD TFT LCD Module Designed for Industrial Excellence



Saef Technology Limited introduces the SFT01560SM-7411AN, a high-performance 15.6-inch FHD TFT LCD module built to meet the rigorous demands of industrial automation, HMI systems, and embedded applications. With its IPS technology, wide viewing angles, and robust eDP interface, this display delivers exceptional clarity, reliability, and versatility for engineers and system integrators across Europe and the United States.



Key Design Parameters & Technical Superiority

  • Crisp Visual Performance:
    1920×1080 resolution with IPS technology ensures consistent color and clarity across 85° viewing angles—ideal for control panels and multi-viewer environments.

  • Industrial-Grade Durability:
    Featuring an anti-glare surface (3H hardness) and operating temperature range of 0°C to 50°C, this module excels in factory floors, medical devices, and outdoor kiosks.

  • Advanced eDP Integration:
    Supports eDP 1.2 with 2-lane architecture, simplifying integration while reducing cabling and power consumption—perfect for space-constrained designs.

  • High Brightness & Longevity:
    500–600 cd/m² luminance and 30,000–40,000-hour LED backlight ensure readability in high-ambient light and continuous operation scenarios.

  • Custom-Ready Architecture:
    While standard models come without touch, we offer fully customizable solutions—including resistive or capacitive touchscreens (RTP/CTP), modified bezels, alternative interfaces (LVDS, HDMI), and tailored firmware.



Solve Your Design Challenges

  • Need a display that fits tight mechanical specs?
    Our module’s slim profile (6.25mm depth) and precise outline (360.0×212.3mm) allow seamless integration into compact enclosures.

  • Concerned about signal integrity in noisy environments?
    The eDP interface with embedded clock reduces EMI, while our optional shielding and robust connector options ensure stable performance.

  • Looking for a display that supports 24/7 operation?
    With low power consumption (<0.7W typical) and high reliability ratings, this module is tested for extended use in industrial and commercial settings.

  • Require customization without high NRE costs?
    Saef offers free or low-cost semi-custom modifications, including touch integration, logo printing, connector changes, and driver board adaptations.



Why Choose Saef Technology?

  • ISO 9001:2015 & ISO 14001:2015 Certified – Commitment to quality and sustainability.

  • Direct Factory Support – Technical consultation, sample support, and rapid prototyping.

  • RoHS & Halogen-Free – Environmentally compliant for global markets.

  • Made for Experts – Datasheets include detailed pinouts, timing diagrams, optical specs, and mechanical drawings to accelerate your design cycle.



Target Applications

  • Human-Machine Interfaces (HMI)

  • Industrial Control Systems

  • Factory Automation & Robotics

  • Point-of-Sale (POS) Terminals

  • Medical Monitoring Devices

  • Transportation & Logistics Displays

  • Gaming & Interactive Kiosks



Ordering & Customization

Ready to integrate? Contact our engineering team for free customization quotes, sample requests, or technical datasheets. We support low MOQ and fast turnaround for OEM/ODM projects.





Mechanical Outline Dimensions



15.6-Inch FHD TFT LCD Module (1920x1080 IPS, eDP Interface) – Industrial Grade Display for HMI & Automation 0



Interface Pin Definition



Pin No. Symbol I/O Function
1 NC - Reserved for CD
2 H_GND P High Speed round
3 Lane1_N I Complement Signal Link Lane 1
4 Lane1_P I True Signal Link Lane 1
5 H_GND P High Speed round
6 Lane0_N I Complement Signal Link Lane 0
7 Lane0_P I True Signal Link Lane 0
8 H_GND P High Speed round
9 AUX_CH_P I True Signal Auxiliary Channel
10 AUX_CH_N I Complement Signal Auxiliary Channel
11 H_GND P High Speed round
12 LCD_VDD P LCD logic and driver power(3.3V)
13 LCD_VDD P LCD logic and driver power(3.3V)
14 NC I Reserved for LCD manufacturer’s use
15 LCD_GND P LCD logic and driver ground
16 LCD_GND P LCD logic and driver ground
17 HPD O HPD signal pin
18 LED-1 P NC
19 LED-2 P NC
20 LED-3 P NC
21 LED-4 P NC
22 BL_ENABLE I NC
23 BL_PWM_DIM I NC
24 NC - Reserved for LCD manufacturer’s use
25 NC - Reserved for LCD manufacturer’s use
26 BL_PWR P NC
27 BL_PWR P NC
28 BL_PWR P NC
29 BL_PWR P NC
30 NC - Reserved for LCD manufacturer’s use



Maximum Absolute Limit



Item Symbol Value Unit
Power supply voltage  VCC 0.3~4 V
Logic supply voltage Vsignal -0.3 - VCC V
Operating temperature Topr 0 to 50 °C
Storage temperature Tstg -10 to 60 °C



Backlight Electrical-optical Characteristics



Item Symbol MIN TYP MAX UNIT
Supply Voltage Vf 28 30 33 V
Supply Current If - 270 360 mA
Life Time - 30000 40000 - Hr



Optical Characteristics



Paramete Conditions Min. Typ. Max. Unit

Viewing Angle (CR>10)

Horizontal θL - 85 -

degree

    θ R - 85 -
  Vertical θT - 85 -
    θB - 85 -
Contrast Ratio Center 600 800 - -
Response Time Tr+Td - 25 35 ms

CF Color Chromaticity

(CIE1931)

Red x

Typ.

-0.03

0.642

Typ.

+0.03

-
  Red y   0.3078   -
  Green x   0.283   -
  Green y   0.594   -
  Blue x   0.142   -
  Blue y   0.149   -
  White x   0.303   -
  White y   0.329   -
NTSC ratio %   (45)   -

Center Luminance of white

YLI 500 600   cd/m2
White uniformity 13pt δW 75 80
