1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3

1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3
1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3

Large Image :  1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC190B-8922A-CT1
Payment & Shipping Terms:
Minimum Order Quantity: 3 units (Negotiable for sample orders)
Price: USD$4 – $5.00 / unit (FOB Shenzhen, based on order quantity)
Packaging Details: Export-ready carton box
Delivery Time: 1–5 weeks after order confirmation
Payment Terms: T/T 50% deposit, 50% before shipment
Supply Ability: 3,000,000 units / month

1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3

Description
Display Size: 1.9 Inch (48.26 Mm Diagonal) Resolution: 176 (H) × 320 (V) Pixels
Technology: IPS TFT (Normally Black) Interface: Dual-Mode (SPI + 8-bit Parallel 8080)
Driver IC: ST7789P3 (Supports 262K Colors) Brightness: 350 Cd/m2 (nits)
Operating Temp: -20℃ To +70℃ (Industrial Grade) Backlight: LED, 80mA Typ. | 40,000 Hrs Lifetime
Power Supply: Analog 2.5V-3.3V | Logic 1.65V-3.3V NTSC Color Gamut:: 55% (CIE 1931)
Touch Panel: Touch Panel: Optional (G+F Structure, I²C, CST816D IC) Compliance: REACH & RoHS Compliant & Halogen Free
Highlight:

1.9 inch IPS TFT LCD display

,

SPI parallel ST7789P3 LCD

,

176x320 resolution TFT screen

Industrial-Grade Performance for Demanding Applications

The SFTO190JY-7267A-CT is a 1.9-inch IPS TFT LCD module engineered for industrial controls, medical devices, and portable instrumentation. Featuring an ST7789P3 driver and IPS hard-screen technology, it delivers 178° wide viewing angles, 900:1 contrast ratio, and 55% NTSC color gamut – ensuring reliable visibility in extreme environments (-20°C to +70°C).



Key Differentiators for Design Engineers

(1) Dual-Interface Flexibility

  • Supports both SPI (4-wire) and 8-bit 8080 parallel interfaces for seamless integration with ARM Cortex-M/R, Raspberry Pi Pico, and other embedded platforms.

  • Dedicated constant-current backlight driver pins (LED+/LED-) extend lifespan to 40,000 hours (Page 8).

(2) Ruggedized Construction

  • Validated through -30°C~80°C storage, ±8kV ESD protection, and 60cm drop tests (IEC 60068-2-32 compliant).

  • Optional chemically strengthened cover glass (≥6H hardness) with ≥85% light transmission (Page 5).

(3) Precision Optical Performance

  • Active area: 22.7 × 42.72 mm | Pixel pitch: 0.1335 mm | RGB vertical stripe matrix.

  • Factory-calibrated white point (CIE 1931 x=0.302/y=0.325) for medical/industrial color accuracy (Page 12).



Engineering Resources

  • Pre-tested initialization code for STM32/Arduino platforms (Page 18-19).

  • Mechanical drawings, timing diagrams, and optical test reports (BM-7 standard) available.

  • Optional multi-touch solution (CST816D IC via I²C) with OCA lamination.



EU/US Compliance Assurance

◾ Meets RoHS (EU 2015/863), REACH SVHC, and Halogen-Free directives.
◾ Packaging complies with EU 2025/40 recyclability mandates (effective 2026).





Mechanical Dimensions

1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 0



Product Information



Features Details Unit
Display Size(Diagonal) 1.9’’ Inch
LCD type IPS TFT -
Display Mode Normally black -
Resolution 170 RGB(H) x 320(V) Pixels
Viewing Direction ALL -
Module size 25(W) x 49.33(H) x 2.11(T) mm
Active Area 22.7(W) x 42.72(H) mm
Pixel Size 0.1335(W) x 0.1335(H) mm
Color arrangement RGB Vtertical stripe -
Interface SPI/Parallel -
Display Colors 262K -
Driver IC ST7789P3 -
With or Without Touch Panel Without -
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Surface brightness 350 cd/m2





CTP Specification



Category Parameter Specification

General

Structure Cover Glass + ITO Sensor Film (G+F)
  Outline dimension 31.0 (H) x 55.33 (V) x 3.64 (T) mm
  Cover Lens Strengthening Chemically Strengthened
  Cover Lens Surface Hardness ≥6H (Pencil Hardness)
  Light Transmission Rate ≥85%
  Operation Temperature -20℃ ~ +70℃, ≤90% RH
  Storage Temperature -30℃ ~ +80℃, ≤90% RH

Electrical

Interface I2C
  Touch IC CST816D
  Power Supply Voltage (VDD) 2.8V ~ 3.3V
  Host Resistance (SDA/SCL) Configurable on Main-board
  Touch Point Single Touch, multi-touch optional
Environmental Operating Conditions Customizable

Surface

Properties

Surface Ink Clear type
  Surface Treatment Customizable
  LCD-TP Lamination AIR, OCA Bonding Optional
Compliance Material Standards RoHS & Halogen-Free Compliant





Asolute Maximum Ratings



Item Symbol Min. Max. Unit
Logic Supply Voltage IOVCC -0.3 4.0 V
Analog Supply Voltage VCC -0.3 4.6 V
Operating temperature Top -20 70
Storage temperature Tst -30 80





DC Characteristics



Item Symbol Min. Typ. Max. Unit
Analog Supply Voltage VCC 2.5 2.75 3.3 V
Logic Supply Voltage IOVCC 1.65 1.8 3.3 V
Input high voltage VIN 0.7*IOVCC - IOVCC V
Input low voltage VIL GND - 0.3*IOVCC V
Output high voltage VOH 0.8*IOVCC - IOVCC V
Output low voltage VOL GND - 0.2*IOVCC V
Input Current IIN - 20 - mA





Backlight Characteristic



Item Symbol Min. Typ. Max. Unit
Forward Voltage VF - 3.2 - V
Forward Current IF - 80 - mA
Power dissipation Pd - 256 - mW
LED Life Time(25 ºC) - 30000 40000 - Hrs





Pins Definitions



Pin.No Symbol Description
1 GND Ground
2 VCC Power supply for Analog
3 IM2



IM1 IM2 Interface Mode
0 0 80-8bit
1 1 4-line



4 IM1
5 RESET LCM Reset pin
6 CS Chip select pin (“Low” enable)
7 DC/SCL Serial clock pin.
8 WR/RS Register select pin.
9 RD Read enable in 8080 MCU parallel interface.
10 SDA SPI interface input/output pin
11-18 DB0-DB7 MCU parallel interface data bus.
19 SDO SPI interface output pin.
20 LED+ Backlit anode
21-24 LED- Backlit cathode
25 GND Ground
26-29 NC NC
30 GND Ground

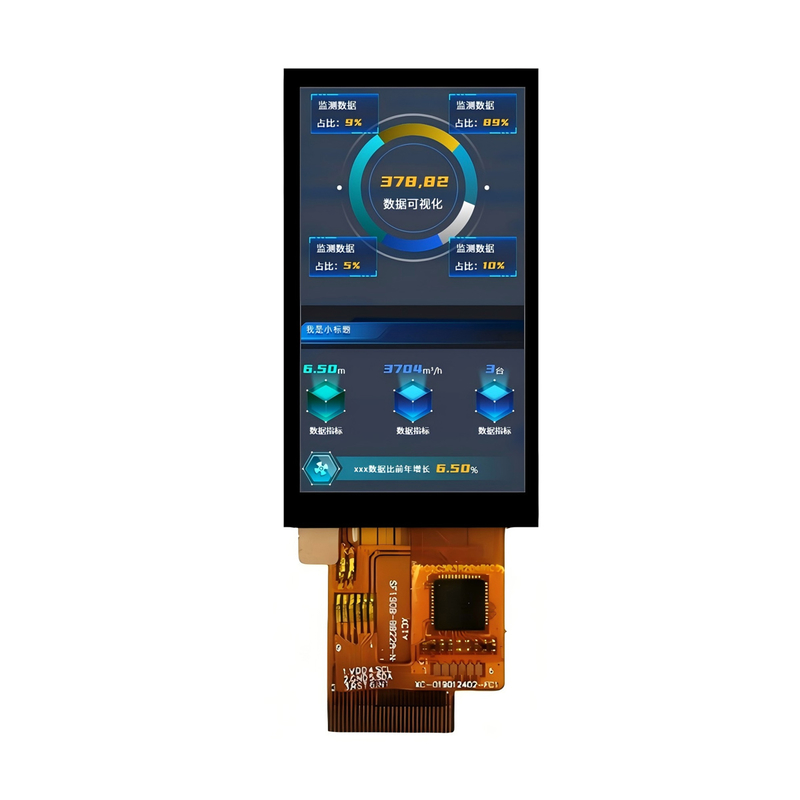

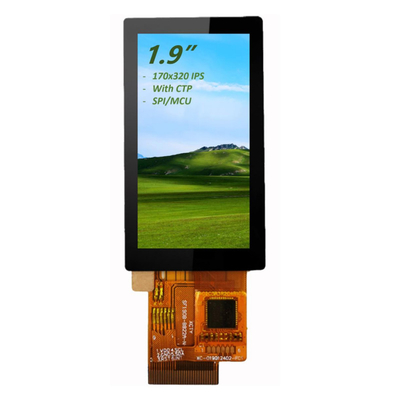

Product Image

1.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 11.9 Inch IPS TFT LCD Display 176x320 SPI Parallel ST7789P3 2
